LMA1010GC20: DescriptionMultiplier Accumulator/Summer, 16-Bit, CMOS, CPGA68, CERAMIC, PGA-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size592KB，7 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

LMA1010GC20 Overview

Multiplier Accumulator/Summer, 16-Bit, CMOS, CPGA68, CERAMIC, PGA-68

LMA1010GC20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
Parts packaging code	PGA
package instruction	PGA, PGA68,11X11
Contacts	68
Reach Compliance Code	unknown
boundary scan	NO
External data bus width	16
JESD-30 code	S-CPGA-P68
JESD-609 code	e0
length	29.4386 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	35
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA68,11X11
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.81 mm
Maximum slew rate	25 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	29.4386 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER

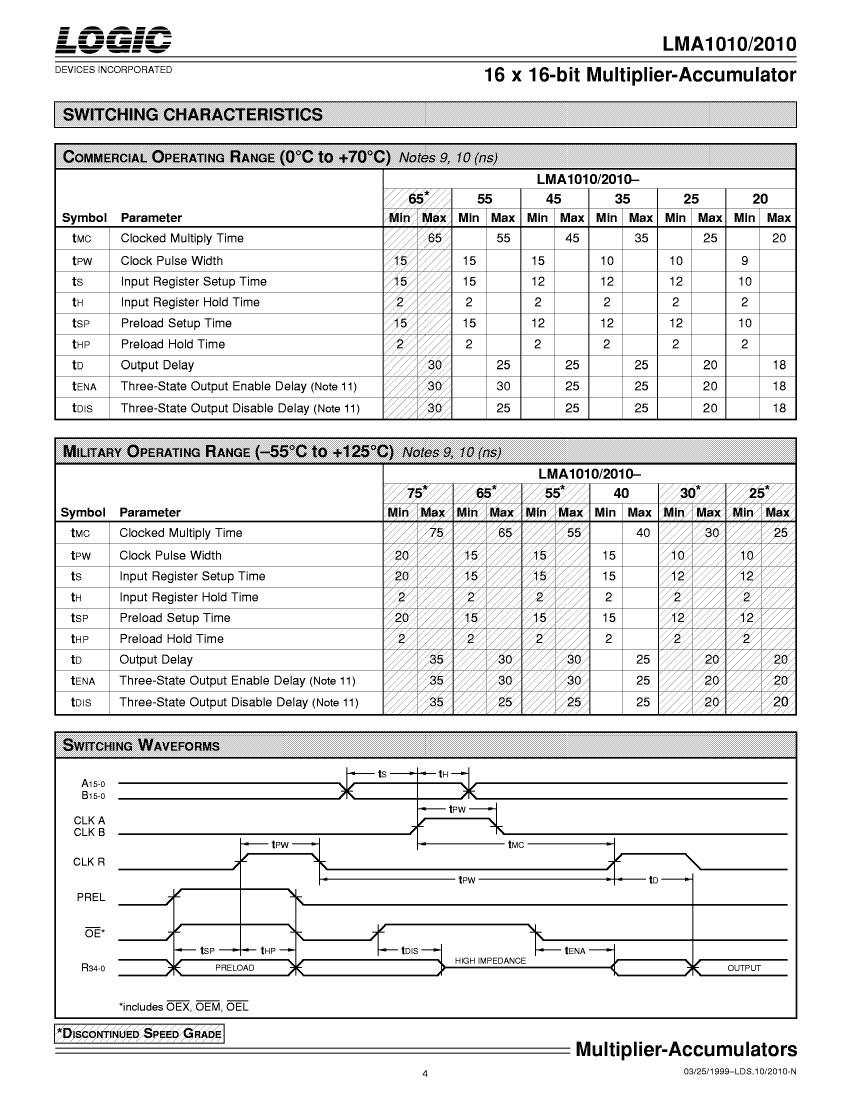

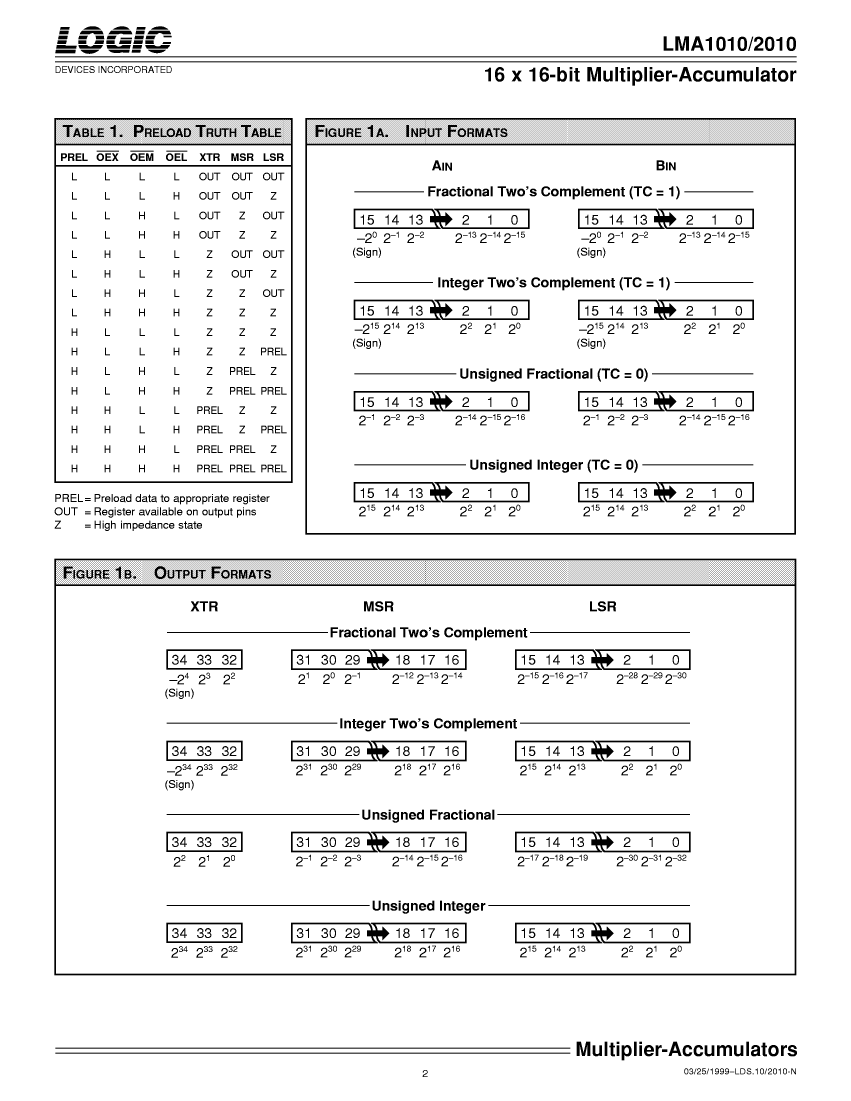

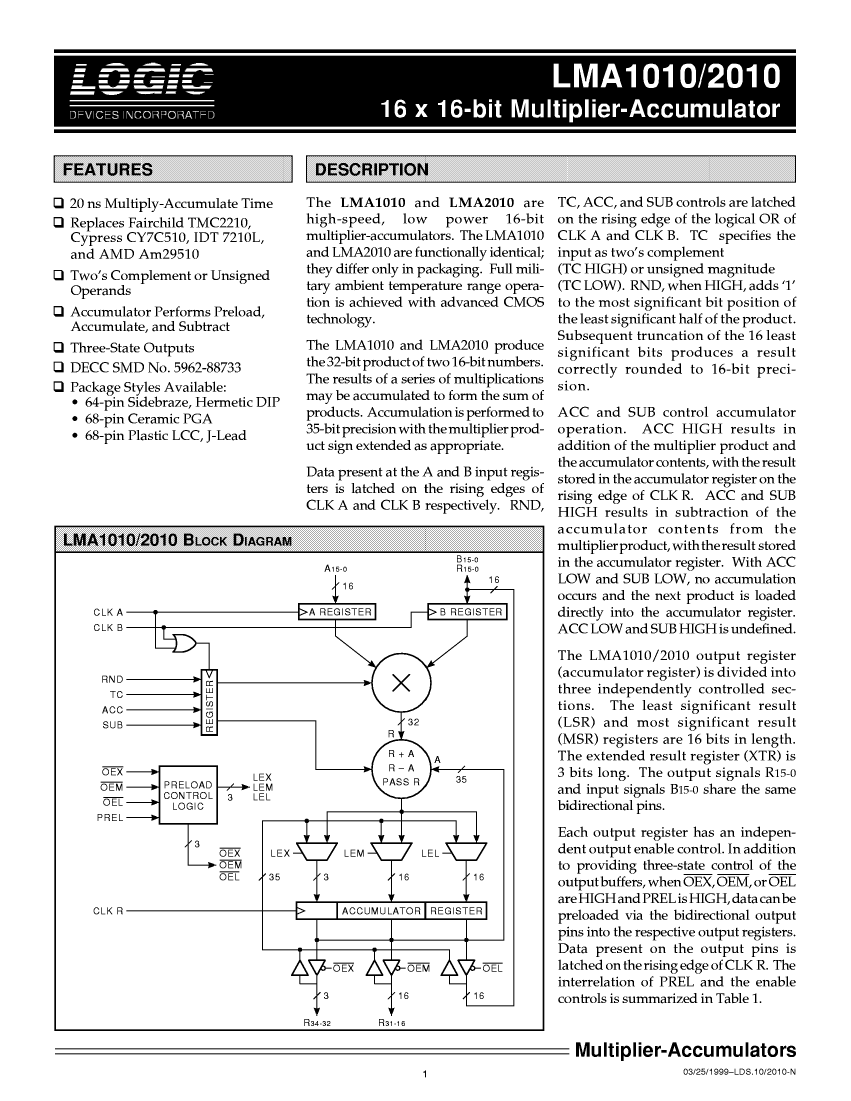

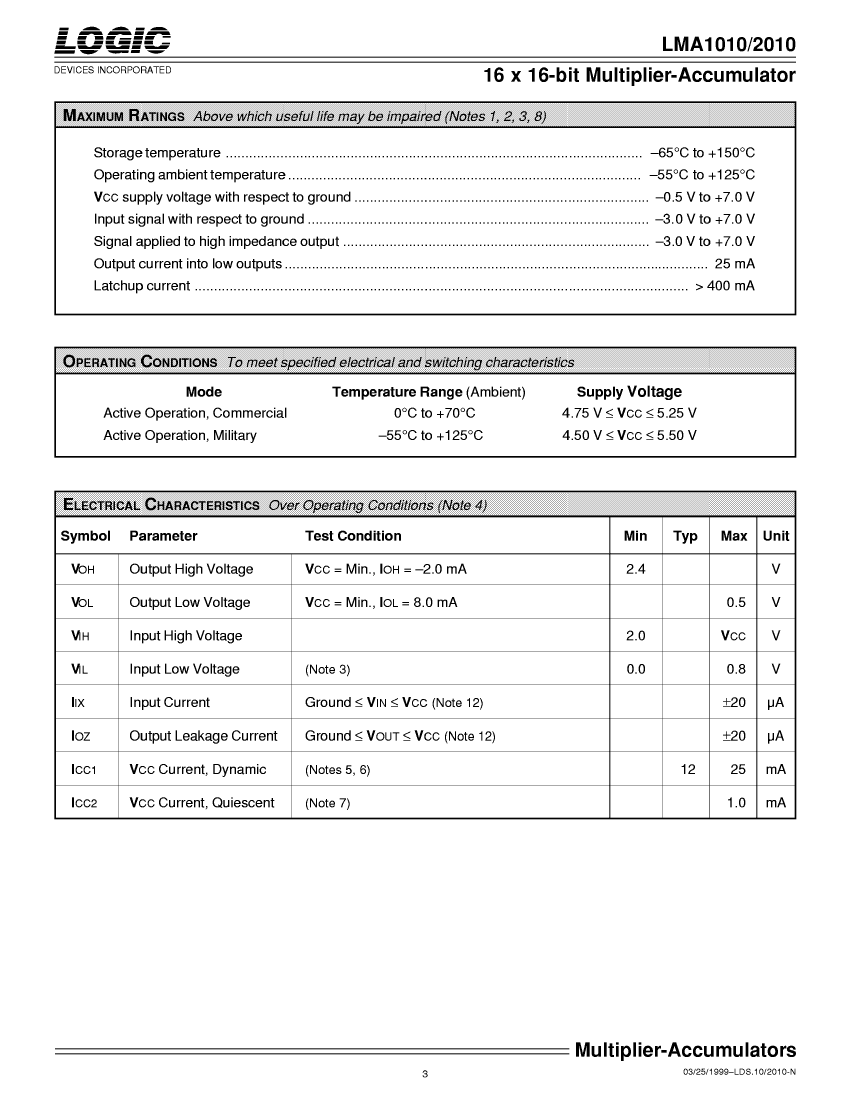

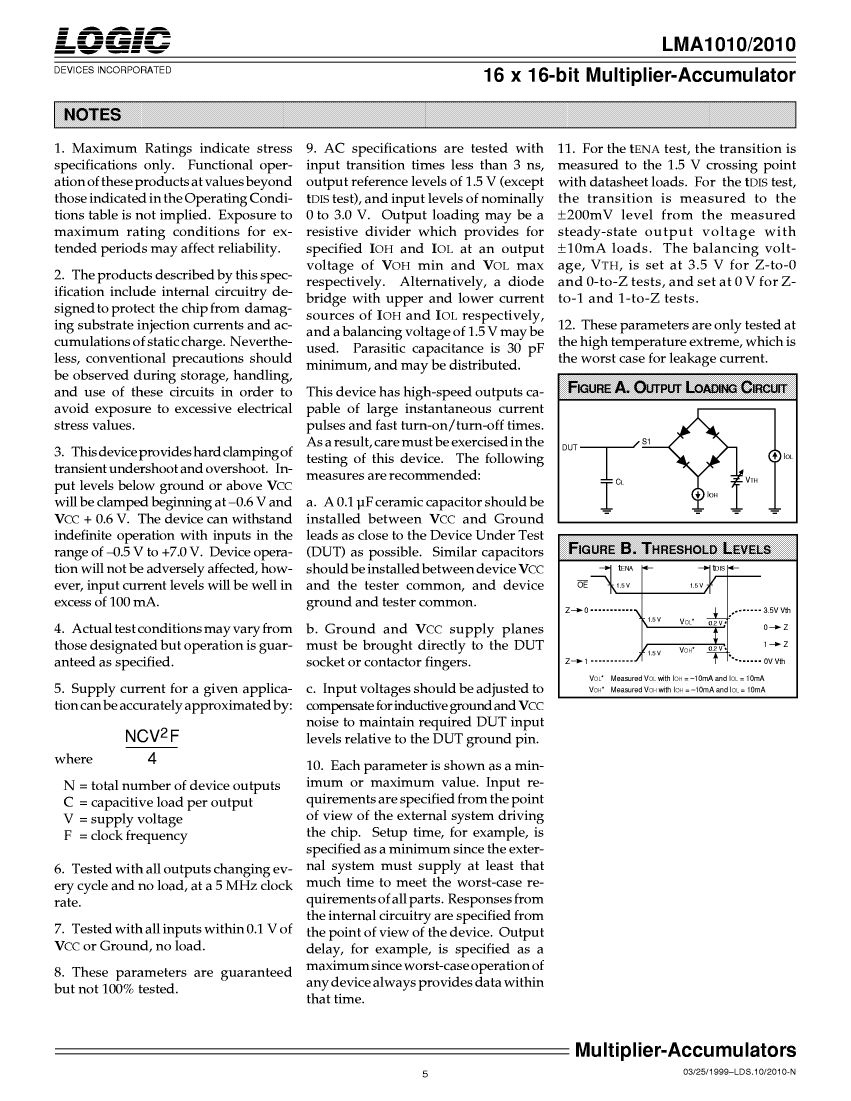

Preview

Download Datasheet

View All

LMA1010GC20 Related Products

	LMA1010GC20	LMA1010GMB40	LMA1010GC45	LMA1010DC45	LMA1010DC55
Description	Multiplier Accumulator/Summer, 16-Bit, CMOS, CPGA68, CERAMIC, PGA-68	Multiplier Accumulator/Summer, 16-Bit, CMOS, CPGA68, CERAMIC, PGA-68	Multiplier Accumulator/Summer, 16-Bit, CMOS, CPGA68, CERAMIC, PGA-68	Multiplier Accumulator/Summer, 16-Bit, CMOS, CDIP64, SIDE BRAZED, HERMETIC SEALED, DIP-64	Multiplier Accumulator/Summer, 16-Bit, CMOS, CDIP64, SIDE BRAZED, HERMETIC SEALED, DIP-64
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices	LOGIC Devices
Parts packaging code	PGA	PGA	PGA	DIP	DIP
package instruction	PGA, PGA68,11X11	PGA, PGA68,11X11	PGA, PGA68,11X11	DIP, DIP64,.9	DIP, DIP64,.9
Contacts	68	68	68	64	64
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
boundary scan	NO	NO	NO	NO	NO
External data bus width	16	16	16	16	16
JESD-30 code	S-CPGA-P68	S-CPGA-P68	S-CPGA-P68	R-CDIP-T64	R-CDIP-T64
JESD-609 code	e0	e0	e0	e0	e0
length	29.4386 mm	29.4386 mm	29.4386 mm	81.28 mm	81.28 mm
low power mode	NO	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3	3
Number of terminals	68	68	68	64	64
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C
Output data bus width	35	35	35	35	35
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	DIP	DIP
Encapsulate equivalent code	PGA68,11X11	PGA68,11X11	PGA68,11X11	DIP64,.9	DIP64,.9
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Maximum slew rate	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	DUAL	DUAL
width	29.4386 mm	29.4386 mm	29.4386 mm	22.86 mm	22.86 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
Other features	-	-	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 16 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
