MC8641HX1500KE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC8641HX1500KE

MC8641HX1500KE: Description32-BIT, 166.66 MHz, MICROPROCESSOR, CBGA1023, 33 X 33 MM, CERAMIC, BGA-1023; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，129 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

MC8641HX1500KE Overview

32-BIT, 166.66 MHz, MICROPROCESSOR, CBGA1023, 33 X 33 MM, CERAMIC, BGA-1023

MC8641HX1500KE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	NXP
Parts packaging code	BGA
package instruction	33 X 33 MM, CERAMIC, BGA-1023
Contacts	1023
Reach Compliance Code	compliant
ECCN code	3A001.A.3
Address bus width	32
bit size	32
boundary scan	YES
maximum clock frequency	1500 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	YES
JESD-30 code	S-CBGA-B1023
length	33 mm
low power mode	YES
Humidity sensitivity level	1
Number of terminals	1023
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	BGA
Encapsulate equivalent code	BGA1023,32X32,40
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
power supply	1.1,1.8/2.5,2.5/3.3 V
Certification status	Not Qualified
Maximum seat height	2.97 mm
speed	166.66 MHz
Maximum supply voltage	1.15 V
Minimum supply voltage	1.05 V
Nominal supply voltage	1.1 V
surface mount	YES
technology	CMOS
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	33 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

Preview

Download Datasheet

View All

Freescale Semiconductor

Technical Data

Document Number: MPC8641D

Rev. 3, 05/2014

MPC8641 and MPC8641D

Integrated Host Processor

Hardware Specifications

Overview

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . 6

Power Characteristics . . . . . . . . . . . . . . . . . . . . . . . . 14

Input Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

RESET Initialization . . . . . . . . . . . . . . . . . . . . . . . . . 20

DDR and DDR2 SDRAM . . . . . . . . . . . . . . . . . . . . . 21

DUART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ethernet: Enhanced Three-Speed Ethernet (eTSEC),

MII Management . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Ethernet Management Interface Electrical

Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Local Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

High-Speed Serial Interfaces (HSSI) . . . . . . . . . . . . 59

PCI Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Serial RapidIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Signal Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Thermal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

System Design Information . . . . . . . . . . . . . . . . . . 116

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . 126

Document Revision History . . . . . . . . . . . . . . . . . . 128

The MPC8641 processor family integrates either one or two

Power Architecture® e600 processor cores with system

logic required for networking, storage, wireless

infrastructure, and general-purpose embedded applications.

The MPC8641 integrates one e600 core while the

MPC8641D integrates two cores.

This section provides a high-level overview of the MPC8641

and MPC8641D features. When referring to the MPC8641

throughout the document, the functionality described applies

to both the MPC8641 and the MPC8641D. Any differences

specific to the MPC8641D are noted.

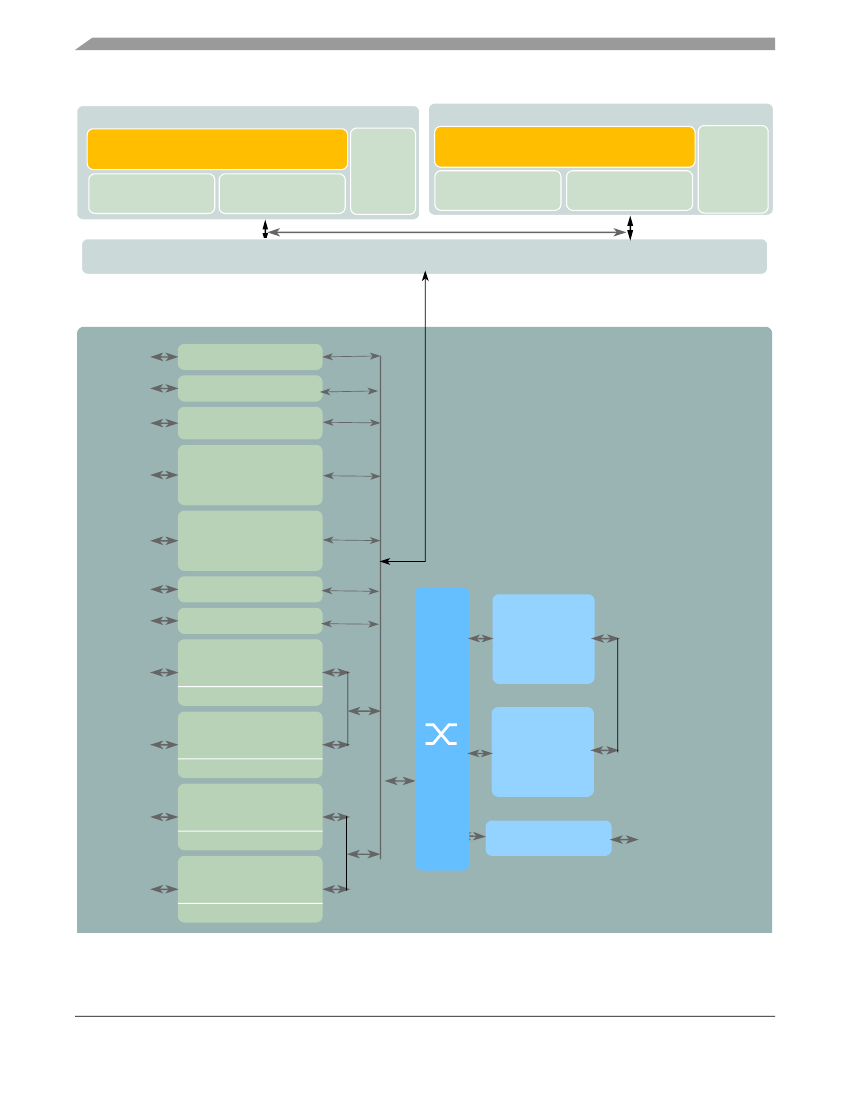

Figure 1

shows the major functional units within the

MPC8641 and MPC8641D. The major difference between

the MPC8641 and MPC8641D is that there are two cores on

the MPC8641D.

Freescale reserves the right to change the detail specifications as may be required

to permit improvements in the design of its products.
