ATS143B-1INS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ATS143B-1INS

ATS143B-1INS: DescriptionParallel - Fundamental Quartz Crystal, 14.31818MHz Nom, HC-49/US, 2 PIN; CategoryPassive components Crystal/resonator; File Size179KB，6 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

ATS143B-1INS Overview

Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, HC-49/US, 2 PIN

ATS143B-1INS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
package instruction	HC-49/US, 2 PIN
Reach Compliance Code	compliant
Other features	AT-CUT; AMMO PACK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	14.31818 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C

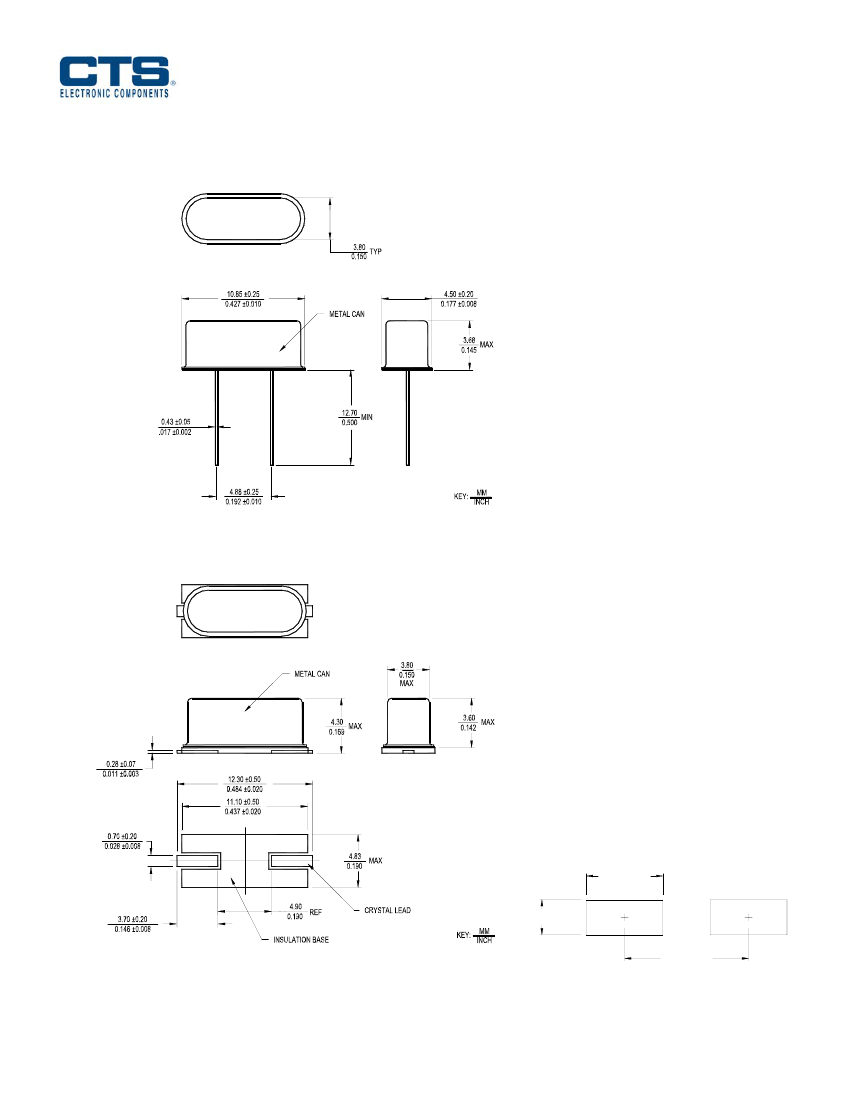

physical size	L10.85XB4.5XH3.68 (mm)/L0.427XB0.177XH0.145 (inch)
Series resistance	40 Ω
surface mount	NO
Terminal surface	Tin/Silver/Copper - with Nickel barrier

Preview

Download Datasheet

View All

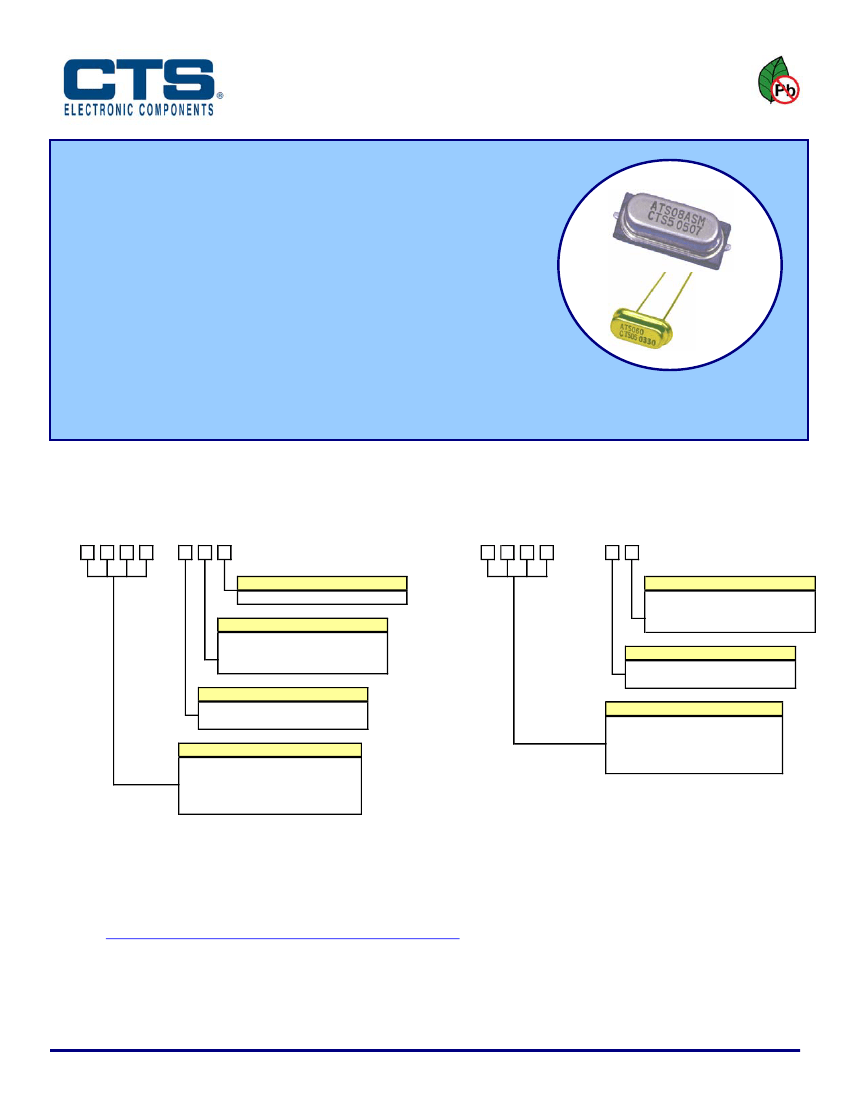

ATS/ATS-SM Series

Quartz Crystal

•

FEATURES

Standard HC-49/US (thru hole) and HC-49/US-SM (surface mount) Packages

Stable Frequency Over Temperature and Drive Level

Fundamental and 3

Overtone Crystals

Frequency Range 3.2 – 64 MHz

Frequency Tolerance, ±30 ppm Standard

Frequency Stability, ±50 ppm Standard

Operating Temperature, –20°C to +70°C Standard, -40°C to +85°C Available

Tape & Reel Packaging Available

RoHS/Green Compliant (6/6)

APPLICATIONS

The ATS/ATS-SM crystal series offers excellent long-term stability and reliability in a proven resistance-weld metal

package. The excellent shock performance makes it suitable for microprocessor, telecommunication, industrial,

consumer electronics and networking applications.

ORDERING INFORMATION

ATS

PRODUCT OPTIONS

INS - Insulation Spacer

TEMPERATURE RANGE OPTIONS

Blank - Standard, -20°C to +70°C

E - Extended Temperature Range,

-40°C to +85°C

PACKAGING OPTIONS

Blank - Bulk

1 - Radial Taping (Ammopak)

FREQUENCY

Product Frequency/Load Code.

[3 to 4 digits]

Refer to Standard Product Part Numbers

tables on Pages 2 and 3.

* Standard packaging is bulk in a bag.

ATS-SM

ATS

SM -

TEMPERATURE RANGE OPTIONS

Blank - Standard, -20°C to +70°C

E - Extended Temperature Range,

-40°C to +85°C

PACKAGING OPTIONS

Blank - Bulk

1 - Tape and Reel

FREQUENCY

Product Frequency/Load Code.

[3 to 4 digits]

Refer to Standard Product Part Numbers

tables on Pages 2 and 3.

** Standard packaging is tape and reel.

CTS Distributors may use -T for tape and reel indicator.

Non-Standard Ordering Options

Custom requirements may be available upon request. Use form C052 to detail non-standard parameters.

(http://www.ctscorp.com/components/CTS_Crystal_Specifying_Form.xls)

Contact your local CTS Representative or CTS Customer Service for assistance.

Document No. 008-0309-0

Page 1- 6

Rev. I

www.ctscorp.com
