ZTX756L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZTX756L

ZTX756L: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size134KB，6 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZTX756L Overview

Small Signal Bipolar Transistor, 0.5A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

ZTX756L Parametric

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	TO-92
package instruction	PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	200 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-PSIP-W3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	30 MHz

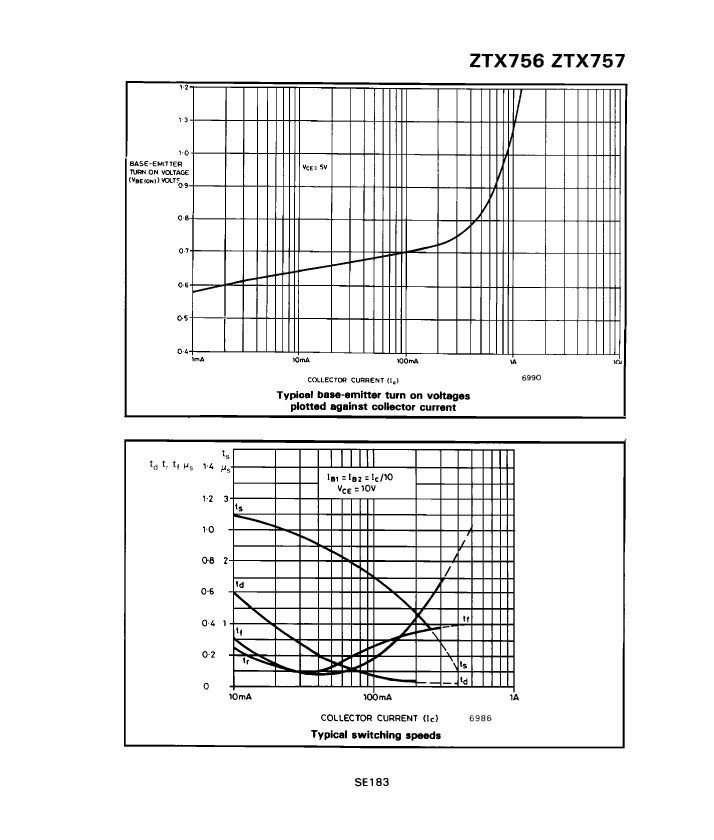

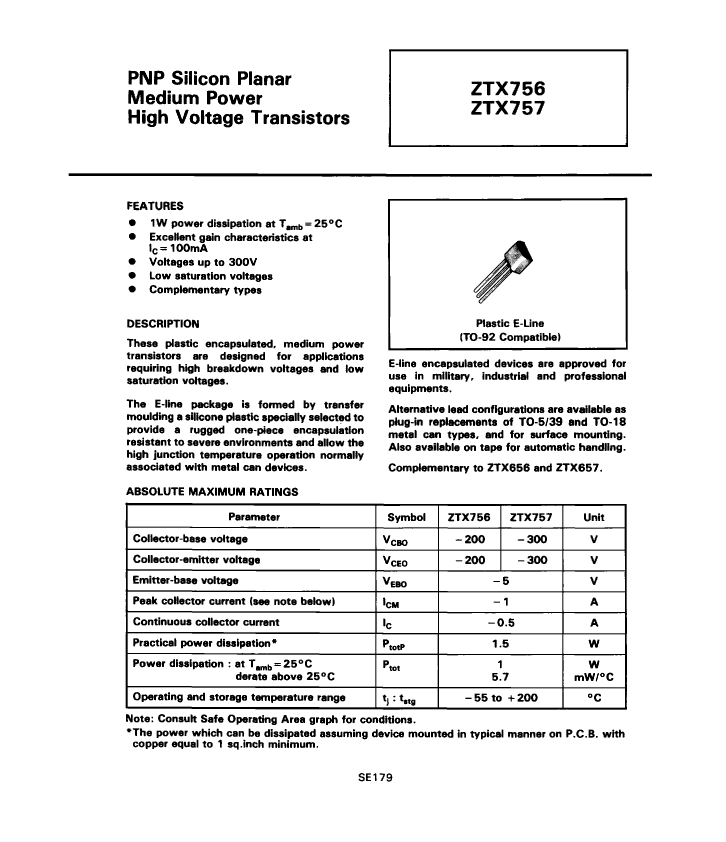

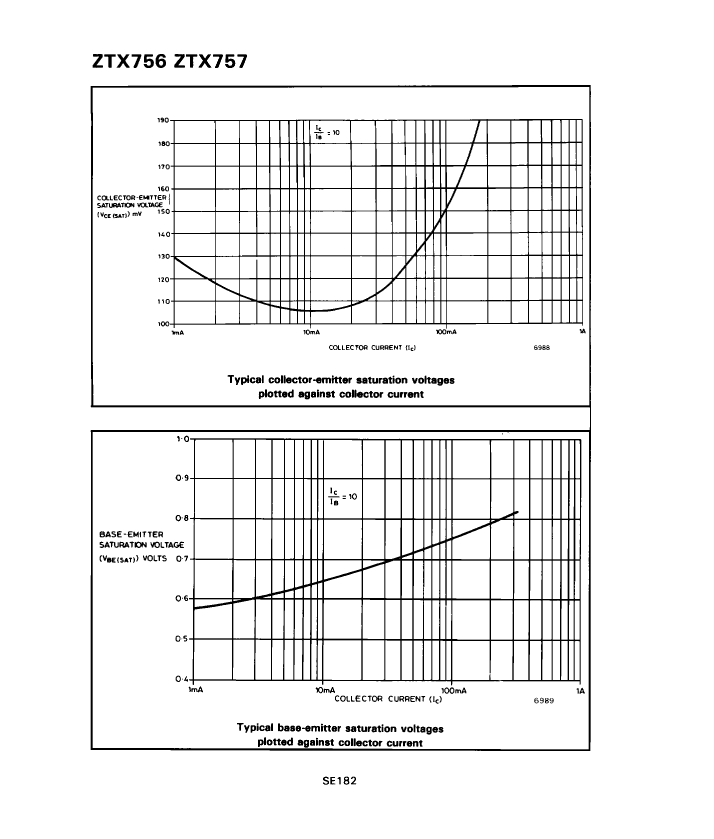

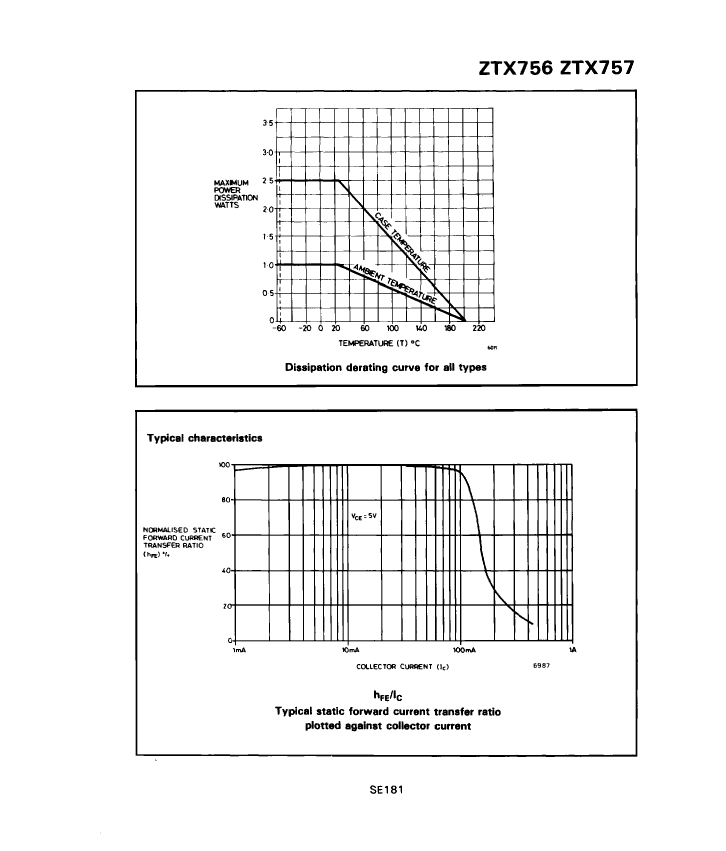

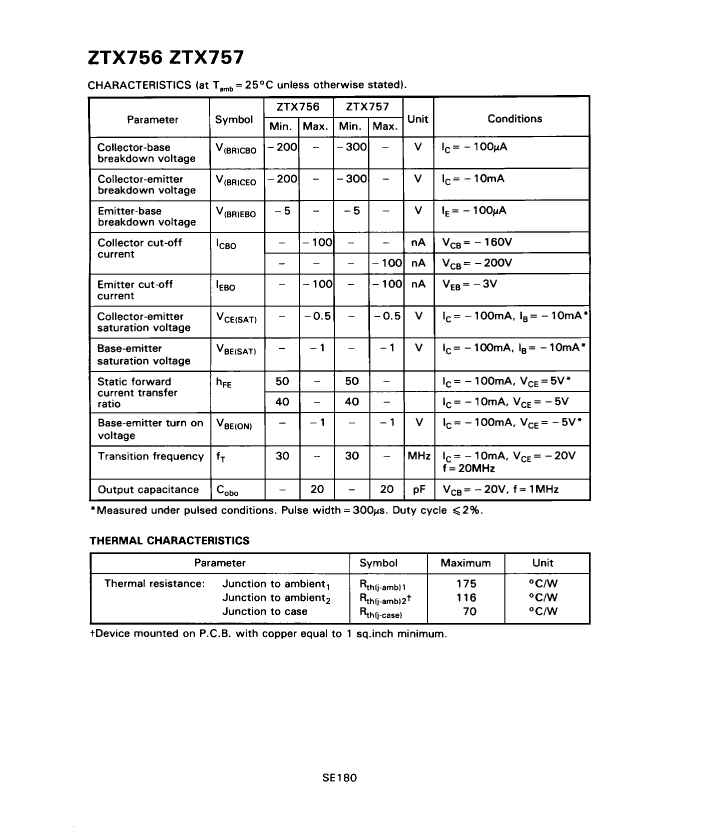

ZTX756L Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZTX756L Related Products

	ZTX756L	ZTX757M1	ZTX757K	ZTX756K	ZTX757L	ZTX756M1	ZTX757Q
Description	Small Signal Bipolar Transistor, 0.5A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.5A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.5A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.5A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.5A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.5A I(C), 200V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.5A I(C), 300V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Parts packaging code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
package instruction	PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-W3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	200 V	300 V	300 V	200 V	300 V	200 V	300 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50	50	50	50	50	50
JESD-30 code	R-PSIP-W3	R-PSSO-G3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSSO-G3	R-PSIP-W3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	NO	YES	NO
Terminal form	WIRE	GULL WING	WIRE	WIRE	WIRE	GULL WING	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz
transistor applications	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING
JESD-609 code	-	e3	e3	-	e3	-	e3
Humidity sensitivity level	-	1	1	-	1	-	1
Peak Reflow Temperature (Celsius)	-	260	260	-	260	-	260
Terminal surface	-	MATTE TIN	MATTE TIN	-	MATTE TIN	-	MATTE TIN
Maximum time at peak reflow temperature	-	40	40	-	40	-	40
