LFXTAL056808BULK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL056808BULK

Preview

LFXTAL056808BULK: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Nom; CategoryPassive components Crystal/resonator; File Size279KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric Compare View All

LFXTAL056808BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL056808BULK	-	-	View	Buy Now

LFXTAL056808BULK Overview

Parallel - Fundamental Quartz Crystal, 20MHz Nom

LFXTAL056808BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	IQD Frequency Products
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

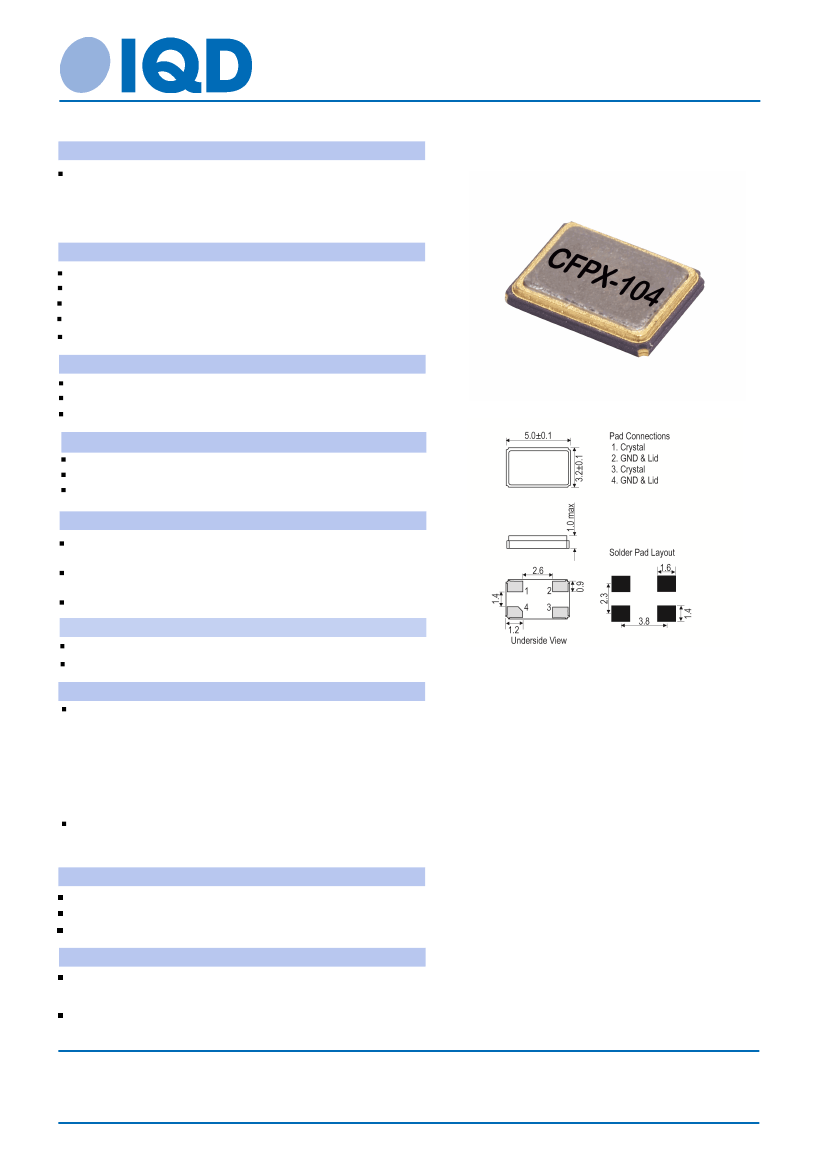

Quartz Crystal Specification

CFPX-104

ISSUE 9; September 2019

Description

Standard 5x3.2mm SMD crystal with four pads.

Ceramic package with a seam sealed metal lid, hermetically

sealed.

Please see our IQXC-49 for a two pad alternative.

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Ageing

Electrical Parameters

8.0MHz to 133.0MHz

±10.00ppm to ±50.00ppm

@ 25°C

±10.00ppm to ±50.00ppm

±3ppm max per year @ 25°C

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

Operating Temperature Ranges

10.0pF to 30.0pF

7pF max

100µW max

Outline (mm)

-10 to 60°C

-20 to 70°C

-40 to 85°C

Environmental Parameters

Shock: 1500G, 0.5ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins in

3 mutually perpendicular planes, 4 cycles

Storage Temperature Range: -55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow

Ordering Information

Au 0.3um~1.0um

260degC 3s

Frequency*

Model*

Frequency Tolerance (@ 25°C)*

Frequency Stability (over operating temperature range)*

Operating Temperature Range*

Load Capacitance*

Overtone*

(*minimum required)

Example

10.0MHz CFPX-104

50/50/–40 to 85C/10 FUND

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

Pack Style: Reel

Pack Size: 1,000

In tape, cut from a reel

Tape & reel in accordance with EIA-481-D

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 19 Sep 19 12:44 using Model Data Sheet V1.2550

LFXTAL056808BULK Related Products

	LFXTAL056808BULK	LFXTAL059539BULK	LFXTAL033643BULK	LFXTAL033265BULK
Description	Parallel - Fundamental Quartz Crystal, 20MHz Nom	Parallel - Fundamental Quartz Crystal, 48MHz Nom	Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom	Parallel - Fundamental Quartz Crystal
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN
Reach Compliance Code	compliant	compliant	unknown	compliant
Other features	BULK	BULK	BULK	BULK
Ageing	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW	100 µW
frequency stability	0.003%	0.003%	0.005%	0.005%
frequency tolerance	20 ppm	20 ppm	50 ppm	50 ppm
load capacitance	18 pF	18 pF	18 pF	18 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	20 MHz	48 MHz	14.31818 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	60 °C	60 °C
Minimum operating temperature	-40 °C	-40 °C	-10 °C	-10 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	50 Ω	20 Ω	70 Ω	50 Ω
surface mount	YES	YES	YES	YES
Base Number Matches	-	1	1	1
