SS24-T3-LF

Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 40V V(RRM), Silicon, DO-214AA, SMB, 2 PIN
CategoryDiscrete semiconductor    diode
File Size41KB，4 Pages
ManufacturerWon-Top Electronics Co., Ltd.
Websitehttps://www.wontop.com/
Download Datasheet Parametric Compare View All

SS24-T3-LF Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 40V V(RRM), Silicon, DO-214AA, SMB, 2 PIN

SS24-T3-LF Parametric

Parameter NameAttribute value
MakerWon-Top Electronics Co., Ltd.
package instructionSMB, 2 PIN
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresFREE WHEELING DIODE, LOW POWER LOSS
applicationFAST RECOVERY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.5 V
JEDEC-95 codeDO-214AA
JESD-30 codeR-PDSO-C2
Maximum non-repetitive peak forward current50 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum repetitive peak reverse voltage40 V
Maximum reverse current500 µA
surface mountYES
technologySCHOTTKY
Terminal formC BEND
Terminal locationDUAL

SS24-T3-LF Preview

®
SS22 – SS210
2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE
WON-TOP ELECTRONICS
Pb
Features
Low Forward Voltage
Epitaxial Construction with Oxide Passivation
Guard Ring for Transient and ESD Protection
Surge Overload Rating to 50A Peak
A
Low Power Loss
Fast Switching
Ideally Suited for Use in High Frequency
SMPS, Inverters and As Free Wheeling Diodes
B
D
F
C
H
E
G
Mechanical Data
Case: SMB/DO-214AA, Molded Plastic
Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026
Polarity: Cathode Band or Cathode Notch
Marking: Type Number
Weight: 0.093 grams (approx.)
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
SMB/DO-214AA
Dim
Min
Max
A
B
C
D
E
F
G
H
3.30
4.06
1.91
0.152
5.08
2.13
0.051
0.76
3.94
4.70
2.11
0.305
5.59
2.44
0.203
1.27
All Dimensions in mm
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed on
Rated Load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 2.0A
@T
J
= 25°C
@T
J
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
C
J
R
θJA
R
θJL
T
J
T
STG
SS22
SS23
SS24
SS25
SS26
SS28
SS29 SS210
Unit
20
14
30
21
40
28
50
35
2.0
50
60
42
80
56
90
63
100
70
V
V
A
A
0.50
0.70
0.5
10
150
80
24
0.85
V
mA
Typical Junction Capacitance (Note 2)
Thermal Resistance, Junction to Ambient (Note 1)
Thermal Resistance, Junction to Lead (Note 1)
Operating Temperature Range
Storage Temperature Range
100
pF
°C/W
-55 to +125
-55 to +150
-55 to +150
°C
°C
Note: 1. Mounted on FR-4 PCB with 8.0 x 8.0mm copper pads.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
SS22 – SS210
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
WON-TOP ELECTRONICS
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
2.5
10
T
A
= 25°C
2.0
SS25 – SS210
1.0
SS25 – SS26
1.5
SS22 – SS24
SS22 – SS24
1.0
SS28 – SS210
0.1
0.5
Resistive or
Inductive Load
Pulse Width = 300µs
1% Duty Cycle
0
0
15
30 45 60 75 90 105 120 135 150
T
L
, LEAD TEMPERATURE (°C)

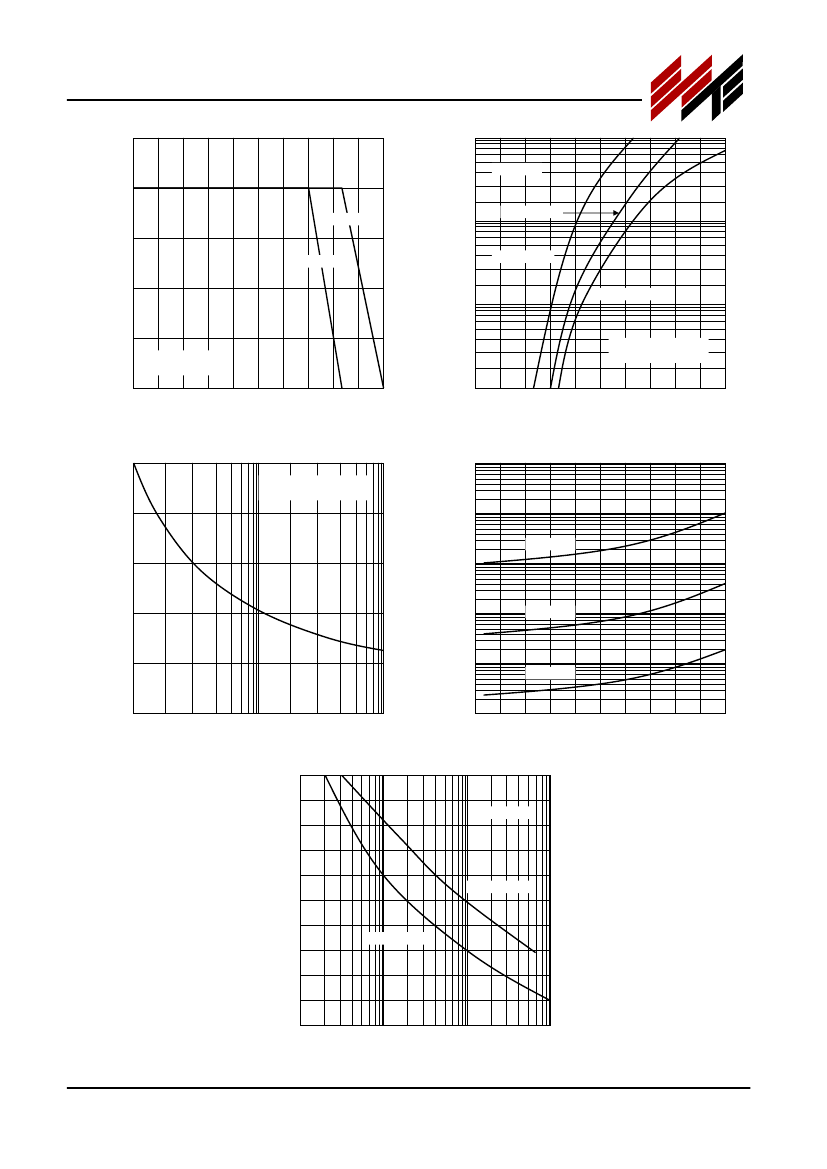

Fig. 1 Forward Current Derating Curve
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
0.01
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
50
Single Half-Sine-Wave
JEDEC Method
100
40
10
T
J
= 125°C
30
1.0
20
0.1
T
J
= 75°C
10
0.01
T
J
= 25°C
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Forward Surge Current Derating Curve
250
C
J
, JUNCTION CAPACITANCE (pF)
0.001
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
f = 1MHz
200
150
SS22 – SS26
100
SS28 – SS210
50
0
0.1
1
10
V
R
, DC REVERSE VOLTAGE (V)
Fig. 5 Typical Junction Capacitance
100
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
SS22 – SS210
WON-TOP ELECTRONICS
MARKING INFORMATION
RECOMMENDED FOOTPRINT
0.050 MIN
(1.27 MIN)
SS2x
Cathode
SS2x
x
= Polarity Band
= Device Number
= 2, 3, 4, 5, 6, 8, 9 or 10
0.106 MAX
(2.69 MAX)
0.082 MIN
(2.10 MIN)
inches(mm)
PACKAGING INFORMATION
TAPE & REEL
Direction of Unreeling
8mm
330mm
12mm
4mm
12mm
Product ID Label
1.6mm
Reel Diameter
(mm)
330
Quantity
(PCS)
3,000
Inner Box Size
L x W x H (mm)
340 x 337 x 45
Quantity
(PCS)
6,000
Carton Size
L x W x H (mm)
370 x 370 x 420
Quantity
(PCS)
48,000
Approx. Gross Weight
(KG)
14.0
Note:
1. Paper reel, white or gray color.
2. Components are packed in accordance with EIA standard 481-1 and 481-2.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
®
SS22 – SS210
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
SS22-T3
SS23-T3
SS24-T3
SS25-T3
SS26-T3
SS28-T3
SS29-T3
SS210-T3
1.
2.
Package Type
SMB
SMB
SMB
SMB
SMB
SMB
SMB
SMB
Shipping Quantity
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, SS22-T3-LF.
WON-TOP ELECTRONICS and
are registered trademarks of Won-Top Electronics Co., Ltd (WTE). WTE has checked all information carefully and
believes it to be correct and accurate. However, WTE cannot assume any responsibility for inaccuracies. Furthermore, this information does not give the
purchaser of semiconductor devices any license under patent rights to manufacturer. WTE reserves the right to change any or all information herein
without further notice.
WARNING:
DO NOT USE IN LIFE SUPPORT EQUIPMENT. WTE power semiconductor products are not authorized for use as critical components in life
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road,
Chine Chen Dist., Kaohsiung 806, Taiwan
Phone:
886-7-822-5408 or 886-7-822-5410
Fax:
886-7-822-5417
Email:
sales@wontop.com
Internet:
http://www.wontop.com
We power your everyday.
www.wontop.com
4
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SS24-T3-LF Related Products

SS24-T3-LF SS25-T3-LF SS25-T3 SS24-T3 SS26-T3 SS26-T3-LF SS210-T3 SS29-T3 SS23-T3-LF SS29-T3-LF
Description Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 40V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 50V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 40V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 60V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 60V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 90V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 30V V(RRM), Silicon, DO-214AA, SMB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 2A, 90V V(RRM), Silicon, DO-214AA, SMB, 2 PIN
Maker Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd. Won-Top Electronics Co., Ltd.
package instruction SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN SMB, 2 PIN
Reach Compliance Code compliant compliant compliant compliant compliant compliant compli compli compli compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS FREE WHEELING DIODE, LOW POWER LOSS
application FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY FAST RECOVERY
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.5 V 0.7 V 0.7 V 0.5 V 0.7 V 0.7 V 0.85 V 0.85 V 0.5 V 0.85 V
JEDEC-95 code DO-214AA DO-214AA DO-214AA DO-214AA DO-214AA DO-214AA DO-214AA DO-214AA DO-214AA DO-214AA
JESD-30 code R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2
Maximum non-repetitive peak forward current 50 A 50 A 50 A 50 A 50 A 50 A 50 A 50 A 50 A 50 A
Number of components 1 1 1 1 1 1 1 1 1 1
Phase 1 1 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 150 °C 150 °C 125 °C 150 °C 150 °C 150 °C 150 °C 125 °C 150 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output current 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Maximum repetitive peak reverse voltage 40 V 50 V 50 V 40 V 60 V 60 V 100 V 90 V 30 V 90 V
Maximum reverse current 500 µA 500 µA 500 µA 500 µA 500 µA 500 µA 500 µA 500 µA 500 µA 500 µA
surface mount YES YES YES YES YES YES YES YES YES YES
technology SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY
Terminal form C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND C BEND
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL

Recommended Resources

LED constant current source circuit diagram using LM317

RTD temperature measurement-voltage and current output circuit

TDA1905 power amplifier circuit diagram

A Xipu soft starter drives a three-state motor control circuit

5V_2.5A regulated power supply

STK457 power amplifier circuit

If the MMA8451Q chip does not need interrupts, what should the two pins be connected to?
If the MMA8451Q chip does not need interrupts, what should the two pins be connected to? What information should I read to get the answer? Thank you!...
火火山 51mcu
Notes on capacitor installation
When confirming the use and installation environment, capacitors used within the rated performance range specified in the product sample design manual should avoid use in the following situations: a. ...
Jacktang Analogue and Mixed Signal
A question about CCS not being able to use the MACH.H function
:tongue: When I first encountered this problem, I always thought it was because CCS was a compiler modified by TI using eclipse, and it was not professional. Facts have proved that I was not professio...
tangjianyuan Microcontroller MCU
Symantec CDC Recruitment Software Engineer
工作地点：北京清华科技园Job description：Windows Software Engineer.Responsibilities include, but are not limited to:* Create functional specifications based on marketing requirements.* Design and develop software ...
skyzxcvbnm Embedded System
Arduino Wireless Weather Forecast Station (Solar Powered)--EEWORLD University
Arduino Wireless Weather Forecast Station (Solar Powered) : https://training.eeworld.com.cn/course/2295...
chenyy Energy Infrastructure?
Urgent Question
I am working on GPRS for POS machines. But every time the first data is sent successfully, the second data transmission will always time out no matter how long the interval is? Do I need to add a hear...
jameguom Embedded System
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. PT07E-18-28S386
  2. HTSW-102-20-LM-S
  3. CDRH127/LDNP-3R5NB
  4. 54111-816-33-2300
  5. A2547WVA-N-2x10P-G30
  6. FHSC-125-15.00-TBL-SBL-2
  7. SA254353F15GVR
  8. 17-1212-192-25P
  9. 1.5KE440C
  10. UM37540S
  11. A2001WV-13P-GY
  12. A2547HA-23P+A2547-GP-B

Popular Articles

  1. OPPO uses 5G patents to counter-sue Nokia, which is the key to the 5G licensing fee game among Chinese companies
  2. 37-Design of intelligent temperature control fan based on 51 single chip microcomputer
  3. Moto edge X30 closes pre-sale: claims to have sold out of stock
  4. 51 single-chip microcomputer series learning - line-by-line scanning to achieve matrix key simulation
  5. 51 single chip microcomputer realizes digital tube as instrument panel to display the direction, speed and movement of the marquee
  6. Motorola Moto G22 released in Europe: equipped with MediaTek Helio G37 chip
  7. Connectivity Solutions for Industrial Transformation
  8. How to choose a biological toxicity tester
  9. Street light monitoring communication system terminal based on ARM7 and GPRS
  10. High resistance state in microcontroller

Technical ResourceMore

  1. Siemens S7-300-400PLC programming software use
  2. Humidity Sensor Driver
  3. Motor load calculation tool software
  4. 【PPT】Introduction to digital short board printing solution (Tsinghua Unisplendour)
  5. Decoder Data Distributor
  6. Design of Audio Signal Generator Based on 8051F330
  7. Pitch Angular Velocity Estimation Based on Kalman Filter
  8. Implementation of Multi-Serial Port Data Communication Based on NIOS II
  9. Design of PLC Control System
  10. Single silicon post-stage circuit

ForumMore

  1. Notes on capacitor installation
  2. A question about CCS not being able to use the MACH.H function
  3. Symantec CDC Recruitment Software Engineer
  4. Arduino Wireless Weather Forecast Station (Solar Powered)--EEWORLD University
  5. Urgent Question
  6. EEWORLD University ---- Automotive Exterior Lighting - Taillight Design Challenge
  7. How long does it take to learn ARM?
  8. DAC in DSP
  9. Come and see~! Why is Tokyo Fever not as hot as imagined?
  10. A streamlined and easy-to-use MCU Internet solution, published to celebrate the launch!

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1382  1686  343  2005  775  28  34  7  41  16
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
