Pb
Pb-free
* Pb Free Part
MSL1
Standard specification
Customer Name
System
Part Number
GSM900-Rx (50/150ohm)
FAR-F5QB-942M50-P2BB
Date
Version 2.1 b
March 31,2010
Table 1.Electrical specifications
Pass Band (925-960MHz)
Item
Condition
(MHz)
Min.
-
-
-
-
40
28
20
25
37
30
-1.0
-10
925-960
925-960
925-960
925-960
DC-880
880-905
905-915
980-1025
1025-2880
2880-6000
Specification
Unit
Max.
2.4
1.4
2.2
2.2
-
-
-
-
-
-
+1.0
+10
Remarks
Typ.
1.6
0.5
1.9
1.8
63
37
28
33
56
48
-0.2/+0.4
-1/+4
50
150//82nH
-30 to +85
Insertion Loss
Ripple
Input VSWR
Output VSWR
Absolute attenuation
dB
(*1)
dB
-
-
dB
dB
dB
dB
dB
dB
dB
deg
Ohm
Ohm
°C
Amplitude balance
(|S21/S31|)
Phase balance
((ΦS21-ΦS31)+180)
925-960
925-960
Input impedance (Unbalanced)
Output impedance (Balanced)
Operating temperature
(*1)
These data include loss that comes from the test board.
Pb
Pb-free
* Pb Free Part
MSL1
Standard specification
Customer Name
System
Part Number
GSM900-Rx (50/150ohm)
FAR-F5QB-942M50-P2BB
Date
Version 2.1 b
March 31,2010
Dimensions
Device size: 1.1yp. x 0.9typ. x 0.5max.
Unit : mm
Pin Configuration
Pin No.
1
2
3
4
5
Symbol
IN
GND
OUT
OUT
GND
Function
Unbalanced pin
Ground
Balanced pin
Balanced pin
Ground
Evaluation Circuit
Unbalanced
Input
(50ohm)
4
1
2,5
3
GND
L=82nH
Balanced
Output
(150ohm)
Pb
Pb-free
* Pb Free Part
MSL1
Standard specification
Customer Name
System
Part Number
GSM900-Rx (50/150ohm)
FAR-F5QB-942M50-P2BB
Date
Version 2.1 b
March 31,2010

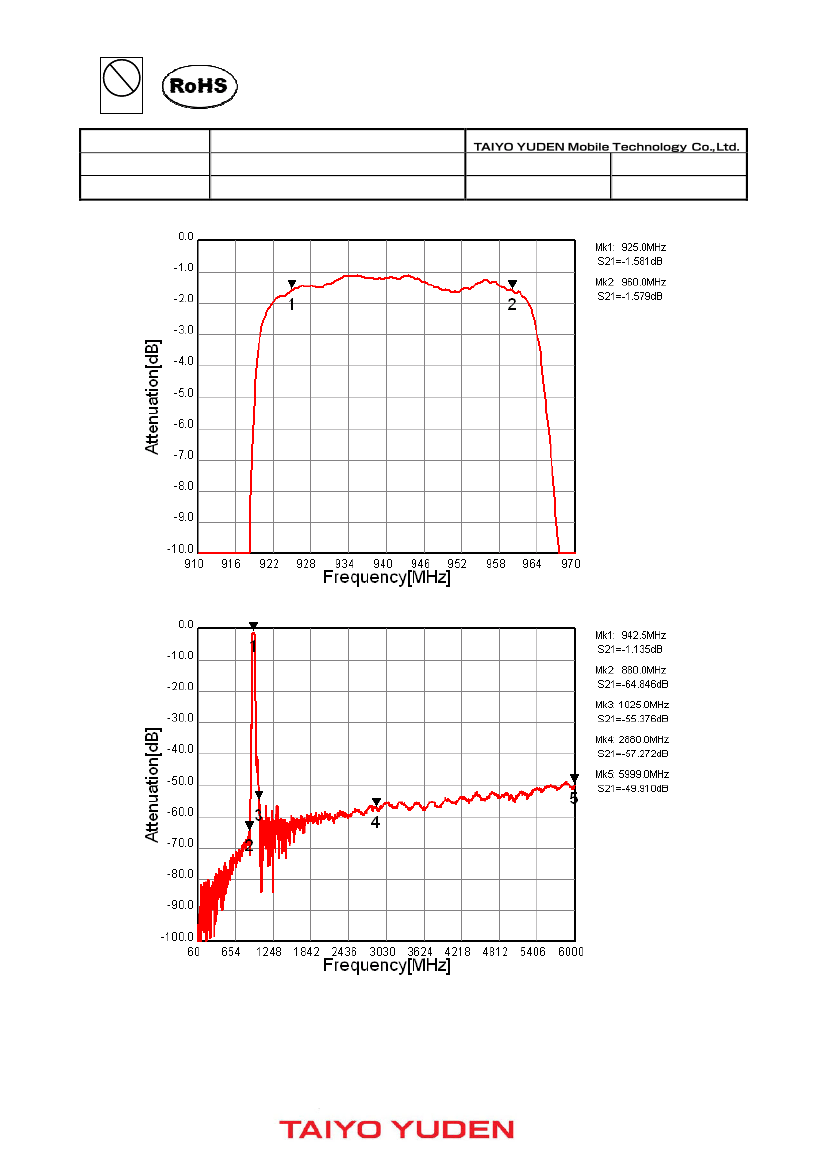

Fig.1 Pass-band Characteristic
Input
Output
Fig.2 VSWR
Pb
Pb-free
* Pb Free Part
MSL1
Standard specification
Customer Name
System
Part Number
GSM900-Rx (50/150ohm)
FAR-F5QB-942M50-P2BB
Date
Version 2.1 b
March 31,2010

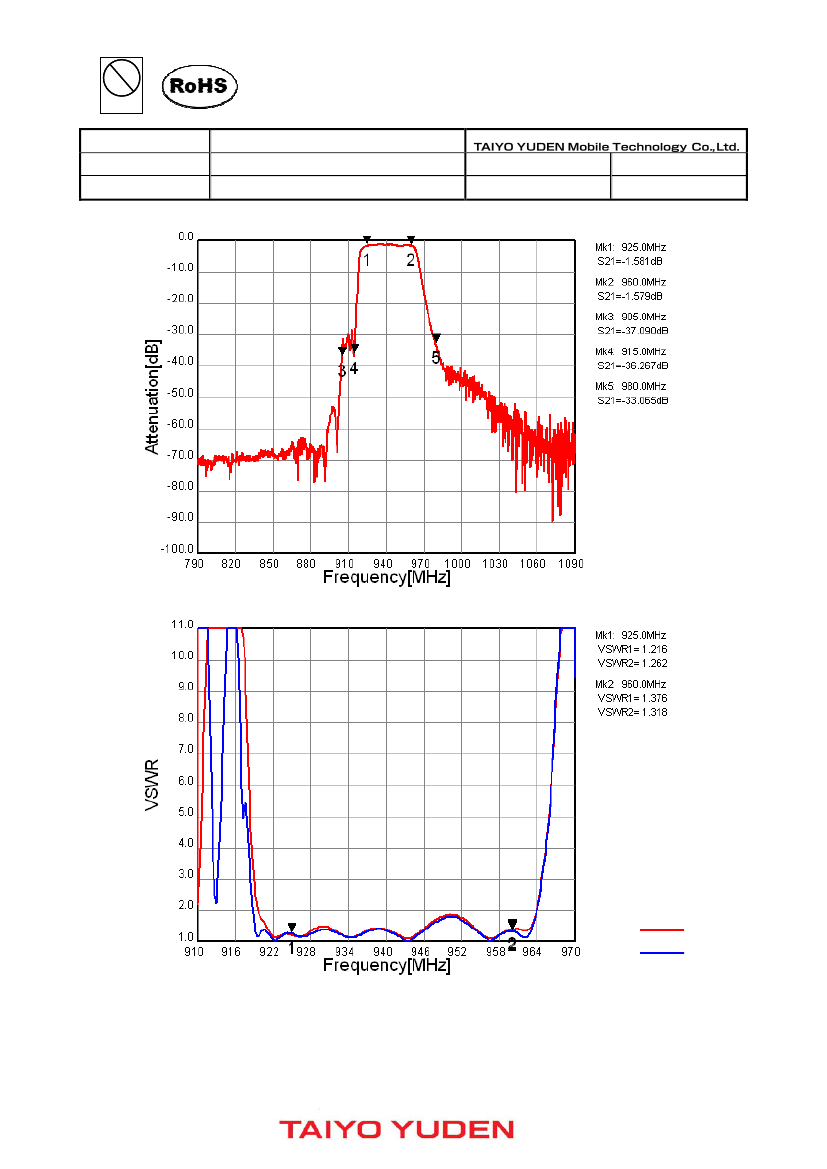

Fig.3 In-band Characteristic
Fig.4 Wide-band Characteristic
Pb
Pb-free
* Pb Free Part
MSL1
Standard specification
Customer Name
System
Part Number
GSM900-Rx (50/150ohm)
FAR-F5QB-942M50-P2BB
Date
Version 2.1 b
March 31,2010

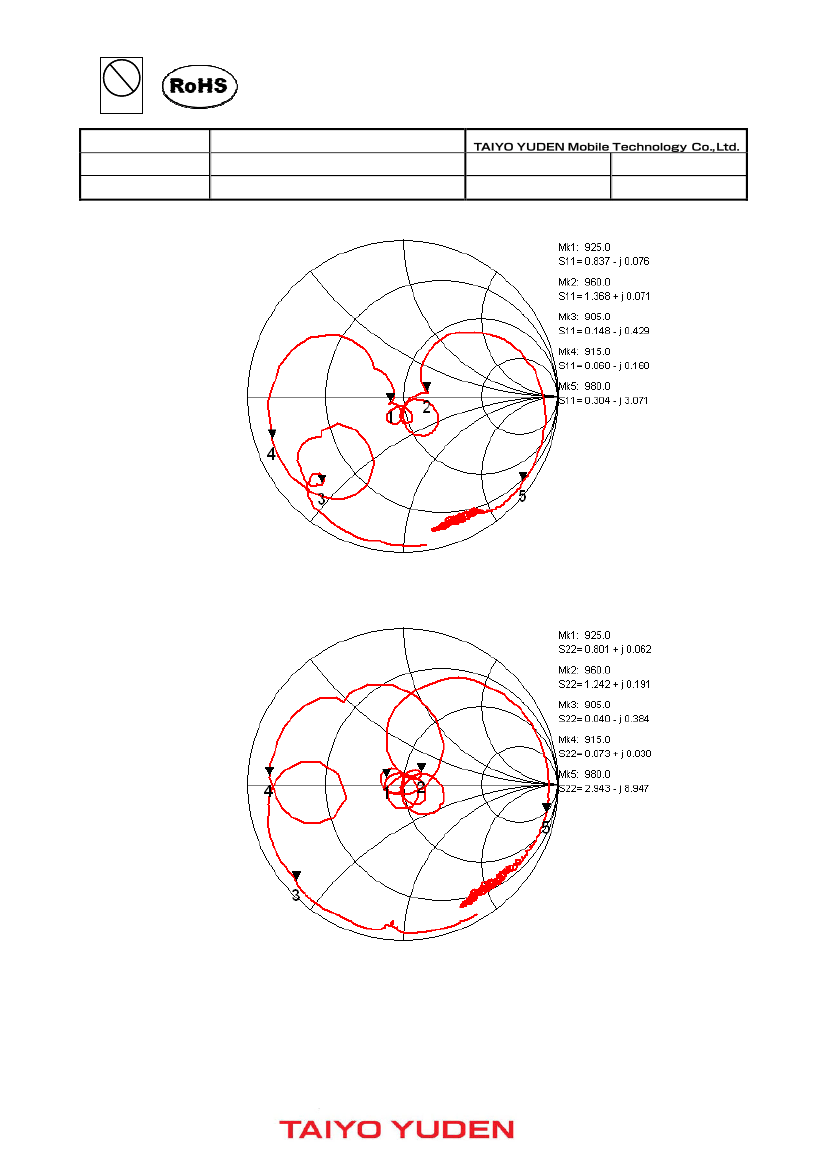

Fig.5 Impedance (S11)
Fig.6 Impedance (S22)
