AZ1086S-1.8TRG1 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> AZ1086S-1.8TRG1

AZ1086S-1.8TRG1: DescriptionFixed Positive LDO Regulator, 1.8V, 1.5V Dropout, BIPolar, PSSO3, GREEN, TO-263, 3 PIN; CategoryPower/power management The power supply circuit; File Size833KB，19 Pages; ManufacturerBCD Semi（Diodes）; Environmental Compliance

Download Datasheet Parametric View All

AZ1086S-1.8TRG1 Overview

Fixed Positive LDO Regulator, 1.8V, 1.5V Dropout, BIPolar, PSSO3, GREEN, TO-263, 3 PIN

AZ1086S-1.8TRG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BCD Semi（Diodes）
Parts packaging code	D2PAK
package instruction	TO-263, SMSIP3H,.55TB
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	1.5 V
Nominal dropback voltage 1	1.3 V
Maximum absolute input voltage	15 V
Maximum input voltage	15 V
Minimum input voltage	1.5 V
JESD-30 code	R-PSSO-G3
length	9.97 mm
Maximum grid adjustment rate	0.006%
Maximum load regulation	0.02%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1.5 A
Maximum output voltage 1	1.854 V
Minimum output voltage 1	1.746 V
Nominal output voltage 1	1.8 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Encapsulate equivalent code	SMSIP3H,.55TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	5.07 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum voltage tolerance	3%
width	9.145 mm

Preview

Download Datasheet

View All

Data Sheet

1.5A LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1086 is a series of low dropout positive voltage

regulators with a maximum dropout of 1.5V at 1.5A of

load current.

The series features on-chip thermal shutdown. It also

includes a bandgap reference and a current limiting cir-

cuit.

The AZ1086 is available in 1.5V, 1.8V, 2.5V, 3.0V,

3.3V, and 5.0V versions. The fixed versions integrate

the adjust resistors. It is also available in an adjustable

version, which can set the output voltage with only two

external resistors.

The AZ1086 series is available in standard packages of

TO-263-3, TO-220-3, SOT-223, TO-252-2 (1), TO-

252-2 (3) and TO-252-2 (4).

AZ1086

Features

Low Dropout Voltage: Typical 1.3V at 1.5A

Current Limiting and Thermal Protection

Output Current: 1.5A

Current Limit: 2.3A

Operating Junction Temperature: 0 to 125

Line Regulation: 0.015% (Typical)

Load Regulation: 0.1% (Typical)

Applications

High Efficiency Linear Regulators

Battery Charger

Post Regulation for Switching Supply

Microprocessor Supply

Motherboard Power Supply

Cable and ADSL Modem

DVD-Video Player

Telecom Equipment

Set Top Boxes and Web Boxes Modules' Supply

TO-263-3

TO-220-3

SOT-223

TO-252-2 (1)

TO-252-2 (3)

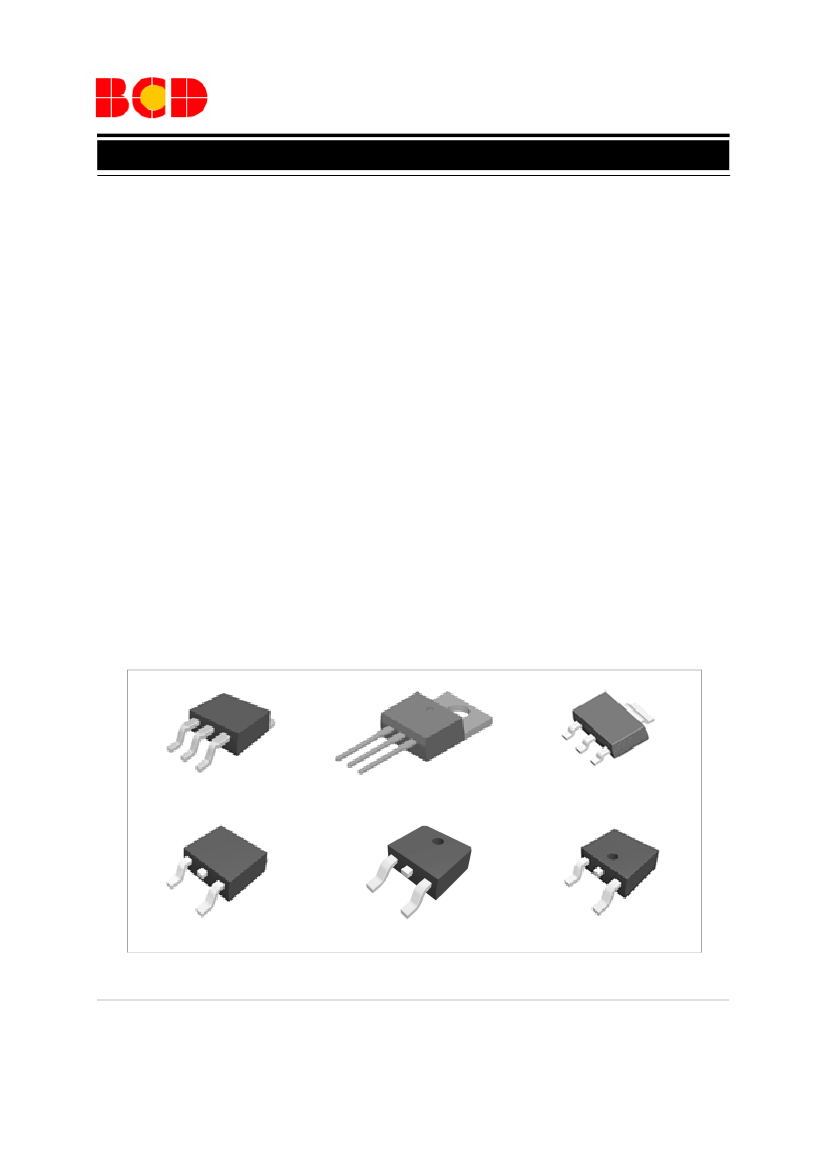

Figure 1. Package Types of AZ1086

TO-252-2 (4)

Nov. 2012 Rev. 2.0

BCD Semiconductor Manufacturing Limited
