BX2516WNLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> BX2516WNLT

BX2516WNLT: DescriptionTelecom Transformer, CHIP, ROHS COMPLIANT; CategoryPower management transformer; File Size39KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

BX2516WNLT Overview

Telecom Transformer, CHIP, ROHS COMPLIANT

BX2516WNLT Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ALSO; TURNS RATIO: 0.408:1
high	10.7 mm
length	9.8 mm
Manufacturer's serial number	BX2516WNL
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L9.8XB9.1XH10.7 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.1 mm

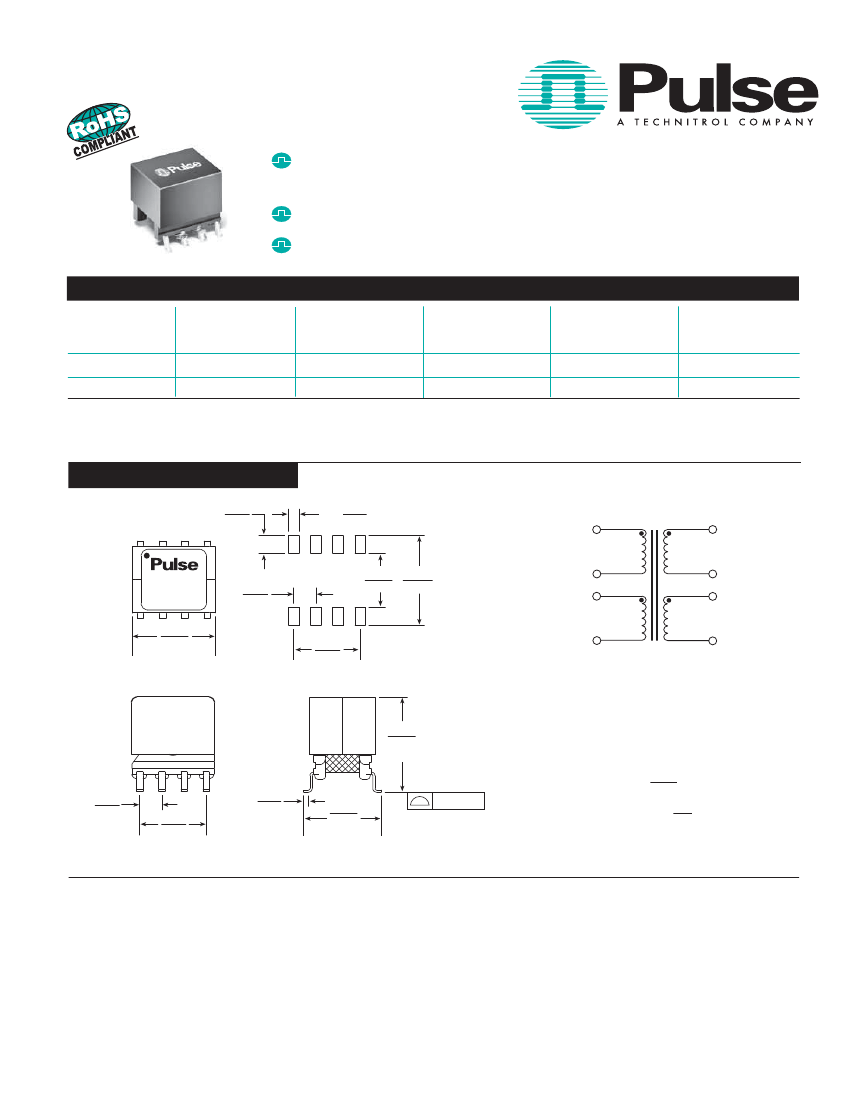

BX2516WNLT Preview

ADSL LINE TRANSFORMER

For Conexant CO Chipset

Matched to Conexant (Globespan) 24Mbps CO chipset with

Legerity driver, Annex A and C application

Compact industry standard surface mount footprint

Extended temperature range

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

RoHS-5

Compliant

Part No.

BX2516W

BX2510W

RoHS-6

Compliant

Part No.

BX2516WNL

—

Turns Ratio

(Line:Chip)

0.408:1

OCL 1-4

(w/2-3 tied)

(µH ±7%)

1100

750

Working

Voltage

(Vrms)

250

Isolation

Voltage

(Vrms)

1500

15000

NOTE: Transformers

are shipped in trays unless Tape & Reel packaging is specified by adding the suffix “T” to the part number (i.e. BX2516WT).

Mechanical

BX2516W / BX2516WNL / BX2510W

.082

2,08

.046

8 X 1,17

Schematic

Part Number

Date Code

Country of Origin

.098

2,50

.238 .402

6,04 10,20

LINE

CHIP

.386

9,80

MAX

.295

7,50

SUGGESTED PAD LAYOUT

.421

10,70

MAX

.098

2,50

.022

0,56

.005/0,13

8 SURFACES

Weight

. . . . . . . . . . . . . . .1.8 grams

Tape & Reel

. . . . . . . . . . . . 300/reel

Tray

. . . . . . . . . . . . . . . . . . . 95/tray

.295

7,50

.358

9,10

MAX

Dimensions: Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

For More Information:

Pulse Worldwide

Headquarters

Pulse Europe

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Rd.

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

TEL: 86 755 33966678

FAX: 86 755 33966700

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

135 Joo Seng Rd.

#03-02

PM Industrial Bldg.

Singapore 368363

Pulse North Asia

No. 26, Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan

R. O. C.

Tel: 886 3 4643715

Fax: 886 3 4641911

Einsteinstrasse 1

12220 World Trade Dr. D-71083 Herrenberg

San Diego, CA 92128 Germany

U.S.A.

www.pulseeng.com

Tel: 858 674 8100

Fax: 858 674 8262

Tel: 49 7032 7806 0

Fax: 49 7032 7806 135

TEL: 65 6287 8998

FAX: 65 6280 0080

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

B855.D (2/09)

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
