TURNS RATIO: 1:4; 1:2, HEIGHT DIM INCLUDES TERMINAL ALSO, COMPATIBLE WITH GLOBESPAN CHIPSET
high
12.5 mm
length
15.8 mm
Manufacturer's serial number
BX2577L
Installation features
SURFACE MOUNT
Maximum operating temperature
85 °C
Minimum operating temperature
-40 °C
method of packing
TRAY
physical size
15.8mm X 13.65mm X 12.5mm
surface mount
YES
Transformer type
TELECOM TRANSFORMER
width
13.65 mm

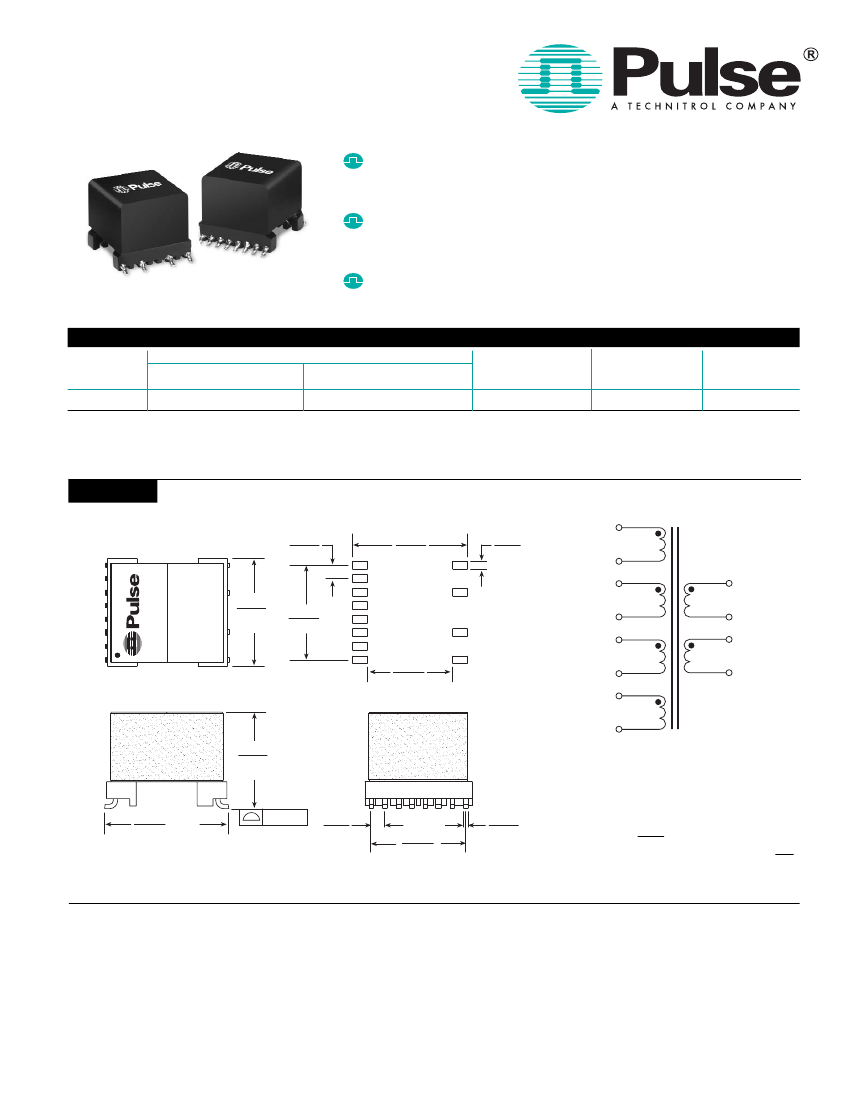

BX2577L Preview
ADSL LINE TRANSFORMERS
For Globespan ADSL CPE Chipsets
Matched to Globespan Virata CPE Café
ADSL chipset - DMT Annex A
Designed to meet IEC60950 supplementary
insulation requirements at 250V working voltage
1500V Breakdown Isolation between windings
Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C
Part
Number
BX2577L
Turns Ratio
TX:Line
(1-4):(9-16)
RX:Line
(5-8):(9-16)
w/2-3 & 11-14 shorted
w/6-7 & 11-14 shorted
1:4
1:2
OCL
Primary
(µH ±6%)
701
THD
@ 25kHz,
(dB MAX)
-83
Isolation
Voltage
(Vrms)
1500
NOTES:
Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix
“T”
to this part number (BX2577LT).
Mechanical
BX2577L
SUGGESTED PAD LAYOUT
Schematic
1
TX
3
2
4
5
.472
12,00
.066
1,70
Date Code
Country of Origin
.650
16,50
.040
1,00
BX2577L
.537
13,65
MAX
16
11
LINE
14
9
.469
11,90
RX
7
6
8
.492
12,50
MAX
.622 MAX
15,80
.005/0,13
16 SURFACES
.066
1,70
.469
11,90
.020
0,50
Weight
. . . . . . . . . . . . . .6.5 grams
Tape & Reel
. . . . . . . . . . . .150/reel
Tray
. . . . . . . . . . . . . . . . . . .60/tray
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
