FE2X10-3-2: DescriptionData Line Filter; CategoryAnalog mixed-signal IC filter; File Size449KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

FE2X10-3-2 Overview

Data Line Filter

FE2X10-3-2 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Certification	UL
Maximum DC resistance	0.55 Ω
filter type	DATA LINE FILTER
high	20.4 mm
inductance	10000 µH
length	18.4 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Rated current	0.7 A
Rated voltage	250 V
width	13.4 mm

Preview

Download Datasheet

View All

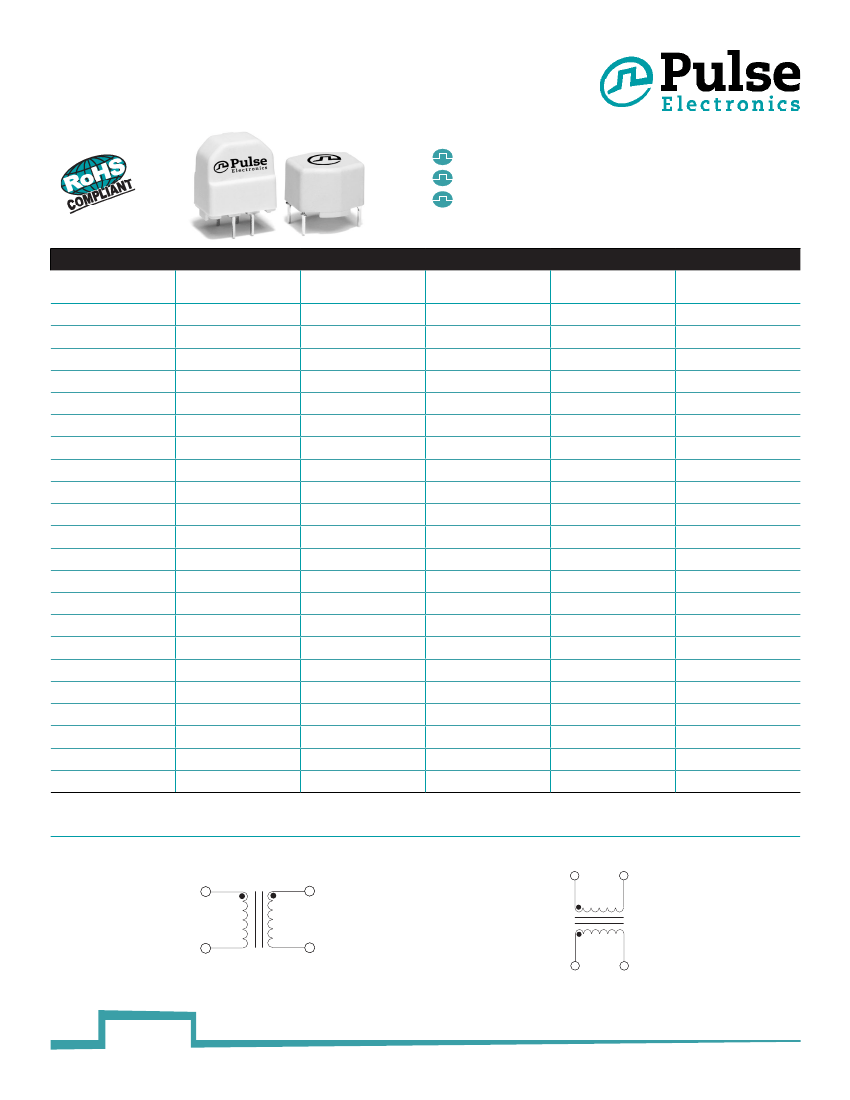

Current Compensated Noise

Suppression Chokes

FE 2X Series - 2 Phase Common Mode Choke

Materials meet UL-94 V-0 requirements

Rated voltage: 250 Vac

Dielectric withstanding voltage: 1500 Vac

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part Number

(Vertical)

FE2X03-3-2

FE2X03-4-2

FE2X03-5-2

FE2X03-6-2

-

FE2X07-3-2

FE2X07-5-2

FE2X07-6-2

FE2X10-3-2

FE2X10-4-2

FE2X10-5-2

FE2X10-6-2

FE2X15-3-2

FE2X15-4-2

FE2X18-6-2

FE2X27-3-2

FE2X27-4-2

FE2X39-3-2

FE2X39-4-2

FE2X39-5-2

FE2X47-3-2

FE2X47-4-2

Part Number

(Horizontal)

FE2X03-3-3

FE2X03-4-3

-

FE2X03-8-3

FE2X07-3-3

FE2X07-5-3

-

FE2X10-3-3

FE2X10-4-3

-

FE2X15-3-3

-

FE2X27-3-3

FE2X27-4-3

FE2X39-3-3

FE2X39-4-3

-

L

(mH

±30%)

3.3

6.8

10

15

18

27

39

47

Current

(A)

1.50

2.50

2.80

4.00

8.00

1.20

2.00

2.20

0.70

1.20

1.60

1.80

0.50

1.00

1.40

0.40

0.70

0.35

0.50

0.70

0.30

0.40

DCR

(Ω

±20%)

0.17

0.07

0.06

0.028

0.30

0.14

0.17

0.55

0.30

0.21

0.20

0.77

0.40

0.28

1.70

0.62

2.00

1.12

1.00

2.30

1.30

Resonance

(kHz)

800

700

400

450

350

300

220

200

180

160

150

Notes:

Part Numbering System:

FE2XLV-S-P,

where

LV

is the inductance value,

S

is the size code, and

P

is package style (2 = vertical and 3 = horizontal)

Schematics

Style 2 - Vertical Package

3

5

Style 3 - Horizontal Package

1

7

4

6

2

8

USA 858 674 8100

1

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P538.C (7/12)

pulseelectronics.com
