FE2X47-3-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> FE2X47-3-2

Preview

FE2X47-3-2: DescriptionGeneral Purpose Inductor, 47000uH, 30%, 2 Element; CategoryPassive components inductor; File Size355KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

FE2X47-3-2 Overview

General Purpose Inductor, 47000uH, 30%, 2 Element

FE2X47-3-2 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	2.3 Ω
Nominal inductance(L)	47000 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	2
Number of terminals	8
Maximum rated current	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	PRINTED WIRING PIN
Tolerance	30%

Preview

Download Datasheet

View All

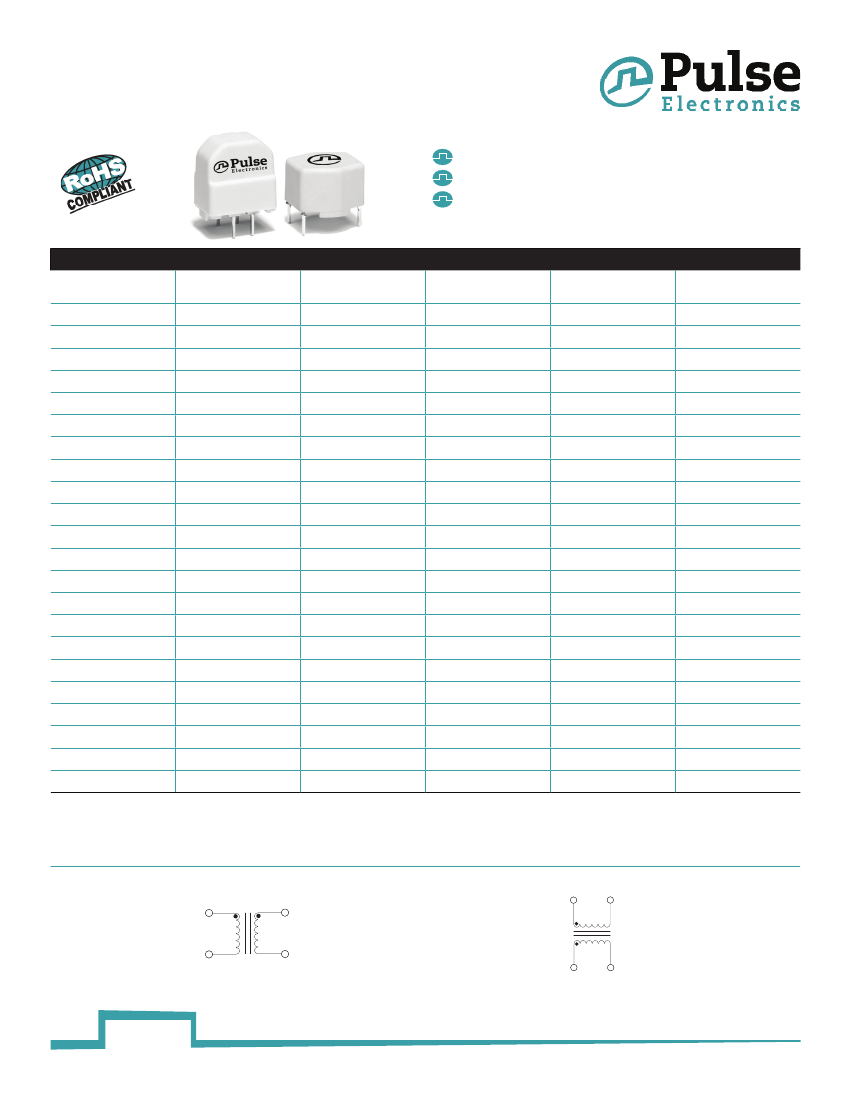

Current Compensated Noise

Suppression Chokes

FE 2X Series - 2 Phase Common Mode Choke

Materials meet UL-94 V-0 requirements

Rated voltage: 250 Vac

Dielectric withstanding voltage: 1500 Vac

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part Number

(Vertical)

FE2X03-3-2NL

FE2X03-4-2NL

FE2X03-5-2

FE2X03-6-2NL

-

FE2X07-3-2NL

FE2X07-5-2NL

FE2X07-6-2

FE2X10-3-2NL

FE2X10-4-2NL

FE2X10-5-2

FE2X10-6-2NL

FE2X15-3-2NL

FE2X15-4-2

FE2X18-6-2NL

FE2X27-3-2NL

FE2X27-4-2

FE2X39-3-2NL

FE2X39-4-2NL

FE2X39-5-2

FE2X47-3-2

FE2X47-4-2NL

Part Number

(Horizontal)

FE2X03-3-3NL

FE2X03-4-3NL

-

FE2X03-8-3

FE2X07-3-3NL

FE2X07-5-3

-

FE2X10-3-3NL

FE2X10-4-3

-

FE2X15-3-3

-

FE2X27-3-3NL

FE2X27-4-3NL

FE2X39-3-3NL

FE2X39-4-3NL

-

L

(mH

±30%)

3.3

3.1

3.3

6.8

10

15

18

27

39

47

Current

(A)

1.50

2.50

2.80

4.00

8.00

1.20

2.00

2.20

0.70

1.20

1.60

1.80

0.50

1.00

1.40

0.40

0.70

0.35

0.50

0.70

0.30

0.40

DCR

(mOhms Max)

215

90

66

80

33

39

170

210

740

410

260

240

960

530

650

1700

820

2600

1500

1300

2900

1700

SRF

(kHz Min)

760

400

500

600

700

400

480

300

350

300

220

200

180

150

200

160

100

150

Notes:

1. Part Numbering System:

FE2XLV-S-P,

where

LV

is the inductance value,

S

is the size code, and

P

is package style (2 = vertical and 3 = horizontal)

2. Part numbers with NL suffix are RoHS 6/6 compliant.

Schematics

Style 2 - Vertical Package

3

5

Style 3 - Horizontal Package

1

7

4

6

2

8

USA 858 674 8100

1

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

P538.E (03/14)

pulseelectronics.com
