FSON110 datasheet, PDF - EEWORLD Datasheet

FSON110: DescriptionGeneral Purpose Inductor, 400uH, 20%, 1 Element,; CategoryPassive components inductor; File Size47KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

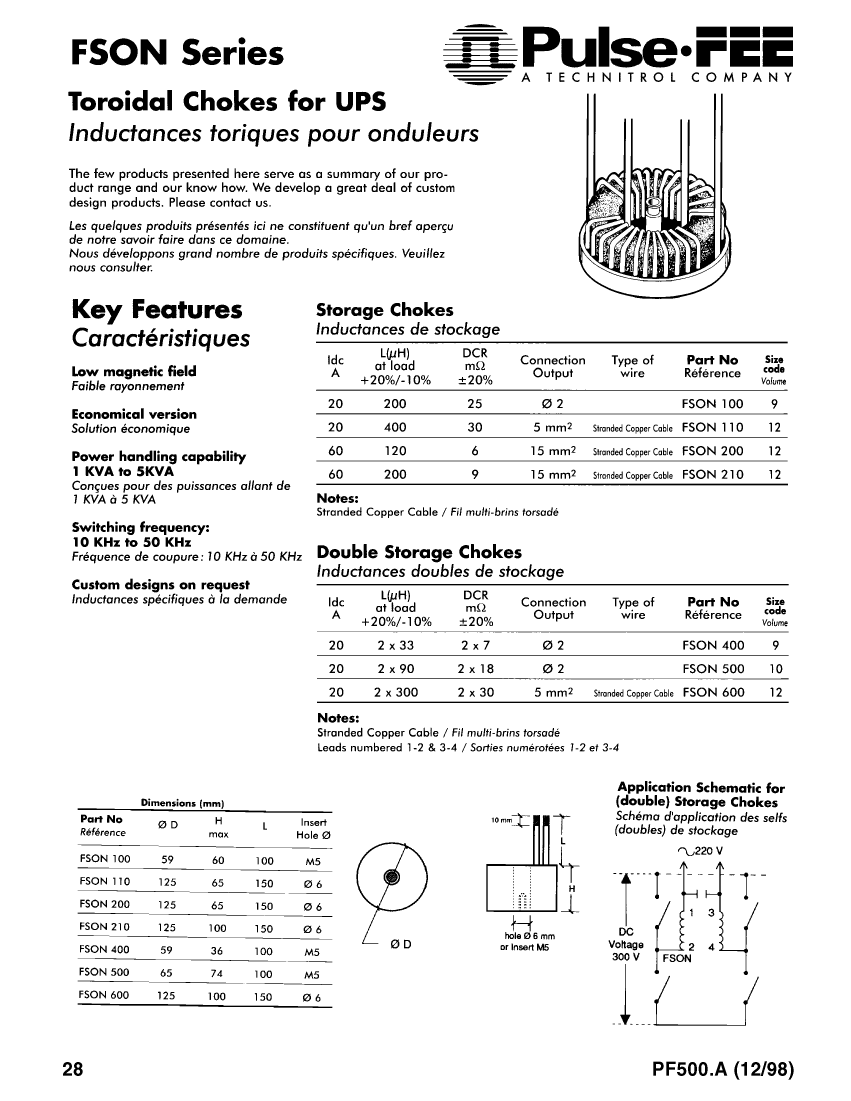

FSON110 Overview

General Purpose Inductor, 400uH, 20%, 1 Element,

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.03 Ω
Nominal inductance(L)	400 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	FSON
Number of functions	1
Number of terminals	4
Maximum rated current	20 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
special characteristics	INDUCTANCE MEASURED AT 20 AMPS DC CURRENT
surface mount	NO
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Tolerance	20%

	FSON110	FSON200	FSON400
Description	General Purpose Inductor, 400uH, 20%, 1 Element,	General Purpose Inductor, 120uH, 20%, 1 Element,	General Purpose Inductor, 33uH, 20%, 2 Element,
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
DC Resistance	0.03 Ω	0.006 Ω	0.007 Ω
Nominal inductance(L)	400 µH	120 µH	33 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	FSON	FSON	FSON
Number of functions	1	1	2
Number of terminals	4	4	4
Maximum rated current	20 A	60 A	20 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO
special characteristics	INDUCTANCE MEASURED AT 20 AMPS DC CURRENT	INDUCTANCE MEASURED AT 60 AMPS DC CURRENT	INDUCTANCE MEASURED AT 20 AMPS DC CURRENT
surface mount	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Tolerance	20%	20%	20%
Maker	Pulse Electronics	-	Pulse Electronics
