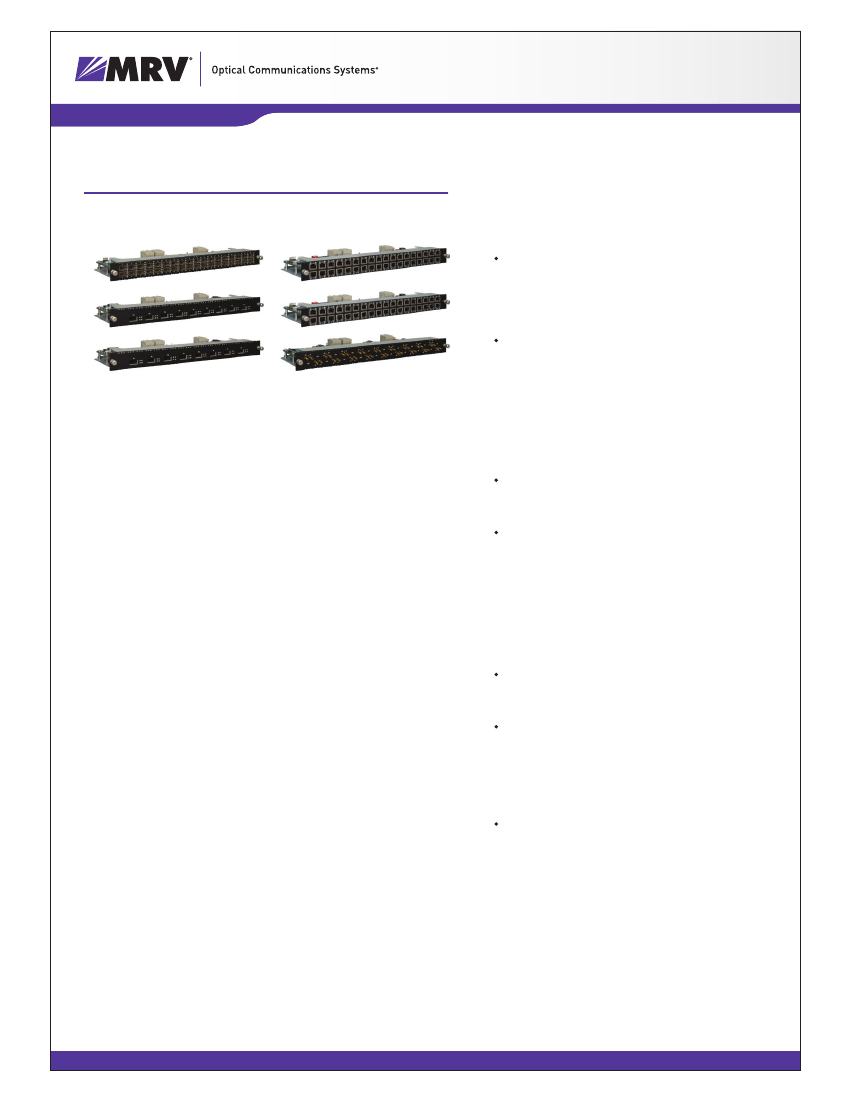

10/100/1000Base-TX Ethernet ports with 3R signal retiming.
Each port supports auto-negotiation, speed, duplex, link match,
MDI/MDI-X auto-sensing, and jumbo Ethernet packets. It fully
supports 100 Mbps and 1000 Mbps copper-to-fiber media
conversion and uni-directional traffic.
T1/E1 Blade
(EMPMC-36T1E1) provide RJ-48c ports that can be
independently configured for T1 or E1 mode and for 3R signal
regeneration. For media conversion applications, the 36T1E1
ports can also be mapped to SFPs supporting 100 Mbps Ethernet.
It also provides MDI-MDIX software switching.
DS3/E3/STS-1 Blade
(EMPMC-18DT3E3) provides 18 DS3/E3/
STS-1 ports with coaxial (1.0/2.3) connectors. Each port may be
independently configured to operate in DS3, E3, or STS-1 mode.
Cable adapters from (1.0/2.3) to BNC are available.
6G SAS/SATA Blade
(EMPMC-36SAS) SAS/SATA blade for use in the
NC316-144PMC8X chassis supports 3.0 and 6.0 Gbps data rates using
nine standard mini-SAS 4x connectors with full transparency to any
end devices. The blade provides input signal detection, and it can
disable signal transmissions to simulate cable breaks or link flapping.
2

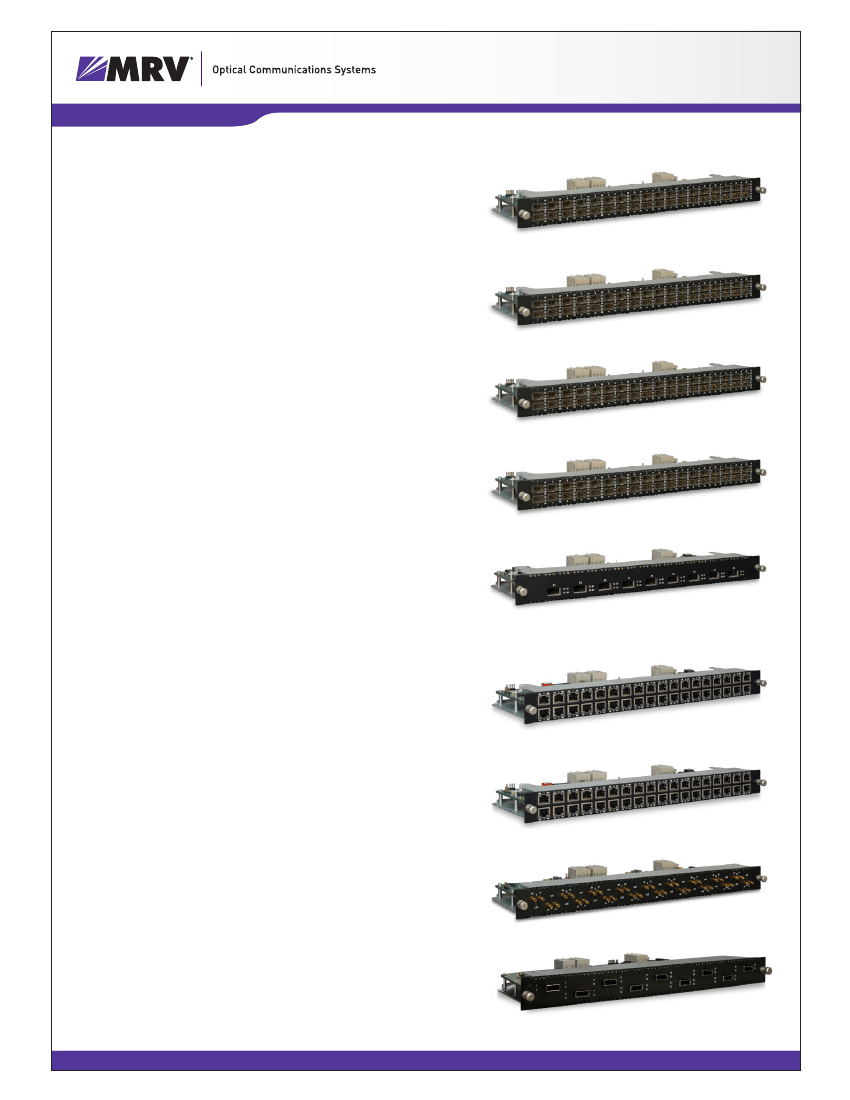

RJ-45-C Blade (36 ports)
T1/E1 Blade (36 ports)
DS3/E3/STS-1 Blade (18 ports)
6G SAS/SATA Blade (36 ports)
Datasheet

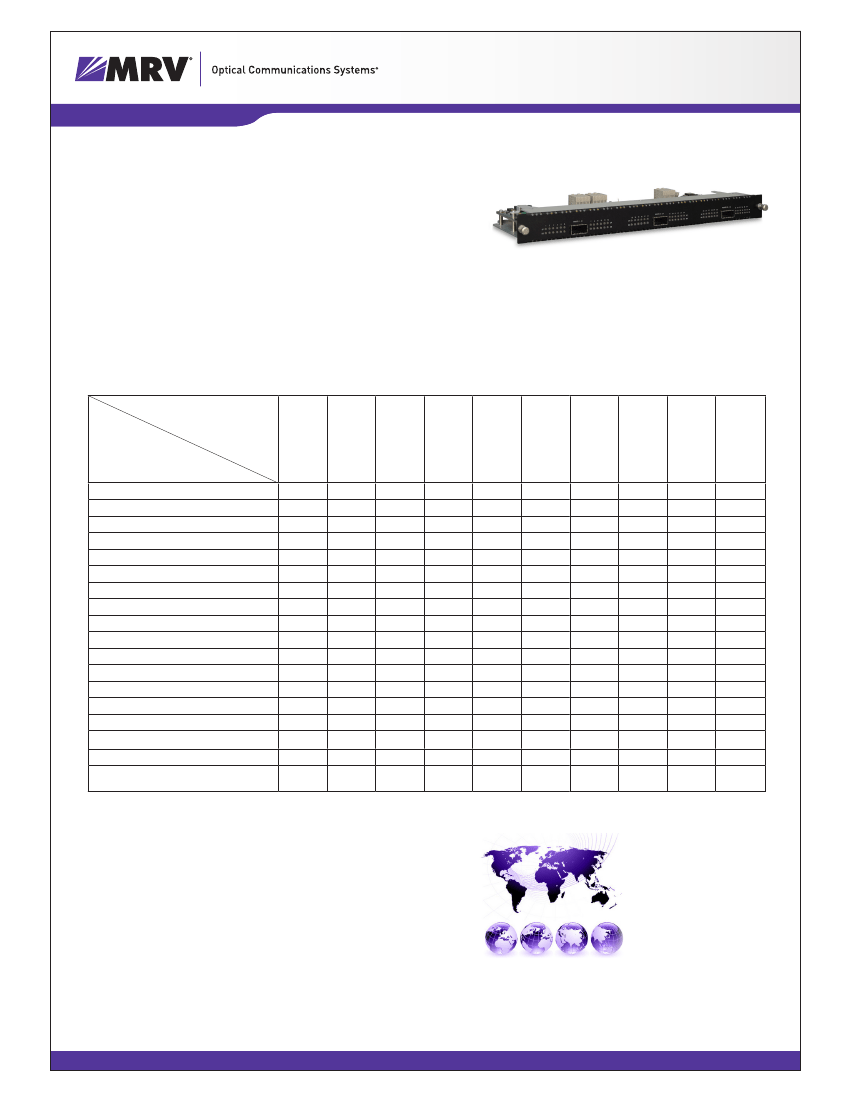

Inter-Chassis Blade
(EMPMC-36IC) interconnects any model
MCC chassis as a book-end solution (paired with other inter-
chassis blades) and contains 36 ports of connectivity via three
CXP transceivers, supporting 12 mapping ports each. The CXP
connections are data rate and protocol transparent allowing
pass through of data matching the configured port mappings.
Inter-chassis cabling requirements are minimized with the use
of MTP cables that support 12 bi-directional channels requiring
only three cables between IC blades. Distances up to 100 m are
supported with the IC Blade configuration.
Detailed ordering information is available at
www.mrv.com/tap
.
Inter-Chassis Blade
(36 ports: 3 connections x 12 ports each)
MCC Interface Blade Applications
Inter-Chassis/
36 (3 connections
x 12 ports each)
Blade Type/
# of Ports
SFP MR CDR/
36
T3/E3/STS-1/
18
8G SFP+ FC/
36
SAS/SATA/
9
10G SFP+/
36
RJ45-C/
36
Any Protocol up to 3.0 Gbps - 2R
10/100/1000 Base Fiber Ethernet - 2R
10/100/1000 Base Fiber Ethernet w/ CDR
10/100/1000 Base TX Ethernet
1G/2G Fibre Channel - 2R
1G/2G/4G Fibre Channel – 2R
1G/2G/4G Fibre Channel w/ CDR
8G Fibre Channel w/ CDR
SAS/SATA 3.0/6.0 Gbps
SONET OC-3, OC-12, OC-48 -2R
SONET OC-3, OC-12, OC-48 w/ CDR
10G Ethernet LAN PHY
10G Fibre Channel
10G Ethernet WAN PHY or SONET OC-192
SDI and HD-SDI (unique MRV SFPs)
T1/E1
DS3/E3/STS-1
Chassis Support
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
T1/E1/
36
Application
10G XFP/
9
SFP/
36
•
•
•
•
•
•
•
•
•
All
All
36HS
8X
HS
8X
•
36HS
4X
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
All
HS
4X
36HS
All
All
MRV operates Worldwide sales and service offices across four continents.
Contact us at
info@mrv.com
MRV Communications
Corporate Headquarters
300 Apollo Drive
Chelmsford, MA 01824
http://www.mrv.com
All statements, technical information and recommendations related to the products herein are based upon information believed to be reliable or accurate. However, the
accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any inaccuracies. Please contact MRV Communications for more information.
MRV Communications and the MRV Communications logo are trademarks of MRV Communications, Inc. Other trademarks are the property of their respective holders.
