BALUN TRANSFORMERS

Preview

Download Datasheet

View All

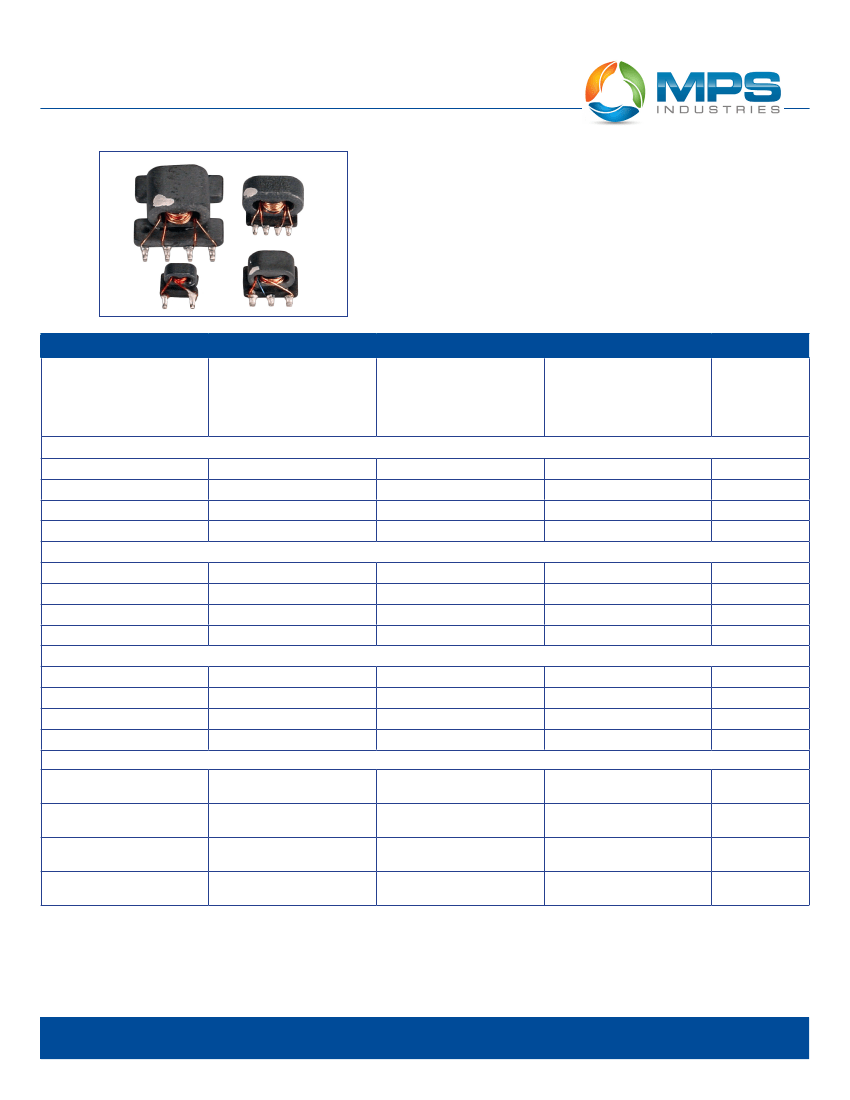

BALUN TRANSFORMERS

R3647 SERIES

•

Ideal for CATV, SET Top Box,Cable Modem and Multimedia over

Coax Alliance applications

Types include Double Balance Mixer, Frequency Mixer, Transmis-

sion Line and Directional Coupler

Operating Temperature: -40°C to +85°C

RoHS Compliant Product

Custom Design Available

ELECTRICAL PARAMETERS @ 25°C

Part Number

Turns

R3647-

Double Balanced Mixer (50Ω:200Ω) (6-4:1-3)

Frequency Mixer (50Ω:200Ω) (6-4:1-2-3)

Transmission Line

Splitter/Directional Coupler

10D

45-1500

8-1200

5-1100

1-1000

in-out1, 2dB

in-out2, 10dB

in-out1, 1.5dB

in-out2, 14dB

in-out1, 1.2dB

in-out2, 16dB

in-out1, 1.5dB

in-out2, 19dB

2½

3½

4½

5½

15-2400

10-1800

7.5-1500

1.0-1400

2:4CT

3:6CT

4:8CT

5:10CT

10-300

6-480

3-400

0.5-300

15-1000

10-800

6-600

1-400

Frequency

Response Rate

(MHz)

Insertion Loss

(dB MAX)

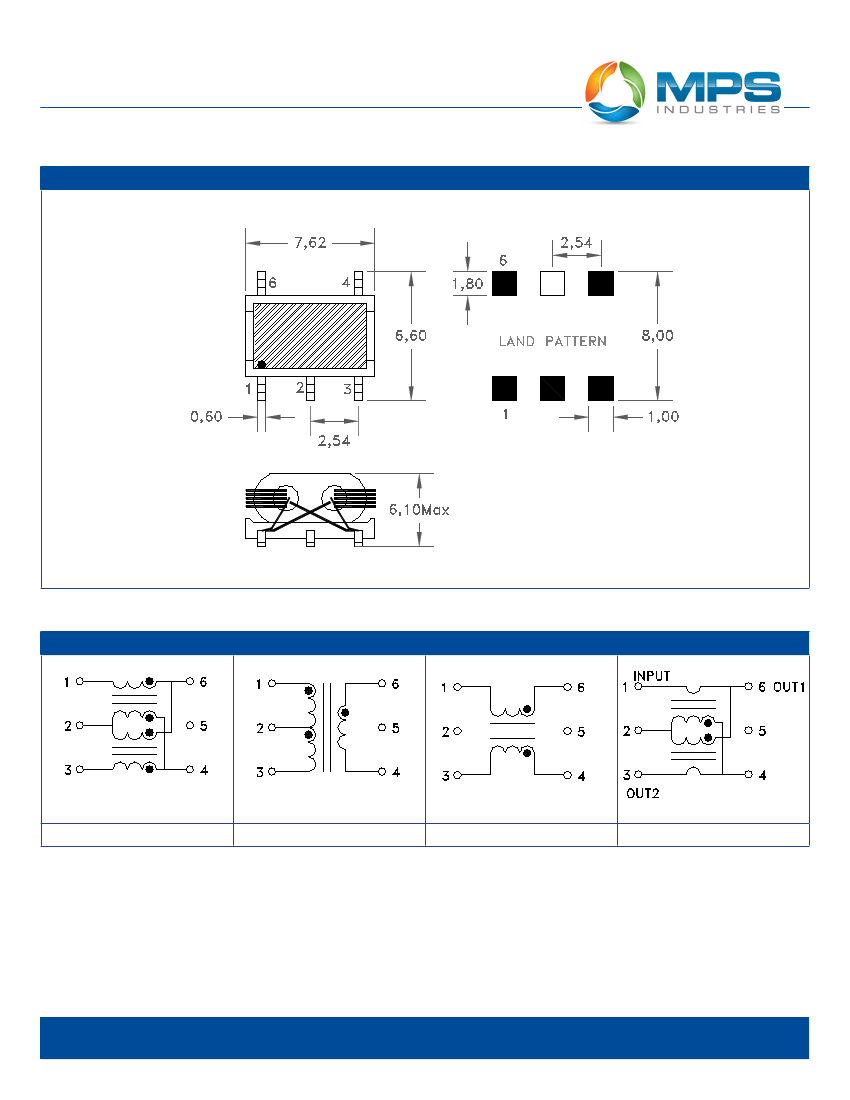

Schematic

Product performance is limited to specified parameters. Data is subject to change without prior notice.

Tel: 310-325-1043

Fax: 310-325-1044

www.mpsind.com
