IRF6718L2TRPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRF6718L2TRPBF

IRF6718L2TRPBF: Description61 A, 25 V, 0.0007 ohm, N-CHANNEL, Si, POWER, MOSFET; CategoryDiscrete semiconductor The transistor; File Size248KB，10 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

IRF6718L2TRPBF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IRF6718L2TRPBF	-	-	View	Buy Now

IRF6718L2TRPBF Overview

61 A, 25 V, 0.0007 ohm, N-CHANNEL, Si, POWER, MOSFET

IRF6718L2TRPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	CHIP CARRIER, R-XBCC-N7
Contacts	7
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ULTRA-LOW RESISTANCE
Avalanche Energy Efficiency Rating (Eas)	530 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	25 V
Maximum drain current (Abs) (ID)	270 A
Maximum drain current (ID)	61 A
Maximum drain-source on-resistance	0.0007 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-XBCC-N7
JESD-609 code	e1
Number of components	1
Number of terminals	7
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	175 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	83 W
Maximum pulsed drain current (IDM)	490 A
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN SILVER COPPER
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	30
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

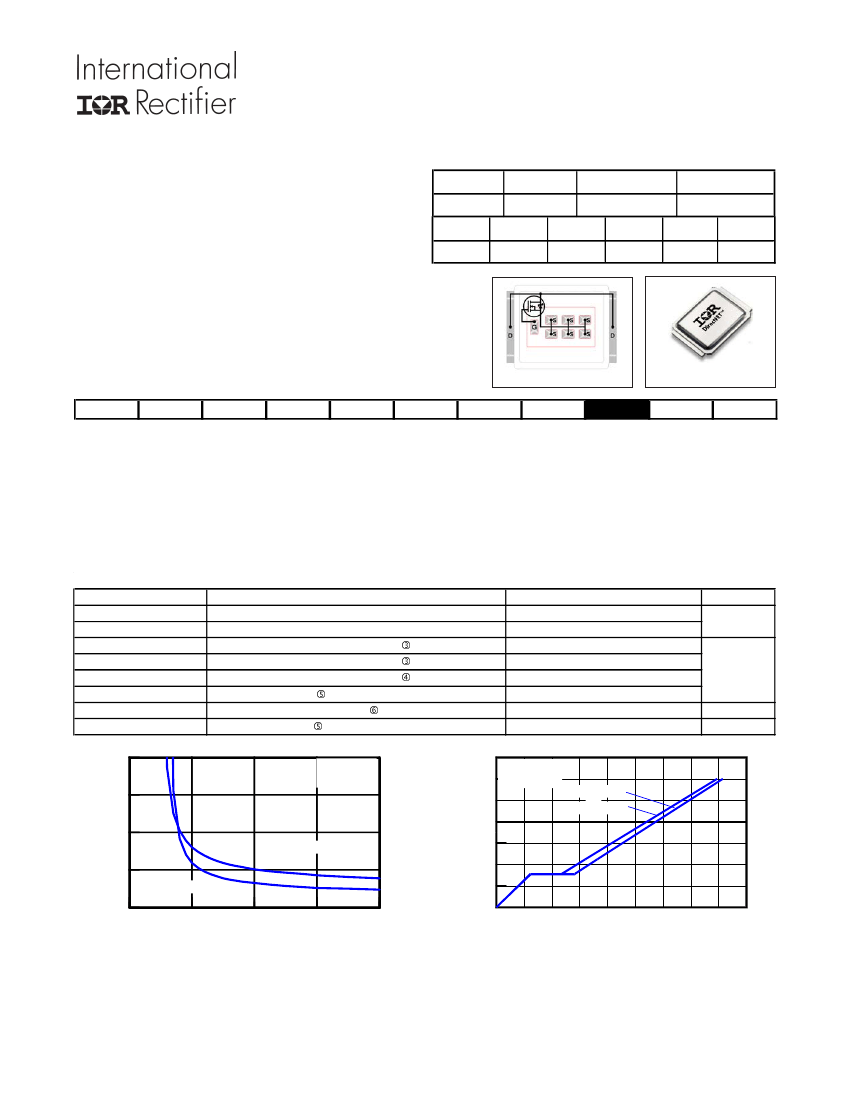

PD - 97395E

IRF6718L2TRPbF

IRF6718L2TR1PbF

RoHS Compliant Containing No Lead and Bromide

Dual Sided Cooling Compatible

Ultra Low Package Inductance

Very Low R

DS(ON)

for Reduced Conduction Losses

Optimized for Active O-Ring / Efuse Applications

Compatible with existing Surface Mount Techniques

Typical values (unless otherwise specified)

DirectFET

Power MOSFET

DS(on)

gs2

9.4nC

DSS

tot

20nC

DS(on)

oss

50nC

25V max ±20V max 0.50mΩ@10V 1.0mΩ@4.5V

67nC

gs(th)

1.9V

64nC

Applicable DirectFET Outline and Substrate Outline

DirectFET® ISOMETRIC

Description

The IRF6718L2TRPbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFET

packaging to achieve

the lowest on-state resistance in a package that has the footprint of a D-pak. The DirectFET package is compatible with existing layout

geometries used in power applications, PCB assembly equipment and vapor phase, infra-red or convection soldering techniques, when

application note AN-1035 is followed regarding the manufacturing methods and processes. The DirectFET package allows dual sided cooling

to maximize thermal transfer in power systems.

The IRF6718L2TRPbF has extremely low Si Rdson coupled with ultra low package resistance to minimize conduction losses. The

IRF6718L2TRPbF has been optimized for parameters that are critical in reliable operation on Active O-Ring / Efuse / hot swap applications.

Absolute Maximum Ratings

Parameter

@ T

= 25°C

@ T

= 70°C

@ T

= 25°C

Typical RDS(on) (mΩ)

Max.

Units

Drain-to-Source Voltage

Gate-to-Source Voltage

Continuous Drain Current, V

@ 10V

Continuous Drain Current, V

@ 10V

Continuous Drain Current, V

@ 10V

Pulsed Drain Current

Single Pulse Avalanche Energy

Avalanche Current

Ãg

±20

270

490

530

VGS, Gate-to-Source Voltage (V)

14.0

12.0

10.0

8.0

6.0

4.0

2.0

0.0

100 120 140 160 180

QG Total Gate Charge (nC)

ID= 49A

VDS= 20V

VDS= 13V

ID = 61A

T J = 125°C

T J = 25°C

VGS, Gate -to -Source Voltage (V)

Fig 1.

Typical On-Resistance vs. Gate Voltage

Notes:

Fig 2.

Typical Total Gate Charge vs Gate-to-Source Voltage

measured with thermocouple mounted to top (Drain) of part.

Repetitive rating; pulse width limited by max. junction temperature.

Starting T

= 25°C, L = 0.44mH, R

= 25Ω, I

= 49A.

Click on this section to link to the appropriate technical paper.

Click on this section to link to the DirectFET Website.

Surface mounted on 1 in. square Cu board, steady state.

www.irf.com

07/27/11

IRF6718L2TRPBF Related Products

	IRF6718L2TRPBF	IRF6718L2TR1PBF
Description	61 A, 25 V, 0.0007 ohm, N-CHANNEL, Si, POWER, MOSFET	61 A, 25 V, 0.0007 ohm, N-CHANNEL, Si, POWER, MOSFET
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	CHIP CARRIER, R-XBCC-N7	CHIP CARRIER, R-XBCC-N7
Contacts	7	7
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Other features	ULTRA-LOW RESISTANCE	ULTRA-LOW RESISTANCE
Avalanche Energy Efficiency Rating (Eas)	530 mJ	530 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	25 V	25 V
Maximum drain current (Abs) (ID)	270 A	270 A
Maximum drain current (ID)	61 A	61 A
Maximum drain-source on-resistance	0.0007 Ω	0.0007 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-XBCC-N7	R-XBCC-N7
JESD-609 code	e1	e1
Number of components	1	1
Number of terminals	7	7
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	175 °C	175 °C
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	83 W	83 W
Maximum pulsed drain current (IDM)	490 A	490 A
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER
Terminal form	NO LEAD	NO LEAD
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	30	30
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
