Part Number

Search

NAWU2R2M50V4X6.3JSF

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1717, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size39KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

NAWU2R2M50V4X6.3JSF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1717, CHIP, ROHS COMPLIANT

NAWU2R2M50V4X6.3JSF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNichicon
package instruction, 1717
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance2.2 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee3
Manufacturer's serial numberNAWU
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)50 V
ripple current11 mA
size code1717
surface mountYES
Delta tangent0.14
Terminal surfaceTin (Sn)
Terminal shapeFLAT

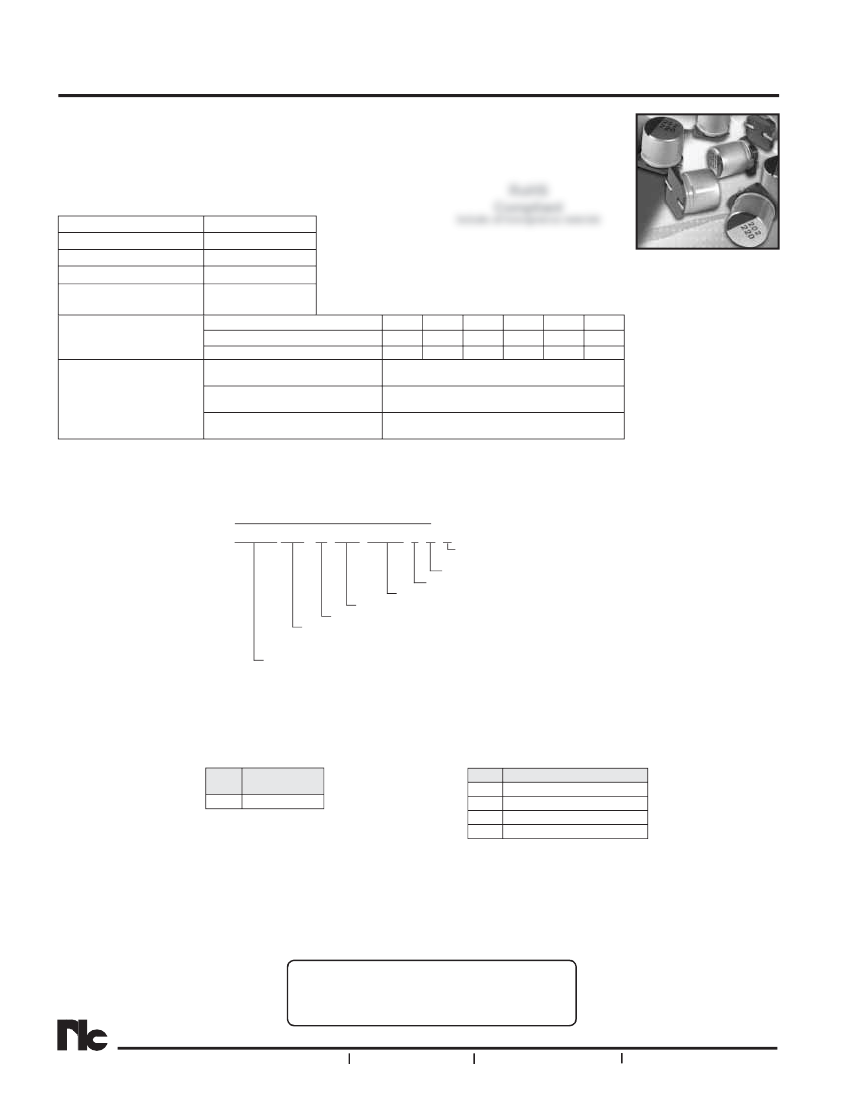

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• HIGH TEMPERATURE, EXTEND LIFE (5000 HOURS @ 105°C)
• 4X6.3mm ~ 6.3X6.3mm CASE SIZES
RoHS
• DESIGNED FOR REFLOW SOLDERING
Compliant
CHARACTERISTICS
includes all homogeneous materials
Rated Voltage Range
Rate Capacitance Range
Oerating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Tan
δ
@120Hz/20°C
6.3 ~ 50Vdc
0.1 ~ 100µF
-40°C ~ +105°C
±20% (M)
0.01CV or 3µA
whichever is greater
W.V. (Vdc)
S.V.(Vdc)
Tan
δ
Capacitance Change
Load Life Test @ 105°C
5,000hrs
Tan
δ
Leakage Current
6.3
8
0.30
10
13
0.24
16
20
0.20
25
32
0.16
35
44
0.14
50
63
0.14
*See Part Number System for Details
NAWU Series
Within ± 30% of initial measured value
Less than 300% of specified max. value
Less than specified max. value
PART NUMBER SYSTEM
NAWU 100 M 16V 4X6.3 J B F
Denotes RoHS Compliant
Termination Finish & Taping Code: B = Sn/Bi finish/13" reel
Peak Reflow Temperature Code: J = +240°C
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
first 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
Series
PEAK REFLOW
TEMPERATURE CODES
Code
J
Peak Reflow
Temperature
240°C
TERMINATION FINISH &
PACKAGING OPTIONS CODES
Code
Finish & Reel Size
B
Sn-Bi Finish & 13" Reel
LB
Sn-Bi Finish & 15" Reel
S
100% Sn Finish & 13" Reel
LS 100% Sn Finish & 15" Reel
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
27
