FT1006
Precision, Single Supply
Op Amp
Features
■
Description
The
FT1006
is the first precision single supply operational
amplifier. Its design has been optimised for single supply
operation with a full set of specifications at 5V.
Specifications at
±15V
are also provided.
The
FT1006
has a low offset voltage of 20µV, drift of
0.2µV/°C, offset current of 120pA, gain of 2.5 million,
common mode rejection of 114dB and power supply
rejection of 126dB.
Although supply current is only 340µA, a novel output
stage can source or sink in excess of 20mA while retaining
high voltage gain. Common mode input range includes
ground to accommodate low ground-referenced inputs
from strain gauges or thermocouples, and output can
swing to within a few millivolts of ground. If a higher
slew rate (in excess of 1V/µs) or micropower operation
(supply current down to 90µA) is required, the operating
currents can be modified by connecting an external
optional resistor to Pin 8.
For similar single supply precision dual and quad op amps,
please see the
FT1013/FT1014
data sheet. For micropower
dual and quad op amps, please see the
FT1078/FT1079
data sheet.
■
■
■
■
■
■
■
■
■
Single Supply Operation
Input Voltage Range Extends to Ground
Output Swings to Ground while Sinking Current
Guaranteed
Offset Voltage: 50µV Max
Guaranteed
Low Drift: 1.3µV/°C Max
Guaranteed
Offset Current: 0.5nA Max
Guaranteed
High Gain
5mA Load Current: 1.5 Million Min
17mA Load Current: 0.8 Million Min
Guaranteed
Low Supply Current: 520µA Max
Supply Current can be Reduced by a Factor of 4
Low Voltage Noise, 0.1Hz to 10Hz: 0.55µV
P-P
Low Current Noise—
Better than OP-07: 0.07pA/√Hz at 10Hz
High Input Impedance: 250MΩ Min
Minimum
Supply Voltage: 2.7V Min
Application
■
■
■
■
Low Power Sample-and-Hold Circuits
Battery-Powered Precision Instrumentation
Strain Gauge Signal Conditioners
Thermocouple Amplifiers
4mA to 20mA Current Loop Transmitters
Active Filters

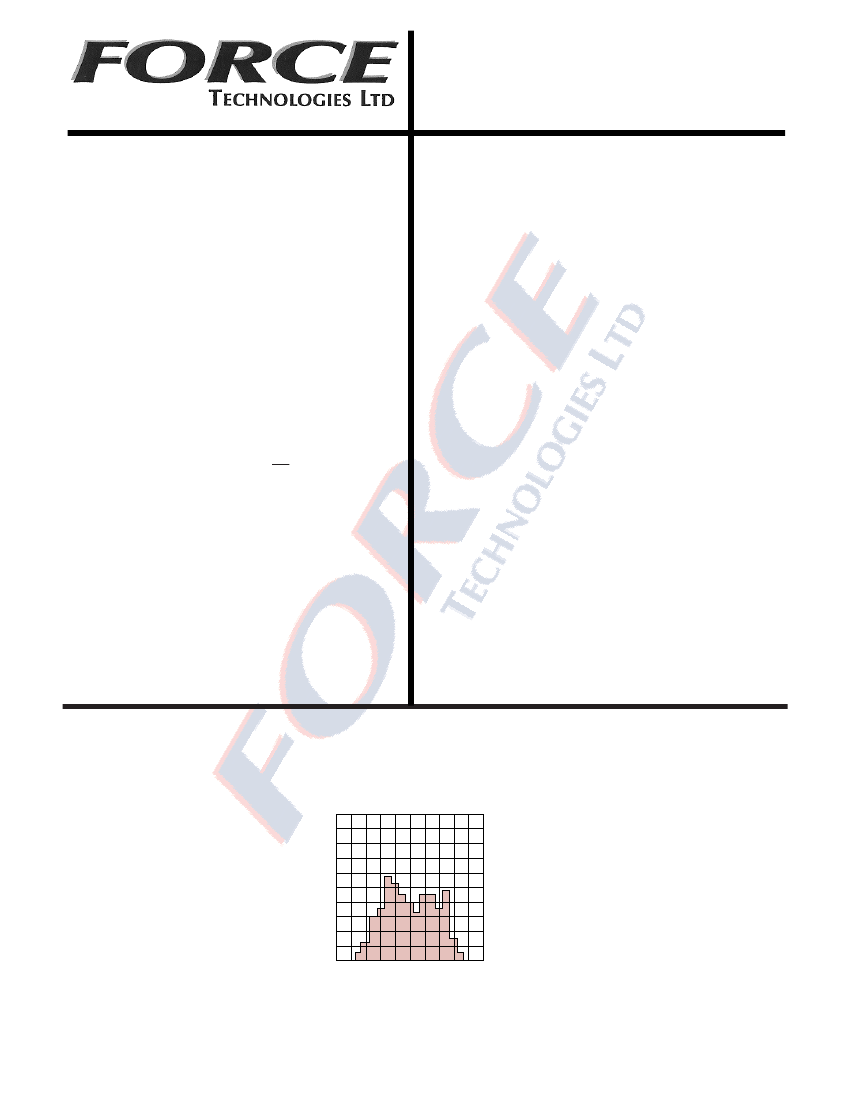

UNITS (%)
U
U
20
18
16
14
12
10
8
6
4
2
0
–80
40
80
–40
0
INPUT OFFSET VOLTAGE (µV)
V
S
= 5V, 0V
T
A
= 25°C
350 LT1006s TESTED
FROM TWO RUNS
J AND N PACKAGES
1
FT1006
Precision, Single Supply
Op Amp
Absolute Maximum Ratings
(Note 1)
Supply Voltage ......................................................
±22V
Input Voltage ............... Equal to Positive Supply Voltage
Input Voltage ............ 5V Below Negative Supply Voltage
Differential Input Voltage ......................................... 30V
Output Short-Circuit Duration .......................... Indefinite
Operating Temperature Range
FT1006AM/FT1006M .........................–
55°C to 125°C
FT1006AC/FT1006C/FT1006S8
................ 0°C to 70°C
Storage Temperature Range ................. – 65°C to 150°C
Lead Temperature (Soldering, 10 sec).................. 300°C
TOP VIEW
I
SY
SET
(NOTE 3)
8
V
OS
1
TRIM
–IN 2
+IN 3
–
+
4
7 V
+
6 OUT
5 V
OS
TRIM
(NOTE 4)
ORDER
PART NUMBER
FT1006AMH
FT1006MH
FT1006ACH
FT1006CH
2
3
4
+IN
V
–
N8 PACKAGE
8-LEAD PDIP
V
–
(CASE)
H PACKAGE
8-LEAD TO-5 METAL CAN
T
JMAX
= 150°C,
θ
JA
= 150°C,
θ
JC
= 45°C
T
JMAX
= 100°C,
θ
JA
= 130°C/W (N8)
T
JMAX
= 150°C,
θ
JA
= 200°C/W (S8)
J8 PACKAGE 8-LEAD CERDIP
T
JMAX
= 100°C,
θ
JA
= 130°C/W
Electrical Characteristics
SYMBOL
V
OS
∆V
OS
∆Time
I
OS
I
B
e
n
PARAMETER
Input Offset Voltage
FT1006S8
Long-Term Input Offset
Voltage Stability
Input Offset Current
Input Bias Current
Input Noise Voltage
Input Noise Voltage Density
i
n
Input Noise Current Density
Input Resistance
Differential Mode
Common Mode
0.1Hz to 10Hz
f
O
= 10Hz
f
O
= 1000Hz
f
O
= 10Hz
(Note 2)
CONDITIONS
V
S
= 5V, V
CM
= 0V, V
OUT
= 1.4V, T
A
= 25°C, unless otherwise noted.
FT1006AM/AC
MIN
TYP
MAX
20
0.4
50
FT1006M/C
MIN
TYP
30
8
0.5
0
0.5
15
0.15
10
0.55
32
25
23
22
0.08
100
300
4
32
25
0.9
25
MAX
80
400
UNITS
µV
µV
µV/Mo
µV/Mo
nA
nA
µV
P-P
nV/√Hz
nV/√Hz
pA/√Hz
MΩ
GΩ
FT1006S8
0.12
9
0.55
23
22
0.07
180
400
5
+
–
U

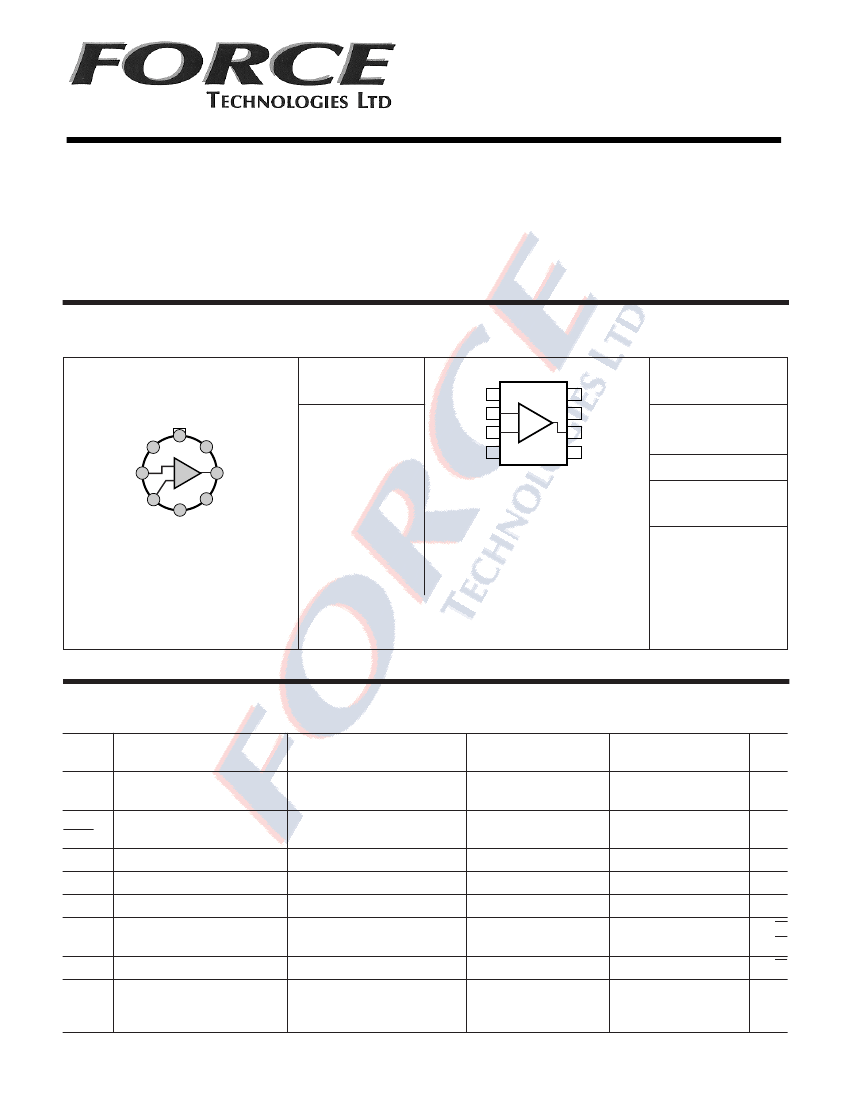

Package/Order Information
U
W
W W
U
W
TOP VIEW
V
OS
TRIM
–IN
1
8 I
SY
SET
(NOTE 3)
7 V
+
6
5
OUT
V
OS
TRIM
(NOTE 4)
ORDER
PART NUMBER
FT1006CN8
FT1006S8
S8 PART MARKING
1006
FT1006AMJ8
FT1006MJ8
FT1006ACJ8
FT1006CJ8
S8 PACKAGE
8-LEAD PLASTIC SO
