TRANSISTOR 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-1L1A, VESM, 3 PIN, BIP General Purpose Small Signal

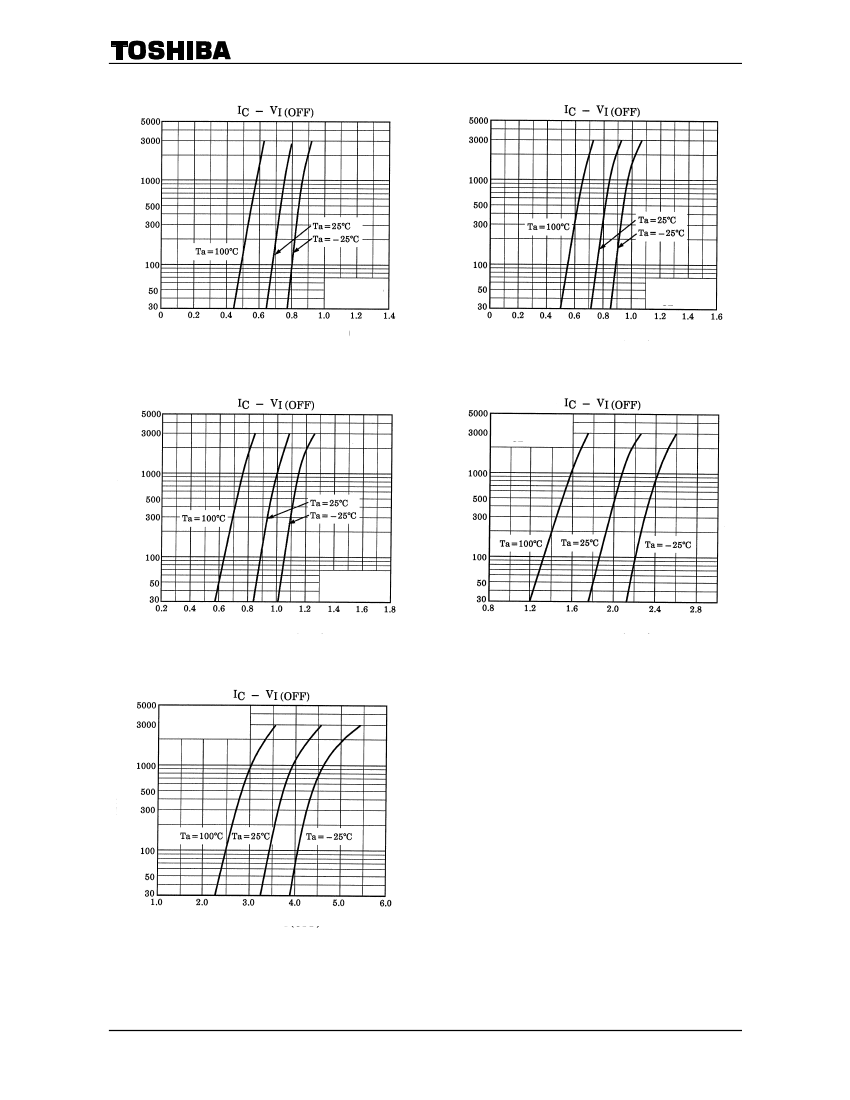

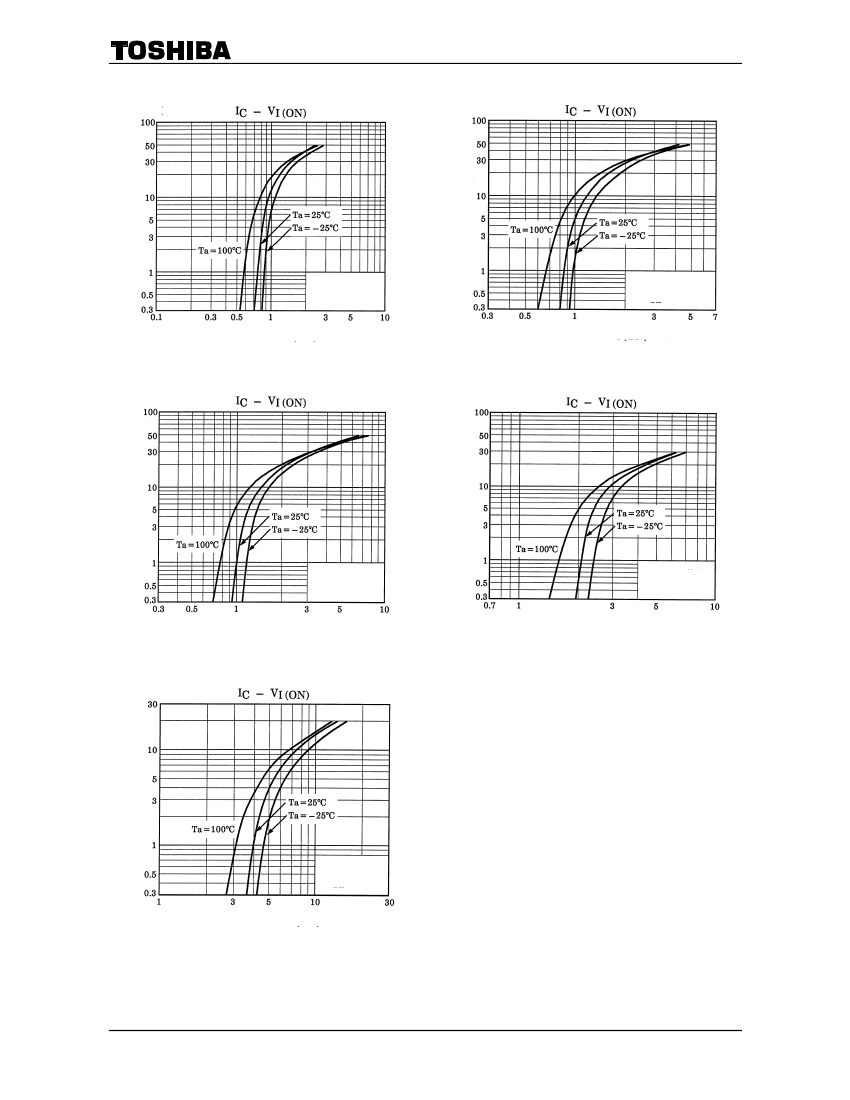

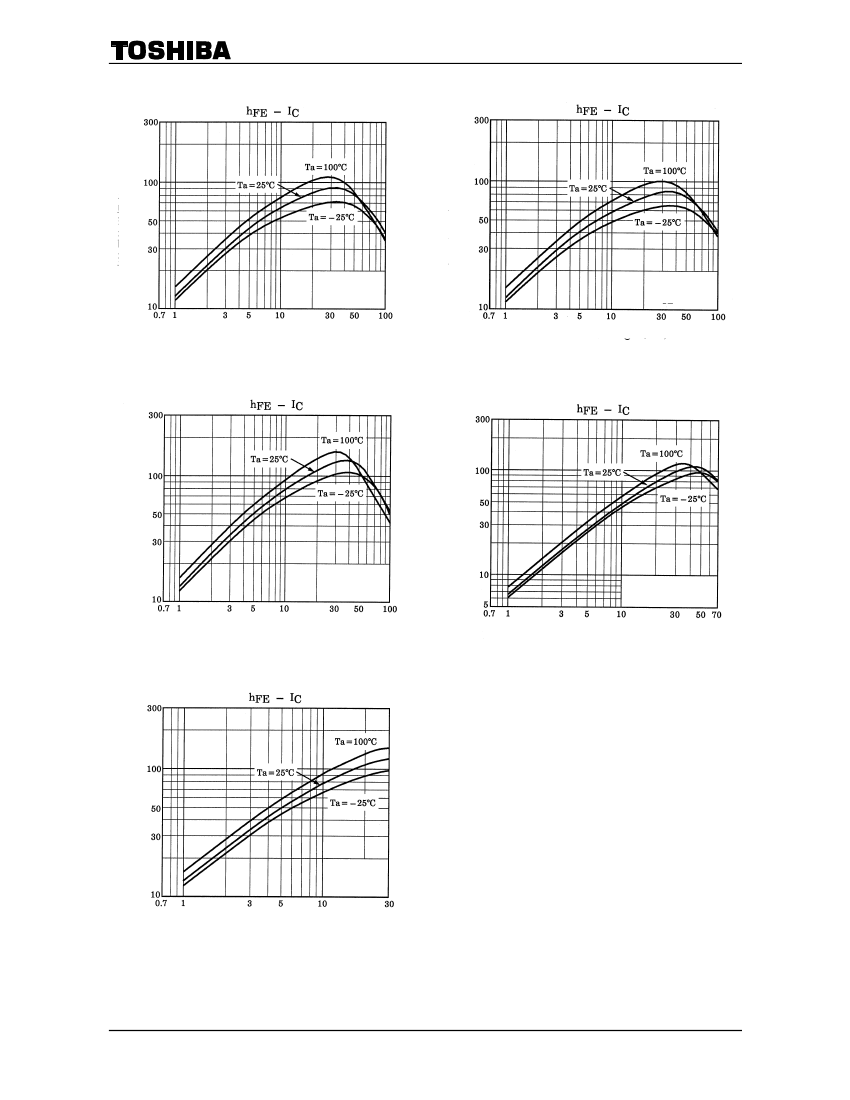

| Parameter Name | Attribute value |
| Maker | Toshiba Semiconductor |
| package instruction | SMALL OUTLINE, R-PDSO-F3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | BUILT-IN BIAS RESISTOR RATIO IS 10 |
| Maximum collector current (IC) | 0.1 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 50 |
| JESD-30 code | R-PDSO-F3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 0.15 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | FLAT |
| Terminal location | DUAL |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 250 MHz |
| RN1114FV | RN1117FV | RN1115FV | RN1116FV | RN1118FV | |
|---|---|---|---|---|---|
| Description | TRANSISTOR 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-1L1A, VESM, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-1L1A, VESM, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-1L1A, VESM, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-1L1A, VESM, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 100 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-1L1A, VESM, 3 PIN, BIP General Purpose Small Signal |
| package instruction | SMALL OUTLINE, R-PDSO-F3 | SMALL OUTLINE, R-PDSO-F3 | SMALL OUTLINE, R-PDSO-F3 | SMALL OUTLINE, R-PDSO-F3 | SMALL OUTLINE, R-PDSO-F3 |
| Contacts | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | BUILT-IN BIAS RESISTOR RATIO IS 10 | BUILT-IN BIAS RESISTOR RATIO IS 0.47 | BUILT-IN BIAS RESISTOR RATIO IS 4.54 | BUILT-IN BIAS RESISTOR RATIO IS 2.12 | BUILT-IN BIAS RESISTOR RATIO IS 0.21 |
| Maximum collector current (IC) | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Collector-emitter maximum voltage | 50 V | 50 V | 50 V | 50 V | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 50 | 30 | 50 | 50 | 50 |
| JESD-30 code | R-PDSO-F3 | R-PDSO-F3 | R-PDSO-F3 | R-PDSO-F3 | R-PDSO-F3 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Maximum power dissipation(Abs) | 0.15 W | 0.15 W | 0.15 W | 0.15 W | 0.15 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 250 MHz | 250 MHz | 250 MHz | 250 MHz | 250 MHz |
| Maker | Toshiba Semiconductor | - | - | Toshiba Semiconductor | Toshiba Semiconductor |
