8732S1HZQE: DescriptionPUSHBUTTON SWITCH, SPST, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size73KB，1 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

8732S1HZQE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8732S1HZQE	-	-	View	Buy Now

8732S1HZQE Overview

PUSHBUTTON SWITCH, SPST, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT

8732S1HZQE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	15 weeks
Actuator angle
Actuator length	0.39 inch
Actuator stroke	8.89 mm
Actuator type	PLUNGER
Other features	ROHS COMPLIANT
body height	20.08 mm
Body length or diameter	9.53 mm
Nozzle length	0.25 inch
Casing type	5/16-24
center contact material	COIN SILVER
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@125VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Contact function	OFF-(ON)
Contact resistance	0.03 mΩ
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	100000 Cycle(s)
End contact material	COIN SILVER
End contact plating	SILVER
Insulation resistance	1000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Manufacturer's serial number	8700
Installation features	PANEL MOUNT-THREADED
Maximum operating force	0.61 N
Maximum operating temperature	65 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.22 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

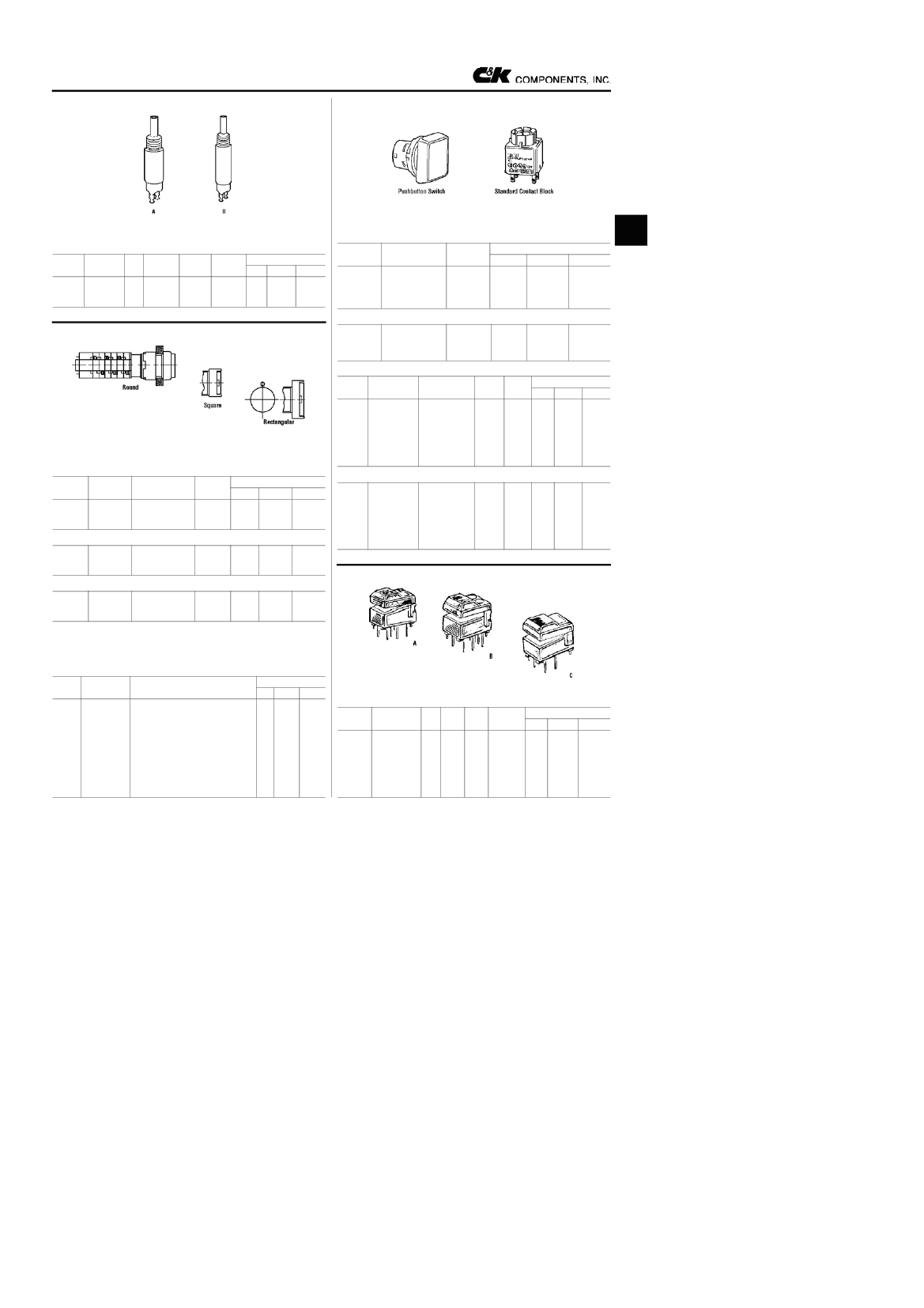

Preview

Download Datasheet

View All

Pushbutton Switches

8700 Series Overtravel Pushbutton Switches

Ñ NEW Ñ

C

&

K

Components

Rafix 16 Non-Illuminated

and Illuminated Pushbutton Switches

Contact Rating:

Q contact material Ñ 1 amp at 120 VAC or 28 VDC; B or G contact material Ñ 0.4 VA max. at 20 VAC or

VDC max.

Case:

Diallyl phthalate (UL9V-0).

Plunger:

8731 Ñ 0.390 brass, nickel plated with or without internal o-ring;

8732 Ñ 0.390 PBT polyester, black.

Contacts and Terminals:

Q contact material Ñ Coin silver, silver plated; B contact

material Ñ Gold over nickel, gold plated; G contact material Ñ Silver over silver, gold plated.

Operating Temperature:

Ð30¡C to 65¡C.

Electrical Life:

100,000 actuations minimum at full load.

Stock

No.

676-9350

676-9351

676-9352

676-9353

Mfr.Õs

Type

8732S1HZBE

8732S1HZQE

8731SHZBE

Fig.

A

B

Description

SPST

Switch

Function*

Off-Mom.

Actuation

Force (Oz.)

7.0

2.6

EACH

1-99

4.45

4.62

4.14

7.81

100-499

3.93

4.08

3.66

6.90

500-999

3.62

3.77

3.37

6.37

Contact Rating:

Silver Ñ 6 amps at 250 VAC; Gold Ñ 250 mA at 42 VAC/VDC.

Contact Resistance:

Silver Ñ

20 milliohms; Gold Ñ <50 milliohms.

Operating Temperature:

Non-illuminated Ñ Ð25¡C to 70¡C; Ð13¡F to 158¡F;

Illuminated Ñ Ð25¡C to 55¡C; Ð13¡F to 131¡F.

Operating Life:

Latching Ñ 100,000 cycles; Momentary Ñ

2,000,000 cycles.

Terminals:

Quick connect 2.0

´

0.8 tin plated.

Degree of Protection:

IP65, dustproof, water splash, and

dew condensation.

Non-Illuminated Pushbutton Switches with Flush Lens

Stock

No.

676-9178

676-9179

676-9180

676-9181

676-9182

676-9183

Mfr.Õs

Type

1.30070.251/0104

1.30070.251/0215

1.30070.251/0301

1.30070.251/0403

1.30070.251/0525

1.30070.251/0617

Color

Black

White

Red

Yellow

Green

Blue

EACH

1-99

6.40

7.16

6.40

100-499

5.46

6.11

5.46

500-999

4.94

5.53

4.94

5

*Mom.=Momentary.

Illuminated Pushbutton Switches with Flush Lens

676-9194

676-9195

676-9196

676-9197

676-9198

1.30070.001/1002

1.30070.001/1306

1.30070.001/1403

1.30070.001/1505

1.30070.001/1607

Colorless

Red

Yellow

Green

Blue

8.47

10.04

8.47

6.81

8.07

6.81

6.16

7.30

6.16

Lumotast 75 Series Lighted Pushbutton Switches

Standard Contact Block for Non-Illuminated Pushbutton Switches with Flush Lens

Stock

No.

676-9184

676-9185

676-9186

676-9187

676-9188

676-9189

676-9190

676-9191

676-9192

676-9193

Mfr.Õs

Type

1.20122.021/0000

1.20122.022/0000

1.20122.023/0000

1.20122.061/0000

1.20122.062/0000

1.20122.031/0000

1.20122.032/0000

1.20122.033/0000

1.20122.071/0000

1.20122.072/0000

Description

SPST/1 NC and 1 NO

DPST/2 NO

DPST/2 NC

SPST/1 NC and 1 NO

DPST/2 NO

SPST/1 NC and 1 NO

DPST/2 NO

DPST/2 NC

SPST/1 NC and 1 NO

DPST/2 NO

Switch

Function*

Off-Mom.

Off-On

Off-Mom.

Off-On

Contact

Material

Silver

Gold

EACH

1-99

10.11

8.54

12.58

11.60

18.69

15.75

16.34

17.57

100-499

8.13

6.87

10.14

9.33

15.02

12.66

13.14

14.13

500-999

7.36

6.22

9.17

8.43

13.58

11.45

11.89

12.78

Series 75 panel-mounted switches include momentary and alternate action lighted pushbuttons and keylocks. Each is

designed to mount in a 16.2 mm diameter panel cutout. Units are rated at 4 amps at 120/240 VAC, and are available in

one, two, three, and four pole models. Standard soldering terminals are silver (gold contacts available on request). The

Lumotast 75 Series switches are recognized by UL, CSA, and VDE. Operating life at 250 VAC; 2 amps exceeds

200,000 operations. Cataloged units feature a black collar.

Degree of Protection:

IP40. IP65 models also available.

18 mm Round Bezel and Lens

Stock

No.

676-4124

676-4125

676-4126

676-4127

Mfr.Õs

Type

1.15108.451

1.15108.452

1.15108.551

1.15108.552

Description

SPST/1 NC and 1 NO

DPST/2 NC and 2 NO

SPST/1 NC and 1 NO

DPST/2 NC and 2 NO

Switch

Function*

Off-Mom.

Off-On

EACH

1-99

22.80

33.19

26.97

37.60

100-499

20.90

30.42

24.72

34.46

500-999

19.09

28.08

22.82

31.83

Standard Contact Block for Illuminated Pushbutton Switches with Flush Lens

676-9199

676-9200

676-9201

676-9202

676-9203

676-9204

676-9205

676-9206

676-9207

676-9208

1.20122.001/0000

1.20122.002/0000

1.20122.003/0000

1.20122.041/0000

1.20122.042/0000

1.20122.011/0000

1.20122.012/0000

1.20122.013/0000

1.20122.051/0000

1.20122.052/0000

SPST/1 NC and 1 NO

DPST/2 NO

DPST/2 NC

SPST/1 NC and 1 NO

DPST/2 NO

SPST/1 NC and 1 NO

DPST/2 NO

DPST/2 NC

SPST/1 NC and 1 NO

DPST/2 NO

Off-Mom.

Off-On

Off-Mom.

Off-On

Silver

Gold

12.58

10.62

16.00

18.95

15.87

17.96

15.16

18.21

20.04

10.14

8.56

12.88

15.25

12.76

14.47

12.21

14.65

16.12

9.17

7.74

11.66

13.81

11.55

13.08

11.04

13.25

14.58

18 mm Square Bezel and Lens

676-4128

676-2129

676-4130

676-4131

1.15108.251

1.15108.252

1.15108.351

1.15108.352

SPST/1 NC and 1 NO

DPST/2 NC and 2 NO

SPST/1 NC and 1 NO

DPST/2 NC and 2 NO

Off-Mom.

Off-On

22.57

22.55

27.24

37.62

20.69

20.67

24.98

34.48

19.10

19.08

22.82

31.83

*Mom.=Momentary.

18 mm

´

24 mm Rectangular Bezel and Lens

676-4132

676-4133

676-4134

676-4135

1.15108.051

1.15108.052

1.15108.151

1.15108.152

SPST/1 NC and 1 NO

DPST/2 NC and 2 NO

SPST/1 NC and 1 NO

DPST/2 NC and 2 NO

Off-Mom.

Off-On

28.26

22.55

22.93

37.62

18.31

20.67

14.85

34.48

16.55

19.08

13.42

31.83

MP Series Mechanical Pushbutton Switches

*Mom.=Momentary. Note:

Each of the above switches must be ordered with an appropriate colored lens cap, light

diffuser, and incandescent lamp. Please see ÒaccessoriesÓ below.

Accessories

Ordering Details:

A Lumotast 75 Series lighted pushbutton assembly consists of the basic switch, colored lens cap,

legend insert/diffuser and lamp. For example, to order a 24 mm square red latching lighted pushbutton with two poles and

12 V lamp one would collectively order Mfr.'s Type 1.15108.352, 5.49275.036/1303, 5.73013.000/0202, and

1.90100.022. The color blue is also available on special order.

Stock

No.

676-4160

676-4161

676-4162

676-4163

676-4164

676-4165

676-4166

676-4167

676-4168

676-4169

676-4170

676-4171

676-4172

676-4173

676-4174

Mfr.Õs

Type

5.49257.011/1002

5.49257.011/1303

5.49257.011/1502

5.49275.036/1002

5.49275.036/1303

5.49275.036/1502

5.49275.032/1002

5.49275.032/1303

5.49275.032/1502

5.72050.000/0202

5.73013.000/0202

5.73012.000/0202

1.90100.021

1.90100.022

1.90100.023

Description

EACH

1-99

100-499

.78

.46

.78

.67

.48

.70

.69

.39

.53

.51

4.43

5.10

500-999

.70

.42

.70

.63

.44

.63

.36

.47

.46

4.05

4.66

Contact Rating:

0.4 VA max. at 20 VAC or VDC max.

Switch Function:

SPDT momentary.

Case:

Glass filled nylon.

Cap:

Polycarbonate-ABS blend.

Contacts and Terminals:

Brass with gold plate over nickel plate.

Operating Temperature:

Ð30¡C to 65¡C.

Operating Force:

150 grams typical.

Electrical Life:

1,000,000 actuations minimum at full load.

Stock

No.

676-4112

676-4113

676-4114

676-4115

676-4117

676-4119

676-4120

676-4121

676-4122

676-4123

Mfr.Õs

Type

MPO1R113CBE

MPO1R123CBE

MPO1R2133CBE

MPO1R2233CBE

MPO1S01CBE

MPO1S113CBE

MPO1S123CBE

MPO1S2133CBE

MPO1S2233CBE

MPO1S2236CBE

Fig.

A

B

C

A

B

Cap

Width

0.486

0.679

Cap

Color

White

Black

White

Black

White

Black

White

Black

LED

Color(s)

Red

Red, Red

Ñ

Red

Red, Red

Red, Green

EACH

1-99

3.76

4.38

4.75

5.12

3.39

3.82

4.44

4.80

4.62

4.74

100-499

3.35

3.90

4.23

4.54

3.02

3.40

3.95

4.28

4.11

4.23

500-999

3.06

3.57

3.88

4.16

2.76

3.11

3.61

3.90

3.77

3.85

18 mm Round Lens Cap, Clear

.88

18 mm Round Lens Cap, Red

.53

18 mm Round Lens Cap, Green

.88

18 mm Square Lens Cap, Clear

.79

18 mm Square Lens Cap, Red

.56

18 mm Square Lens Cap, Green

.81

18 mm

´

24 mm Rectangular Lens Cap, Clear

.80

18 mm

´

24 mm Rectangular Lens Cap, Red

.80

18 mm

´

24 mm Rectangular Lens Cap, Green

.46

18 mm Round Legend Insert/Diffuser

.58

18 mm Square Legend Insert/Diffuser

.59

18 mm

´

24 mm Rectangular Legend Insert/Diffuser

.59

6 V/0.3 W T4.5 Incandescent Lamp

4.98

12 V/0.48 W T4.5 Incandescent Lamp

4.98

24 V/0.48 W T4.5 Incandescent Lamp

5.72

Turn To Section 1 For Allied Office Addresses and Local Phone Numbers

ALLIED

c

201

8732S1HZQE Related Products

	8732S1HZQE	8731SHZQE
Description	PUSHBUTTON SWITCH, SPST, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT	PUSHBUTTON SWITCH, SPST, MOMENTARY, 1A, 28VDC, PANEL MOUNT-THREADED, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	not_compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	15 weeks	15 weeks
Actuator length	0.39 inch	0.39 inch
Actuator stroke	8.89 mm	7.874 mm
Actuator type	PLUNGER	PLUNGER
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body height	20.08 mm	26.44 mm
Body length or diameter	9.53 mm	9.53 mm
Nozzle length	0.25 inch	0.25 inch
Casing type	5/16-24	5/16-24
center contact material	COIN SILVER	COIN SILVER
Center contact plating	SILVER	SILVER
Contact (AC) maximum rated R load	1A@125VAC	1A@125VAC
Maximum contact current (AC)	1 A	1 A
Maximum contact current (DC)	1 A	1 A
Contact (DC) maximum rated R load	1A@28VDC	1A@28VDC
Contact function	OFF-(ON)	OFF-(ON)
Contact resistance	0.03 mΩ	0.03 mΩ
Maximum contact voltage (AC)	125 V	125 V
Maximum contact voltage (DC)	28 V	28 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V
Electrical life	100000 Cycle(s)	100000 Cycle(s)
End contact material	COIN SILVER	COIN SILVER
End contact plating	SILVER	SILVER
Insulation resistance	1000 Ω	1000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE
JESD-609 code	e4	e4
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	0.61 N	1.31 N
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-30 °C	-30 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SPST	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)
Terminal length	0.22 inch	0.22 inch
Terminal material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER

Recommended Resources

Temperature controllable electric blanket temperature controller circuit

Relay protection operation power automatic switching circuit

OCL power amplifier composed of LM2876

LM2941, 2941C typical application circuit diagram

Simple loudness control circuit

Finished pen tip counting circuit

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
