54S251/BFA datasheet, PDF - EEWORLD Datasheet

54S251/BFA: DescriptionMultiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16; Categorylogic logic; File Size197KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

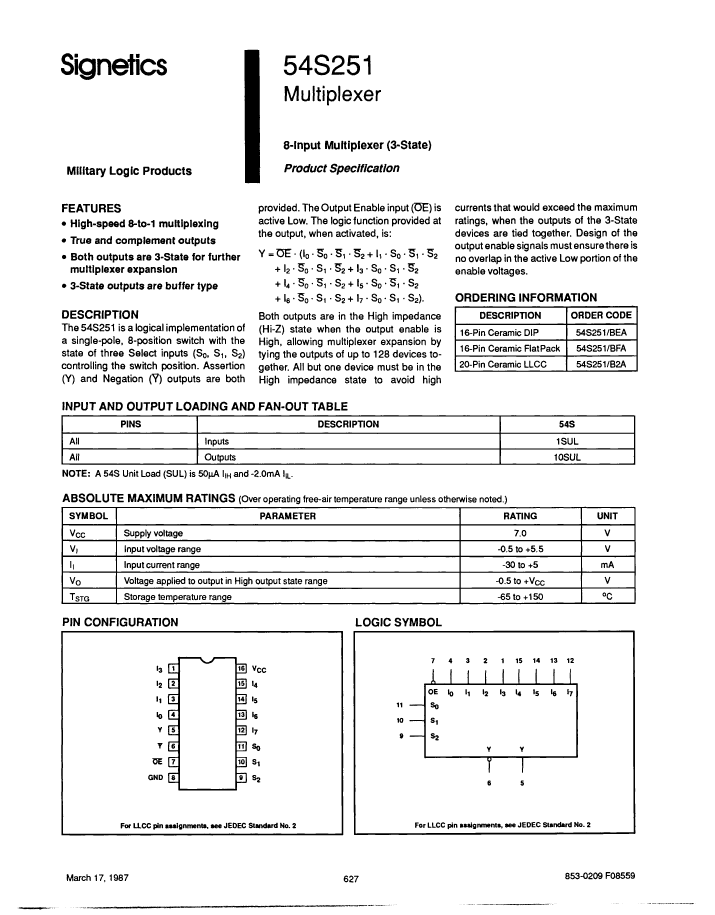

54S251/BFA Overview

Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-CDFP-F16
Load capacitance (CL)	50 pF

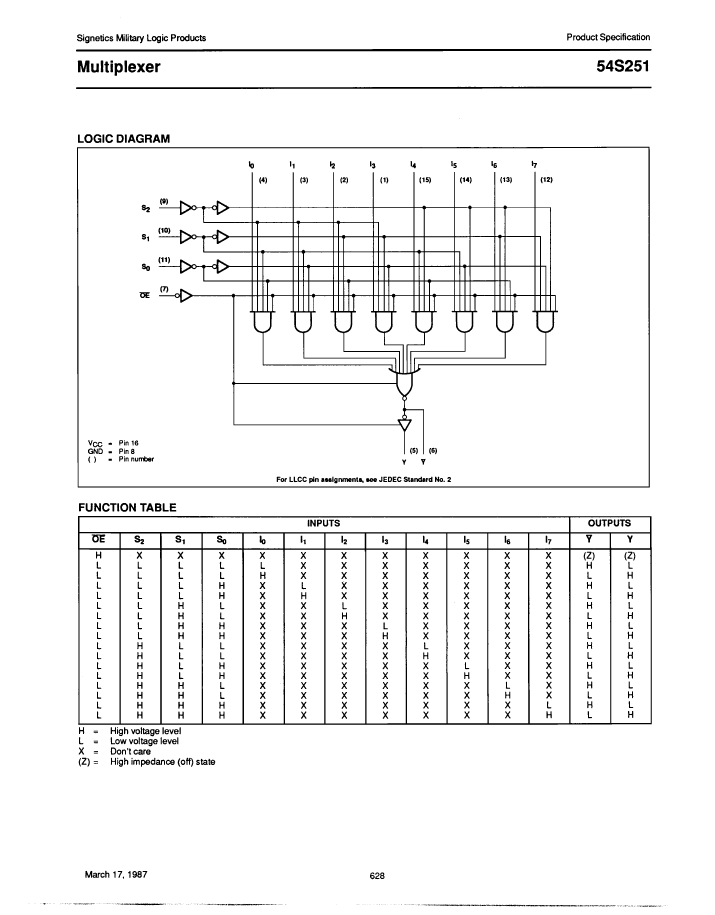

Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK

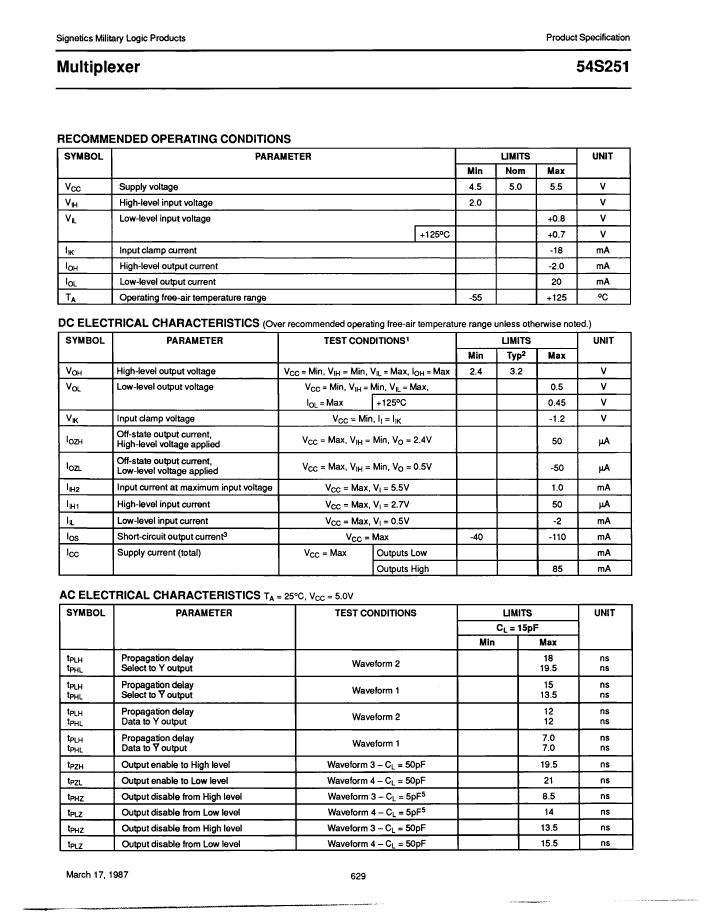

Maximum supply current (ICC)	85 mA

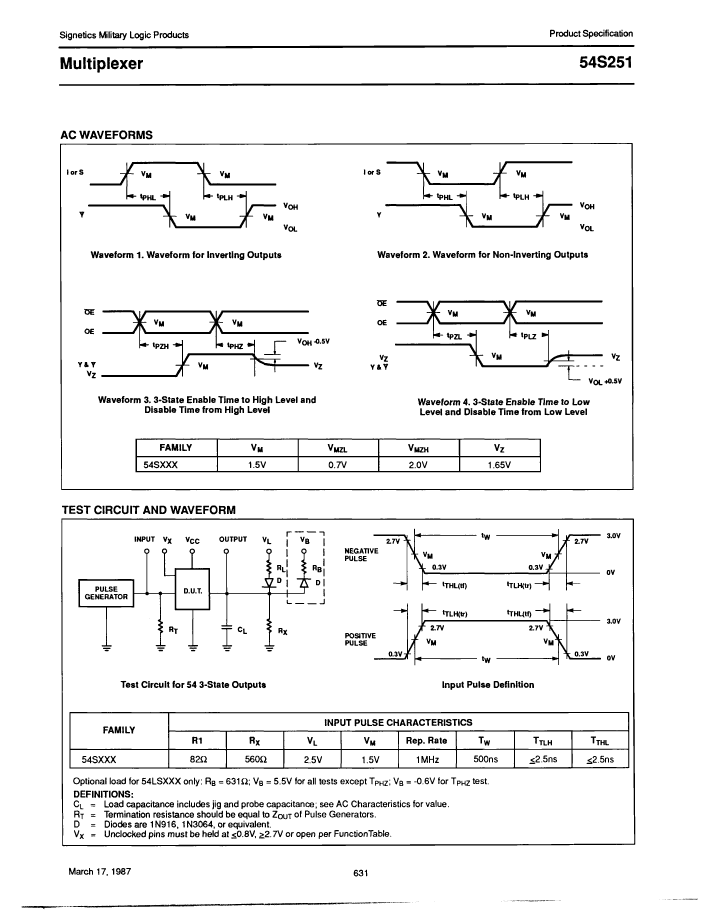

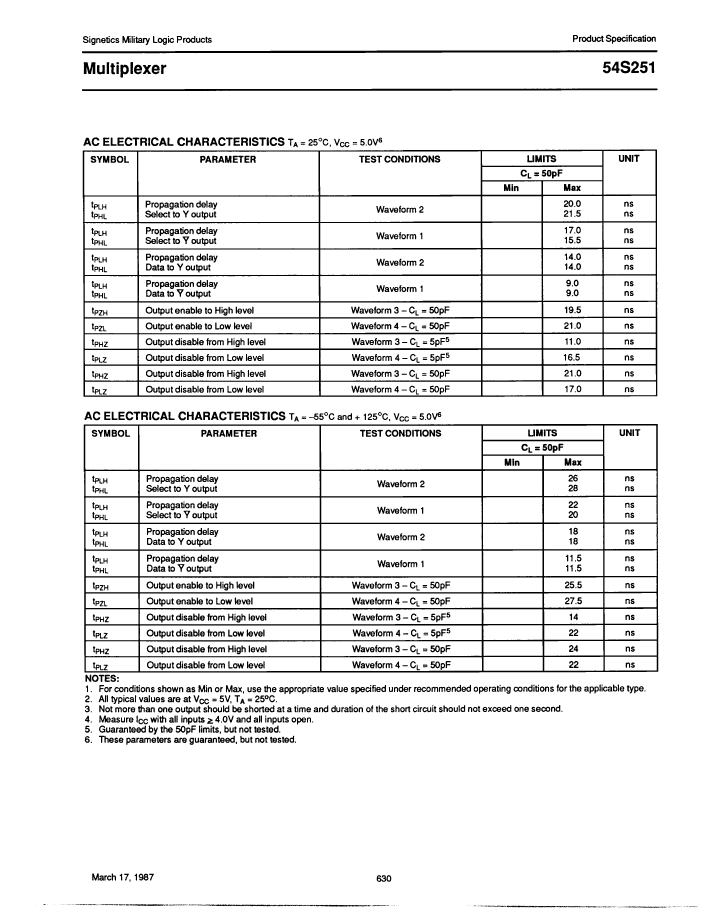

propagation delay (tpd)	28 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

	54S251/BFA	54S251/B2A
Description	Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CDFP16	Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, CQCC20
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
series	S	S
JESD-30 code	R-CDFP-F16	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1
Number of entries	8	8
Output times	1	1
Number of terminals	16	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	85 mA	85 mA
propagation delay (tpd)	28 ns	28 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD
Terminal location	DUAL	QUAD
