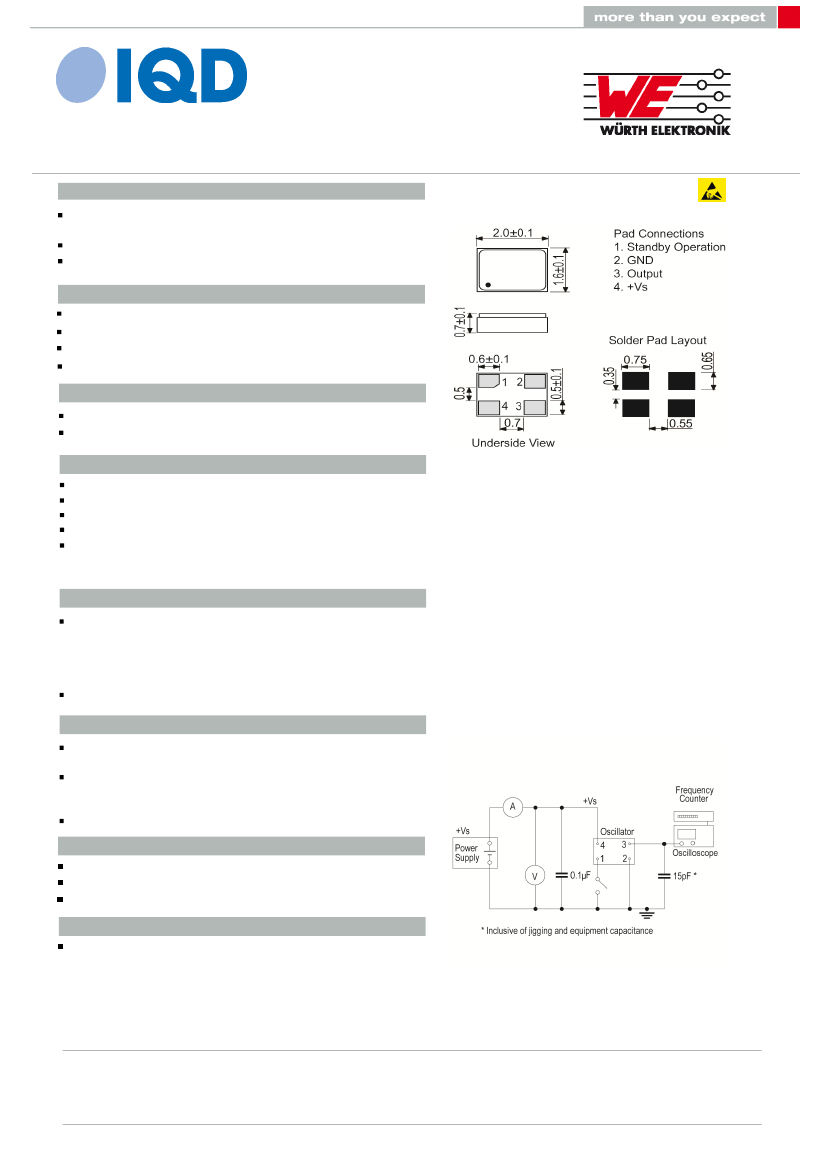

Crystal Clock Oscillator Specification
IQD Part No. + Packaging: LFSPXO082179RL3K
Wurth Part No.
830208217909
Description
Standard 2 x 1.6 crystal oscillator in a ceramic package with a
seam sealed metal lid, hermetically sealed
Model
IQXO-542
Model Issue number
3
Frequency Parameters
Outline (mm)
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
30.0MHz
±25.00ppm
-20.00 to 70.00°C
±5ppm
Supply Voltage
Current Draw
Output Details
1.8V ±10%
5.000mA
CMOS
Output Compatibility
Drive Capability
15pF max
Rise and Fall Time
5.0ns max
45/55%
Duty Cycle
Start up Time: 10ms max.
1.1ms typ to 90% of final amplitude (Under ideal conditions @
25°C)
Output Control
Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables
oscillator output
Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Standby Current: 10µA max, 0.6µA typ @ 25°C
Environmental Parameters
Test Circuit
Impact: Weight of 10g dropped to centre of part from a height
of 6mm
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs)
Storage Temperature Range: –40 to 85°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: RL3K
Pack Size: 3,000
Tape & reel in accordance with EIA-481-D
