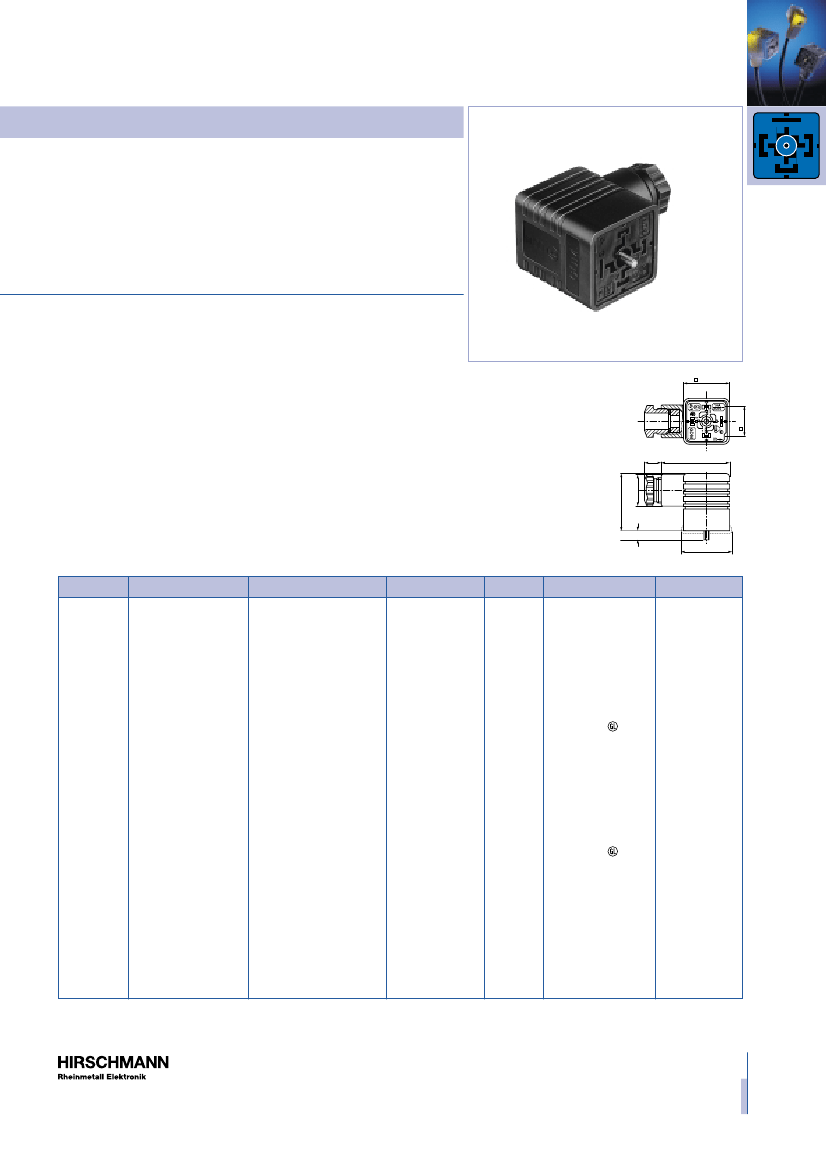

DIN 43650-A/ISO 4400
Cable socket, self-assembly
Product description
• durable angled connectors, dust
and splash protected
(IEC 60529 – IP 65)
• vibration-proof locking using
a central screw available for
tool-free actuation or as a
knurled screw
Product features
• hydraulic, pneumatic,
electromagnetic actuators;
e.g. solenoid valves, pressure
sensors, flow indicators.
• heat eningeering: gas appliance
and oil burner controls (GDMW)
to DIN VDE 0722/DIN 3394 T1
• wide range of cable diameters
from 4.5 mm to 14 mm using
different PG glands
• patent-protected combiantio
terminal for connecting flex wire
with wire end ferrules or fixture
of fork-type cable shoes/eye
directly under the screw head
• in appliances and equipment
subject to vibrations, e.g.
track-bound vehicles, building
machinery, conveying systems,
using the crimp connection
method (GDMC)
Further information
see technical data in the catalog
Rectangular connectors
for automation technique
DS 280 490-440.
GDM Series
27,5
≈10,0
41,0
34,2
GDM 2009
5,5
Ø
19,0
(30,5)
poles
2+
A
type
GDM 2009
GDM 2009 J
GDM 2011
GDM 2011 J
GDM 2014 J
GDM 3009
GDM 3009 J
GDM 3011
GDM 3011 J
GDM 3014 J
GDMF 3009
GDMW 3011 CF
GDMW 3011 DF
cable gland
PG 9
PG 9
PG 11
PG 11
ISO 228-G1/2(R1/2’’)
PG 9
PG 9
PG 11
PG 11
ISO 228-G1/2 (R1/2’’)
PG 16
PG 11
PG 11
PG 9
PG 11
PG 11
type or connection color
S
S / CS / CE
S
S / CS / CE
S / CS / CE
S
S / CS / CE
S
S / CS / CE
S / CS / CE
S
S
S
C
C
C
black
grey
black
grey
black
grey
black
grey
black
black
grey
black
grey
black
grey
black
grey
black
black
black
grey
black
grey
black
grey
black
grey
black
approvals
order no.
931 965-100
931 965-106
931 236-100
931 236-106
931 957-100
931 957-106
932 106-100
932 106-106
932 107-100
931 969-100
931 969-106
932 214-100
932 214-106
931 952-100
931 952-106
932 109-100
932 109-106
932 110-100
933 944-100
932 545-200
932 545-206
932 547-200
932 547-206
933 583-100
933 583-106
933 364-100
933 364-106
931 963-100
GCK
GCKH
GCK
GCKH
GKH
GCK
GCKH
GCK
GCKH
GKH
–
3+
A
GK
GK
–
–
2+/3+
A
GDMC 0009 JPT
GDMC 0011 JPT
GDMC 3011
GKH
S = screw; CS = cable shoe; CE = cable eye; C = crimps
18,0
Automation Technology
25
GDM Series
DIN 43650-A/ISO 4400

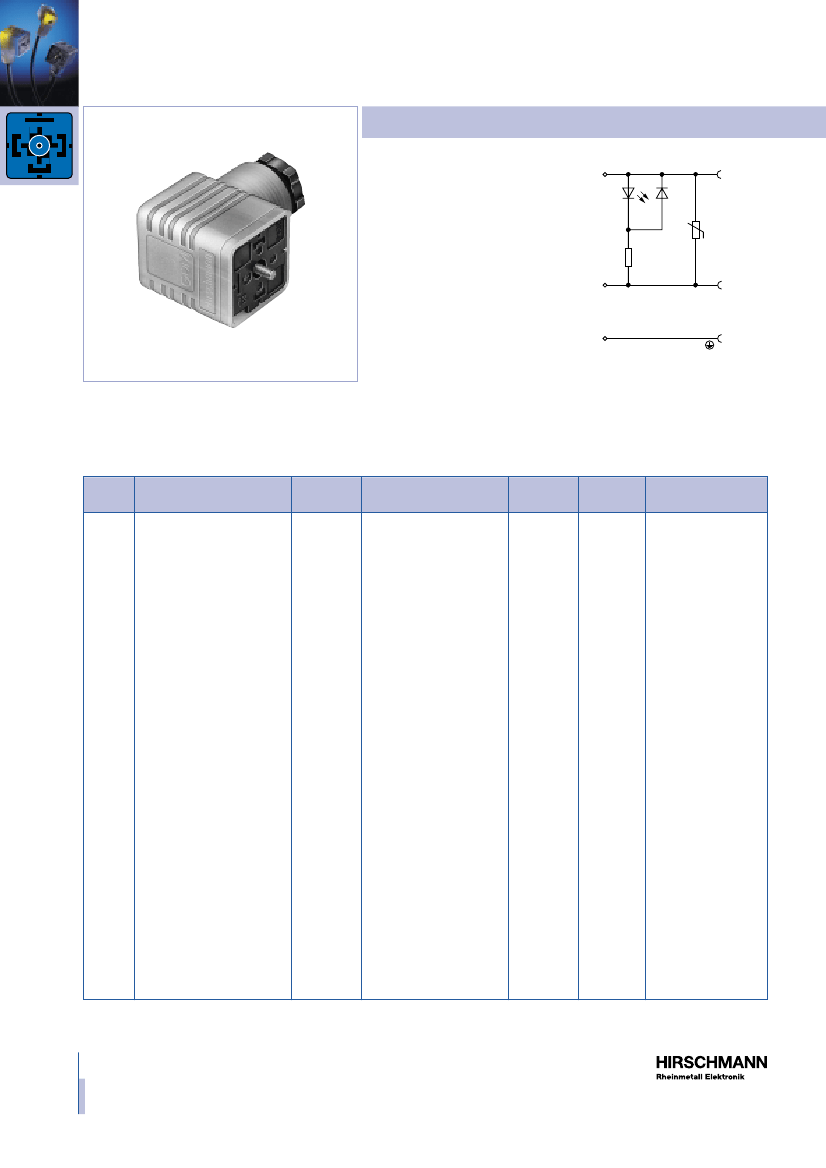

Cable socket with electronic insert
Product features
• with integrated electronic cir-
cuits such as recitifiers, optical
status displays, protective
elemts etc. for the connectin
of appliances or elements which
do not have these functions
integrated (GDML, GDME)
• integrated electronic circuitry in
many standard versions or ac-
cording to your specifications
Further information
see technical data in the catalog
Rectangular connectors
for automation technique
DS 280 490-440.
(+)
~
(+) 1
~
yellow
u
(–)
~
(–) 2
~
GDML 2011 LED 24 VR YE
poles
type
operating
voltage
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 24 V
UC 24 V
UC 24 V
UC 24 V
UC 24 V
DC 24 V
DC 24 V
UC 24 V
UC 24 V
UC 24 V
UC 24 V
DC 48 V
UC 48 V
UC 48 V
description
LED color
Pg color
order no.
2+
A
GDML 2009 RC 230 1
GDML 2011 GB1
GDML 2011 GBC
GDML 2011 GE1 G
GDML 2011 GB1 LED 24
GDML 2011 LED 24 GB
GDML 2011 LED 24
GDML 2011 LED 24 YE
GDML 2011 LED 24 HH-P
GDML 2011 LED 24 HH
GDML 2011 LED 24 HH YE
GDML 2011 LED 24 VR YE
GDML 2011 LED 24 VR
GDML 2011 J 2 LED 24
GDML 2011 J 2 LED 24 VR
GDML 2011 LED 48 HH
GDML 2011 LED 48 VR
GDML 2011 LED 48 VR YE
RC element
bridge-type rectifier
bridge-type rectifier
and capacitor
half-wave rectifier
bridge-type rectifier
and varistor
LED rectifier
and varistor
function indicator with
freewheeling diode
function indicator with
freewheeling diode
half-wave rectifier
function indicator with
protective circuit
function indicator with
protective circuit
function indicator with free-
wheeling diode and varistor
function indicator with free-
wheeling diode and varistor
function indicator
double LED
function indicator
double LED and varistor
function indicator with
protective circuit
function indicator with free-
wheeling diode and varistor
function indicator with free-
wheeling diode and varistor
red
red
red
yellow
red
red
yellow
yellow
red
red
red
red
red
yellow
black
black
grey
black
grey
black
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
black
grey
black
grey
black
black
grey
black
grey
933 802-112
932 329-100
932 329-106
932 923-100
932 923-106
932 330-100
932 446-002
932 446-003
932 501-002
932 501-003
932 332-002
932 332-003
932 527-002
932 527-003
932 444-002
932 444-003
932 336-002
932 336-003
932 640-002
932 640-003
933 737-212
933 737-712
932 521-002
933 996-100
933 996-106
933 997-100
933 997-106
932 648-002
933 924-212
933 924-712
933 926-212
933 926-712
26
Automation Technology
DIN 43650-A/ISO 4400
Cable socket with electronic insert (continuation)
GDM Series
poles
type
operating
voltage
UC 48 V
UC 120 V
UC 120 V
UC 120 V
UC 250 V
UC 250 V
UC 250 V
DC 24 V
DC 24 V
UC 250 V
description
LED color
Pg color
order no.
2+
A
GDML 2011 GB1 LED 48
GDML 2011 LED 120 YE
GDML 2011 LED 120 VR YE
GDML 2011 J 120 LG
GDML 2011 LED 230 YE
GDML 2011 LED 230 VR YE
GDML 2011 J LG 230
bridge-type rectifier
and varistor
function indicator
red
yellow
function indicator with free- yellow
wheeling diode and varistor
glow lamp
function indicator
yellow
function indicator with free- yellow
wheeling diode and varistor
glow lamp
function indicator for
pressure switch
function indicator for
pressure switch
function indicator for
pressure switch
red
double LED
red/green
double LED
red/green
3+
A
GDML 3011 LED 24 BO
GDML 3011 LED 24 RG
GDML 3011 LED 230 RG
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
black
grey
933 925-212
933 925-712
933 738-212
933 738-712
933 927-212
933 927-712
933 998-100
933 998-106
933 739-212
933 739-712
933 916-212
933 916-712
933 999-100
933 999-106
932 856-002
932 856-003
932 857-002
933 748-212
933 748-712

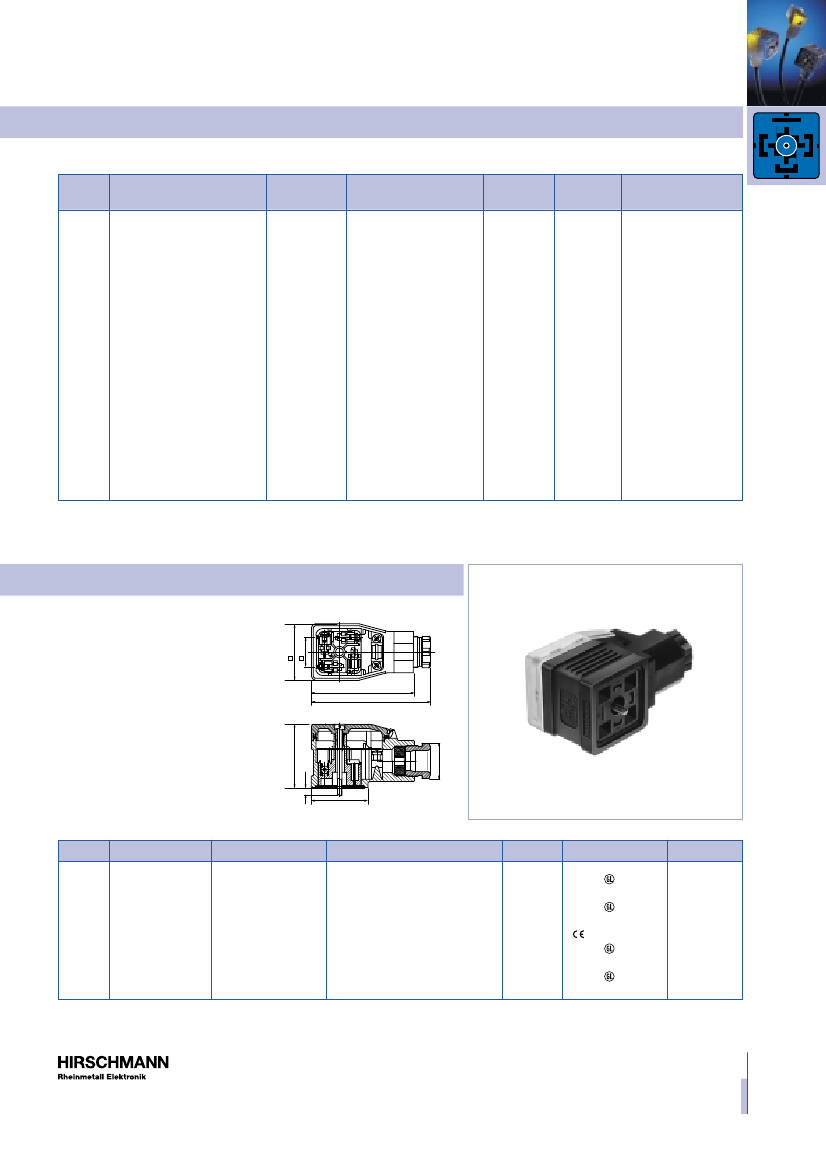

Cable socket to accept electronic inserts
Product features
• cable socket with transparent
cover
• strain relief
• possibility to fit electronic
inserts
Variation
with integral timer circuit
Further information
see technical data in the catalog
Rectangular connectors
for automation technique
DS 280 490-440.
2
38
18
3
1
61,75
~ 71
~ 38
5,5
-1
34
GDME 2011
poles
2+
A
type
GDME 2011
GDME 2013
operating voltage
AC 400 V, DC 250 V
AC 400 V, DC 250 V
description
cable socket with central
screw M3 x 40
cable socket with central
screw M3 x 40
cable socket with timer circuit
cable socket with central
screw M3 x 40
cable socket with central
screw M3 x 40
25
color
black
grey
black
grey
black
black
grey
black
grey
approvals
order no.
933 029-100
933 029-106
933 030-100
933 030-106
933 719-100
933 022-100
933 022-106
933 031-100
933 031-106
CK
CK
CK
CK
3+
A
GDME 2011 Timer AC 48 V, DC 24 V
GDME 3011
AC 400 V, DC 250 V
GDME 3013
AC 400 V, DC 250 V
Automation Technology
27
GDM Series
DIN 43650-A/ISO 4400

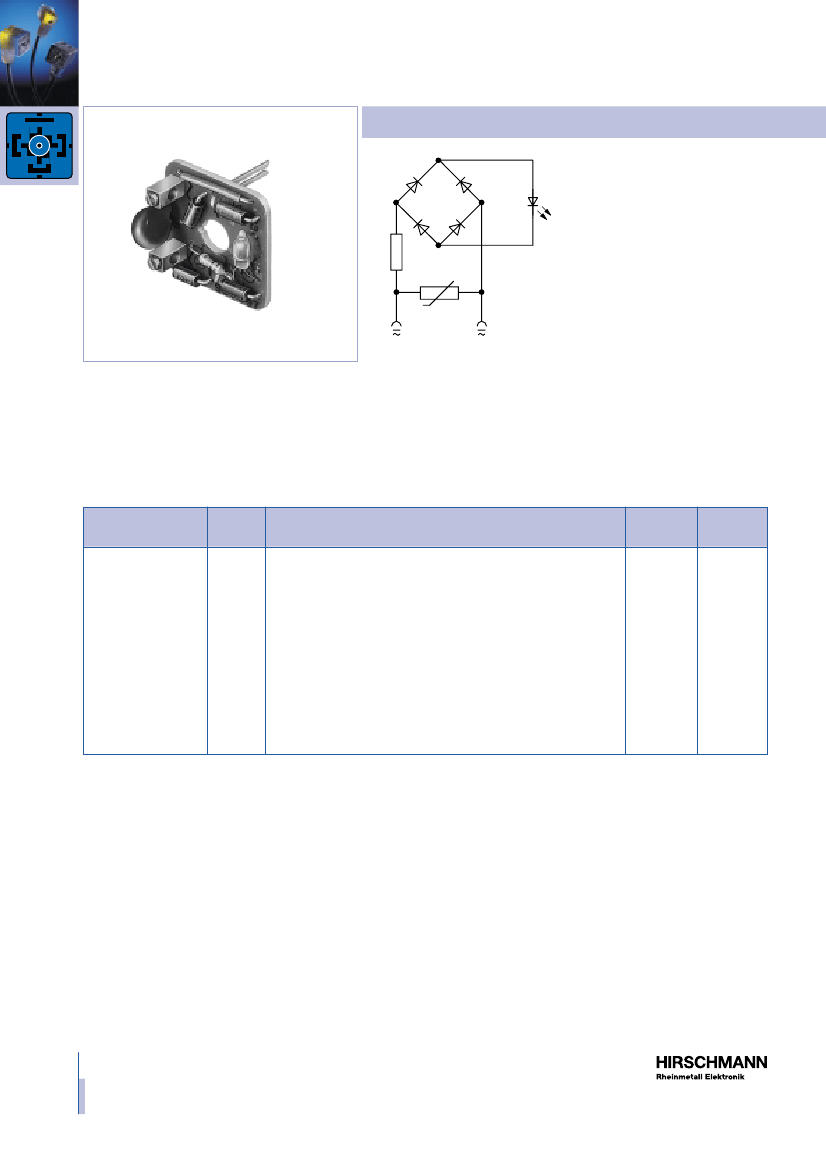

Electronic inserts for GDME
Product features
with electronic circuits such as
rectifiers, optical status displays,
protective elements etc. for
the conneciton of appliances
or elements which do not have
these function integrated
Further information
see technical data in the catalog
Rectangular connectors
for automation technique
DS 280 490-440.
yello
u
2
1
GDME–LED 24 GB YE
type
operating description
voltage
UC 24 V
DC 24 V
UV 24 V
UV 24 V
UV 24 V
UV 24 V
UC 48 V
UC 120 V
UC 120 V
UC 250 V
UC 250 V
UC 250 V
LED rectifier with protective circuit and function indicator
function indicator with protective circuit
function indicator with freewheeling diode
function indicator with freewheeling diode
function indicator with freewheeling diode
function indicator (2 LED’S)
function indicator with freewheeling diode and varistor
bridge-type rectifier with protective circuit and function indicator
function indicator
bridge-type rectifier with protective circuit and function indicator
bridge-type rectifier with protective circuit
function indicator
unequipped circuit board with 2 fork type springs and 2 clamping box
unequipped circuit board with 2 fork type springs and 2 flat head terminals
LED-color
order no.
GDME-LED 24 GB YE
GDME-LED 24 HH YE
GDME-LED 24 YE
GDME-LED 24
GDME-HDL 24 YE
GDME 2 LED 24
GDME-LED 48 YE RE
GDME-GB1 LG 120
GDME-LG 120
GDME-GB1 LG 230
GDME-GB1
GDME-LG 230
GDME-UV1
GDME-UV3 N
yellow
yellow
yellow
red
yellow
yellow/green
yellow
glow lamp
glow lamp
glow lamp
glow lamp
831 870-001
831 873-001
831 863-001
831 839-001
832 028-001
831 876-001
831 858-001
831 836-001
831 826-001
831 834-001
831 832-001
831 824-001
931 415-001
931 954-001
28
Automation Technology
DIN 43650-A/ISO 4400

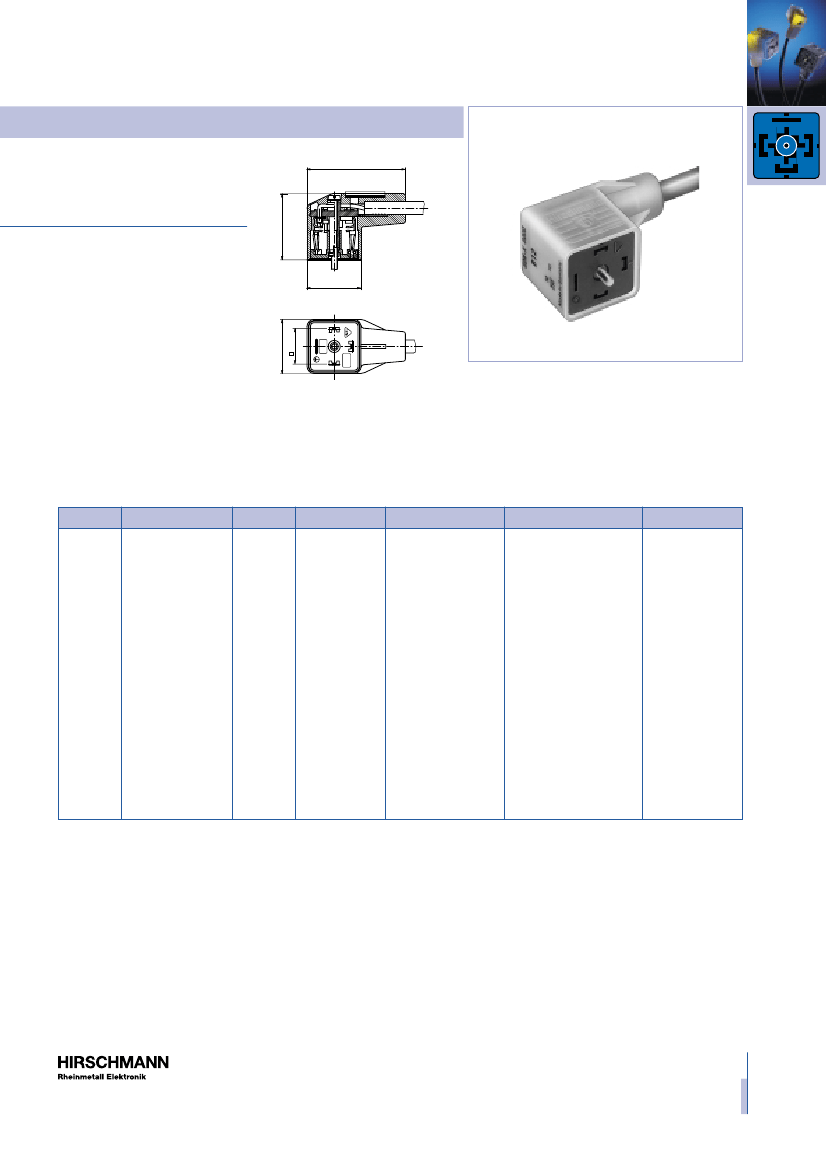

Molded cable socket
Product description
preassembled and molded-on
cable socket without integrated
electronic circuitry
Variations
• PVC grey (additional colors,
cable material, length…
on application)
• 0° and 180° cable outlet
• connected protective earth (PE)
allows 0° and 180° assembly
Further information
see technical data in the catalog
Rectangular connectors
for automation technique
DS 280 490-440.
For tailor-made systems,
see page 24
50
GDM Series
33,5
27,5
1
27,5
18,0
3
GDM-K 3000
2
poles
2+
A
type
GDM-K 2000
length
2m
5m
color
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
black
grey
operating voltage
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 250 V
UC 250 V
description
order no.
933 096-111
933 096-611
933 096-112
933 096-612
933 133-111
933 133-611
933 133-112
933 133-612
933 655-111
933 655-611
933 655-112
933 655-612
933 095-111
933 095-611
933 095-112
933 095-612
933 136-111
933 136-611
933 136-112
933 136-612
GDM-K 2000 Z
2m
5m
180 ° cable outlet
180 ° cable outlet
PE connected
PE connected
GDM-K 2000 PE 2
2m
5m
3+
A
GDM-K 3000
2m
5m
GDM-K 3000 Z
2m
5m
180° cable outlet
180° cable outlet
Automation Technology
29
京公网安备 11010802033920号
EEWORLD
