Connectors for mains connection
CA-series

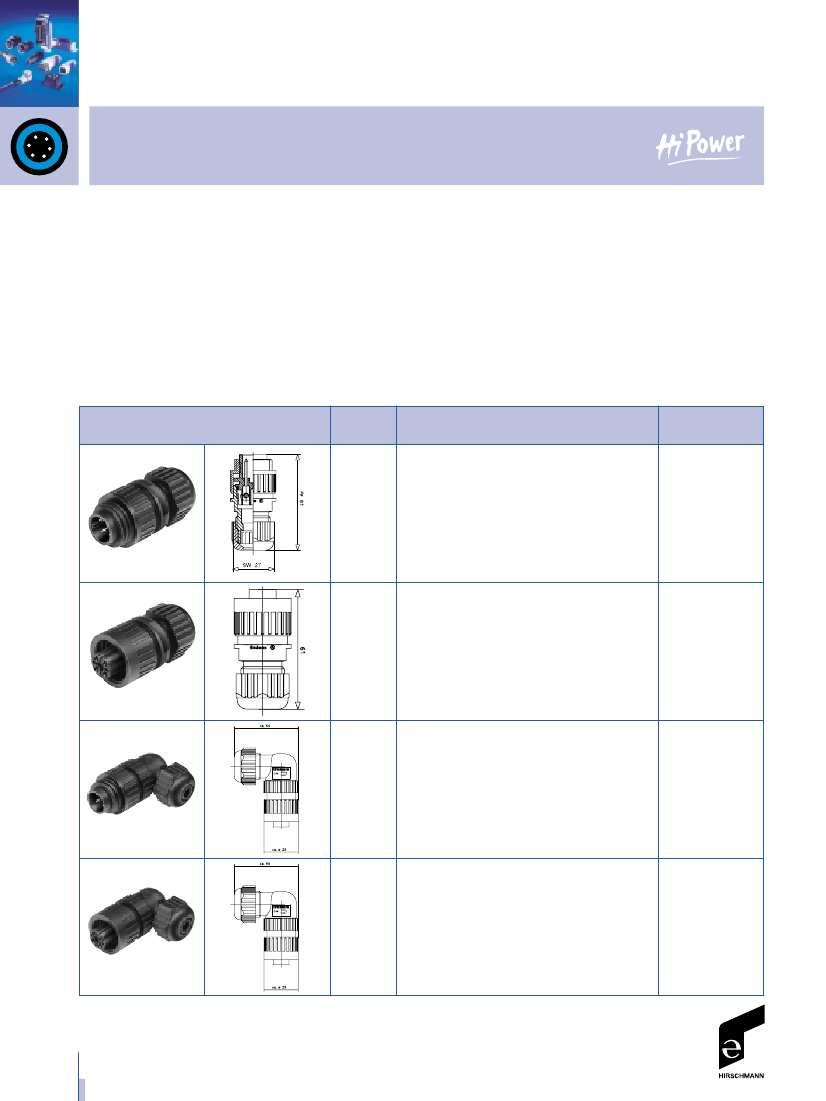

Product description
Robust, universal circular connector
for machinery engineering in general,
control engineering, electrical medical
equipment as well as for the chemi-
cal industry.
• International approvals for world-
wide use: VDE, UR, SEV, CSA
• Housings made of impact-resistant
plastic with screw locking system
for troublefree, permanent connec-
tions
• Easy handling for a quick assembly
with integrated strain relief
• Useful in industry due to protection
against dust and water
IEC 60947-5-2
Basic data
Operating voltage: 250 V AC / DC,
(400 V AC 3-pole)
Operating current: 10 A AC / DC
(at 20° C), 16 A AC 3-pole (at 20° C)
Protection class: IP 67
Pollution severity class: 3
Strain relief by means of cable:
6 mm-12 mm
Contact surface: Cu Zn
Type
Number
of poles
3 + PE
Description
Order no.

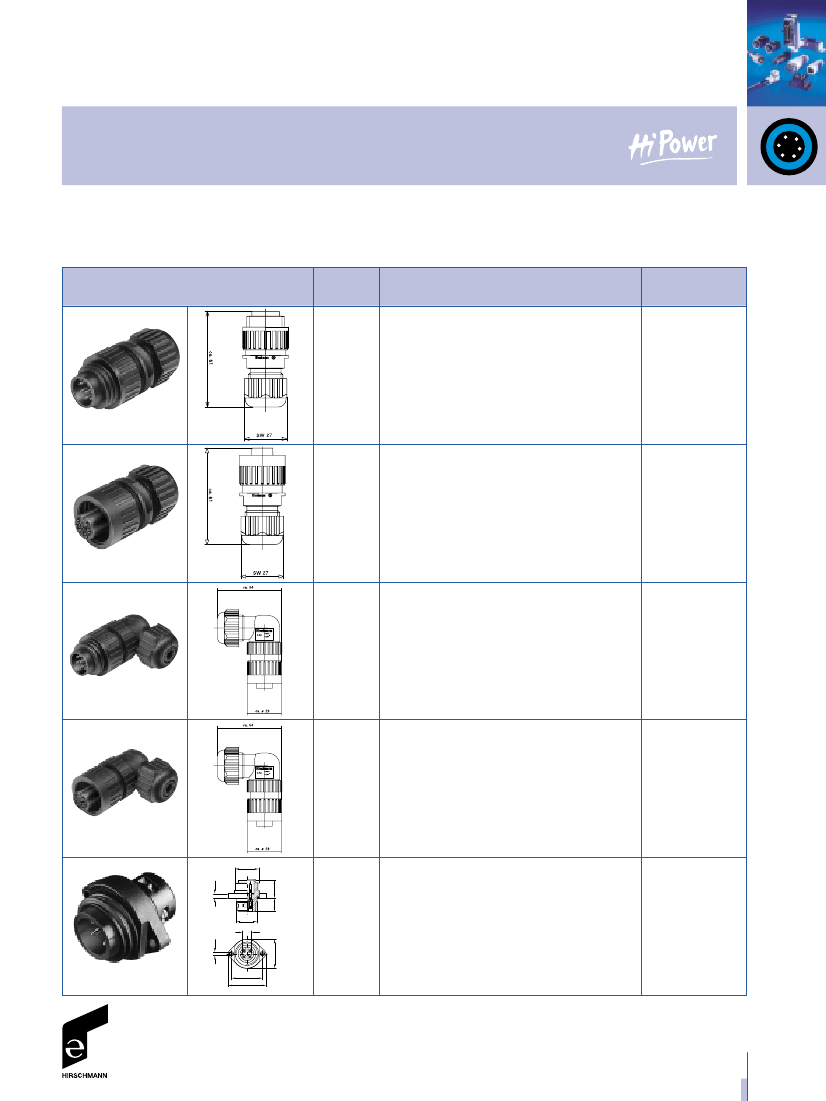

Cable connector
Type of connection: screw
Conductor cross-section: max. 1.5 mm
2
Operating voltage: 250 V DC / 400 V AC
934 124-100
CA 3 LS
3 + PE
Operating current: 10 A DC / 16 A AC
Cable socket
Type of connection: screw
Conductor cross-section: max. 1.5 mm
2
Operating voltage: 250 V DC / 400 V AC
934 125-100
CA 3 LD
3 + PE
Operating current: 10 A DC / 16 A AC
Cable connector
Type of connection: screw
Conductor cross-section: max. 1.5 mm
2
Operating voltage: 250 V DC / 400 V AC
934 128-100
CA 3 W LS
3 + PE
Operating current: 10 A DC / 16 A AC
Cable socket
Type of connection: screw
Conductor cross-section: max. 1.5 mm
2
Operating voltage: 250 V DC / 400 V AC
934 129-100
CA 3 W LD
Operating current: 10 A DC / 16 A AC
6
Industrial connectors
Connectors for mains connection
CA-series
Type
Number
of poles
6 + PE
Description
Order no.
Cable connector
Type of connection: solder
Conductor cross-section: max. 0.75 mm
2
Operating voltage: 250 V AC/DC
934 126-100
CA 6 LS
6 + PE
Operating current: 10 A AC/DC
Cable socket
Type of connection: solder
Conductor cross-section: max. 0.75 mm
2
Operating voltage: 250 V AC/DC
934 127-100
CA 6 LD
6 + PE
Operating current: 10 A AC/DC
Cable connector
Type of connection: solder
Conductor cross-section: max. 0.75 mm
2
Operating voltage: 250 V AC/DC
934 130-100
CA 6 W LS
6 + PE
Operating current: 10 A AC/DC
Cable socket
Type of connection: solder
Conductor cross-section: max. 0.75 mm
2
Operating voltage: 250 V AC/DC
934 131-100
CA 6 W LD
Rd 24 x
1
/
8
4,5
Operating current: 10 A AC/DC
3 + PE
18
ø 21,5
9
3,6
14

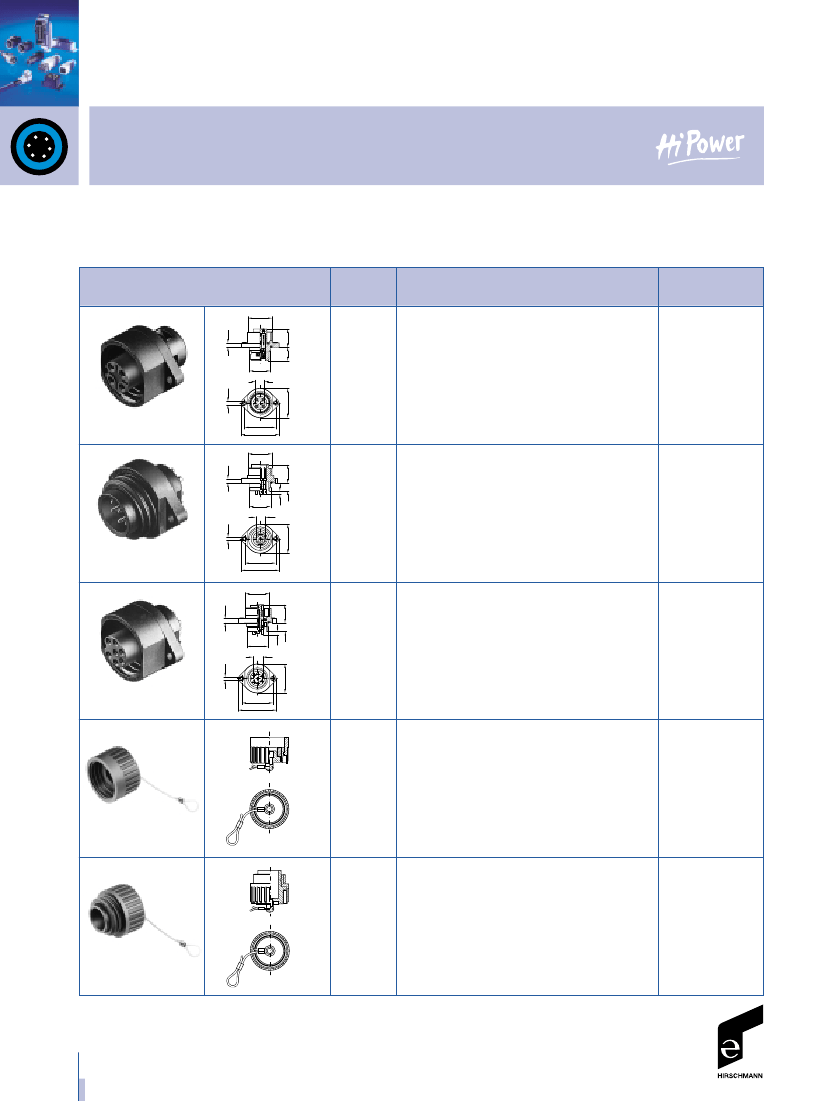

Panel-mounted connector
Type of connection: screw
Conductor cross-section: max. 1.5 mm
2
Operating voltage: 250 V DC / 400 V AC
Operating current: 10 A DC / 16 A AC
932 322-100
31
CA 3 GS
38
29
Industrial connectors
7
Connectors for mains connection
CA-series
IEC 60947-5-2
Type
Rd 24 x
1
/
8
Number
of poles
4,5
Description
Order no.
3 + PE
18,5
ø 21,5
9
13,5
Panel-mounted socket
Type of connection: screw
Conductor cross-section: max. 1.5 mm
2
Operating voltage: 250 V DC / 400 V AC
Operating current: 10 A DC / 16 A AC
932 321-100
3,6
31
CA 3 GD
4,5
38
Rd 24 x
1
/
8
29
6 + PE
18
ø 21,8
3,5
8,3
Panel-mounted connector
Type of connection: solder
Conductor cross-section: max. 0.75 mm
2
Operating voltage: 250 V AC/DC
Operating current: 10 A AC/DC
932 326-100
9,5
3,6
31
CA 6 GS
4,5
38
Rd 24 x
1
/
8
29
6 + PE
18,2
ø 21,8
3,5
8,8
Panel-mounted socket
Type of connection: solder
932 325-100
9,5
3,6
Conductor cross-section: max. 0.75 mm
2
Operating voltage: 250 V AC/DC
Operating current: 10 A AC/DC
–

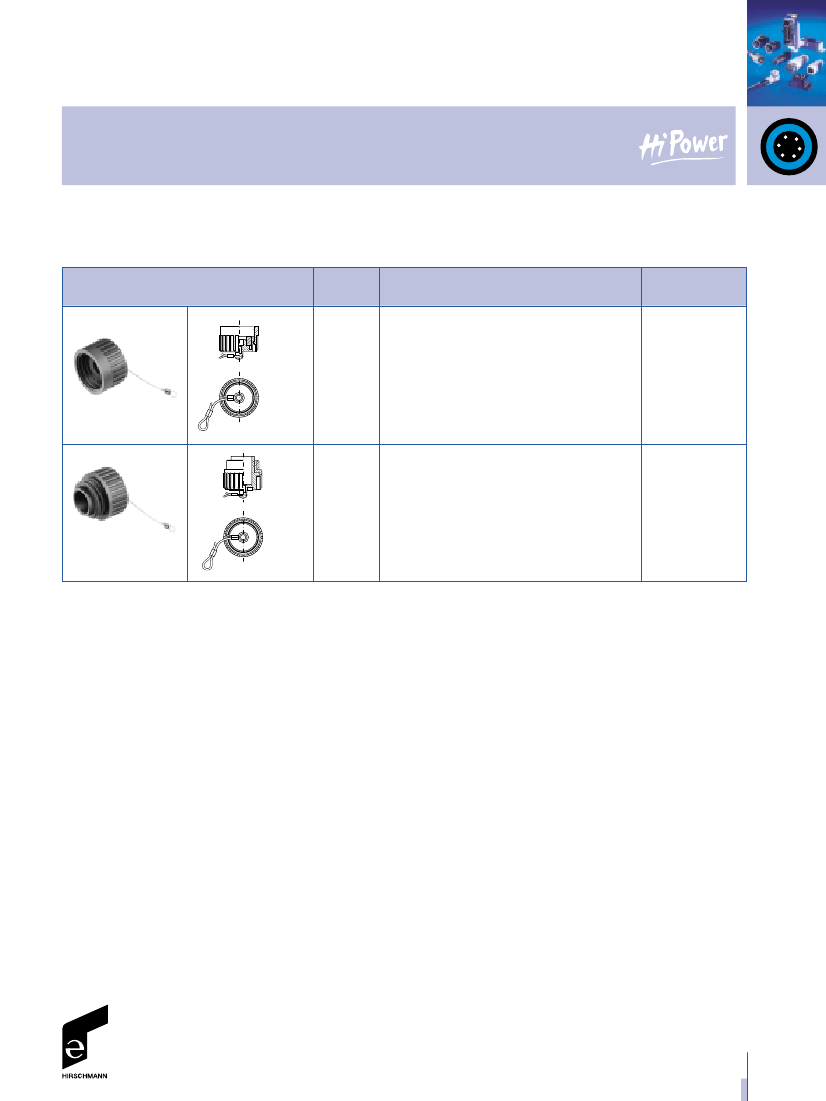

Protection cap for all cable connectors
with variable thread
831 530-400
29
31
CA 6 GD
38
CA 00 SD 1
–
Protection cap for all cable sockets
with variable thread
831 532-400
CA 00 SD 3
8
Industrial connectors
Connectors for mains connection
CA-series
Type
Number
of poles
–
Description
Order no.
Protection cap for all panel-mounted
connectors, with tight thread
831 529-100
CA 00 SD 2
–
Protection cap for all panel-mounted
sockets, with tight thread
831 531-100
CA 00 SD 4
Notes
Industrial connectors
9
