AB26T-FREQ-12.5-B-1 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> AB26T-FREQ-12.5-B-1

AB26T-FREQ-12.5-B-1: DescriptionParallel - Fundamental Quartz Crystal, 0.03MHz Min, 0.2MHz Max, ROHS COMPLIANT PACKAGE-2; CategoryPassive components Crystal/resonator; File Size594KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AB26T-FREQ-12.5-B-1 Overview

Parallel - Fundamental Quartz Crystal, 0.03MHz Min, 0.2MHz Max, ROHS COMPLIANT PACKAGE-2

AB26T-FREQ-12.5-B-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0069%
frequency tolerance	10 ppm
JESD-609 code	e3
load capacitance	12.5 pF
Manufacturer's serial number	AB26T
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	0.2 MHz
Minimum operating frequency	0.03 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	D2.1XH6.2 (mm)/D0.083XH0.244 (inch)
Series resistance	35000 Ω
surface mount	NO
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

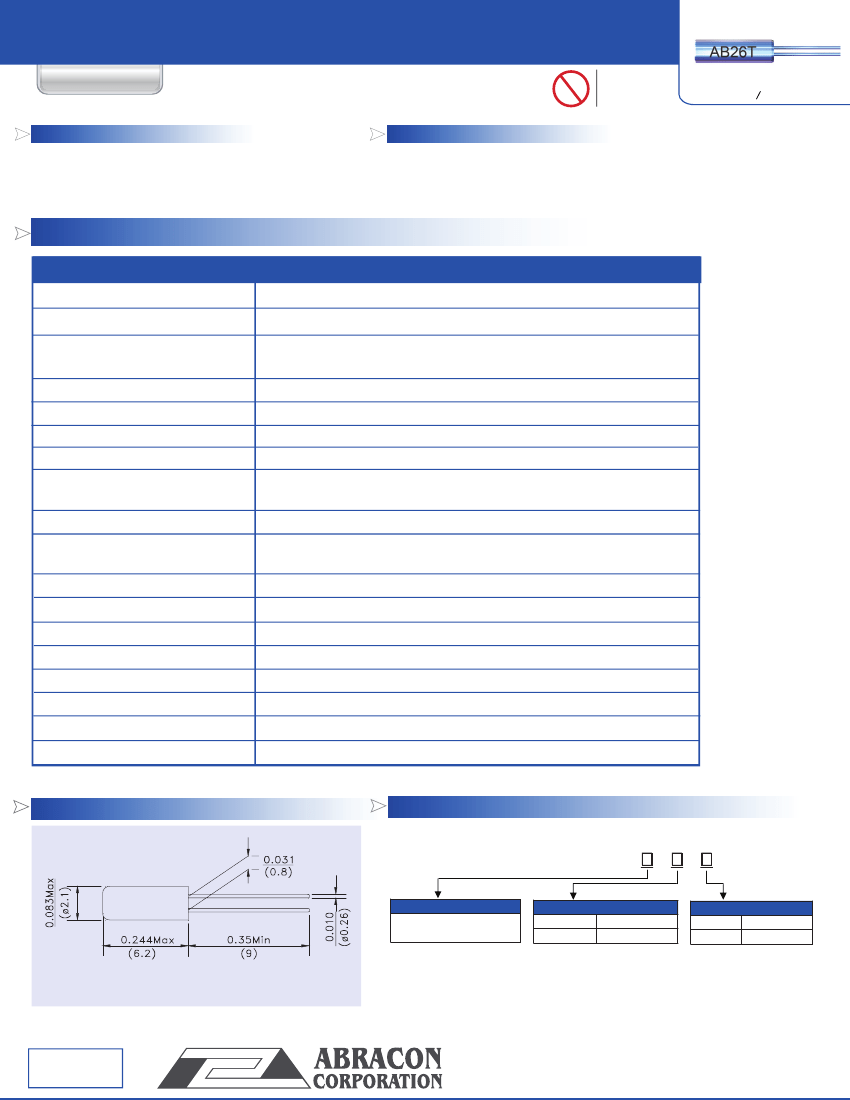

32.768kHz WATCH CRYSTAL, 6.2 x 02.1MM CYLINDER PACKAGE

AB26T

FEATURES:

• Watch frequency

• Frequency range from 30kHz to 200kHz

APPLICATIONS:

RoHS

Compliant

• Real time clock

• Measuring instruments

• Clock source for communication or A/V equipment

| | | | | | | | | | | | | | |

6.2 x 02.1 mm

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Standard frequency:

Additional frequencies

available*

Frequency range:

Operating temperature:

Storage temperature:

Turn-over temperature:

Frequency tolerance:

Temperature Coefficient:

Equivalent series resistance:

Shunt capacitance C0:

Load capacitance CL:

Motional capacitance C1:

Capacitance ratio:

Quality factor:

Drive level:

Aging @ 25° C first year:

Insulation resistance:

AB26T Series

32.768kHz

32.000kHz, 36.000kHz, 38.000kHz, 38.400kHz, 40.000kHz,

60.000kHz, 65.536kHz, 76.800kHz, 96.000kHz, 100.000kHz

* For additional frequencies

please contact Abracon.

30kHz to 200kHz

-10°C to + 60°C (see option)

-40°C to + 85°C

+25°C ± 5°C

± 20 ppm max. for 32.768kHz (see option)

± 30 ppm max. for 30kHz ~ 200kHz (not including 32.768kHz)

-0.034 ± 0.006 ppm/ T²

35 k

Ω

max. (32.768kHz)

35 k

Ω

~ 50 k

Ω

max. (30kHz ~ 200kHz)

0.8pF to 1.7pF typ.

12.5 pF typ. (see option)

1 ~ 4 fF typ.

425 ~ 800 typ.

70,000 typ. (32.768kHz)

1.0 µW max.

± 3 ppm max. (32.768kHz) and ± 5 ppm max. (others)

500 Mohms min. at 100Vdc ± 15V

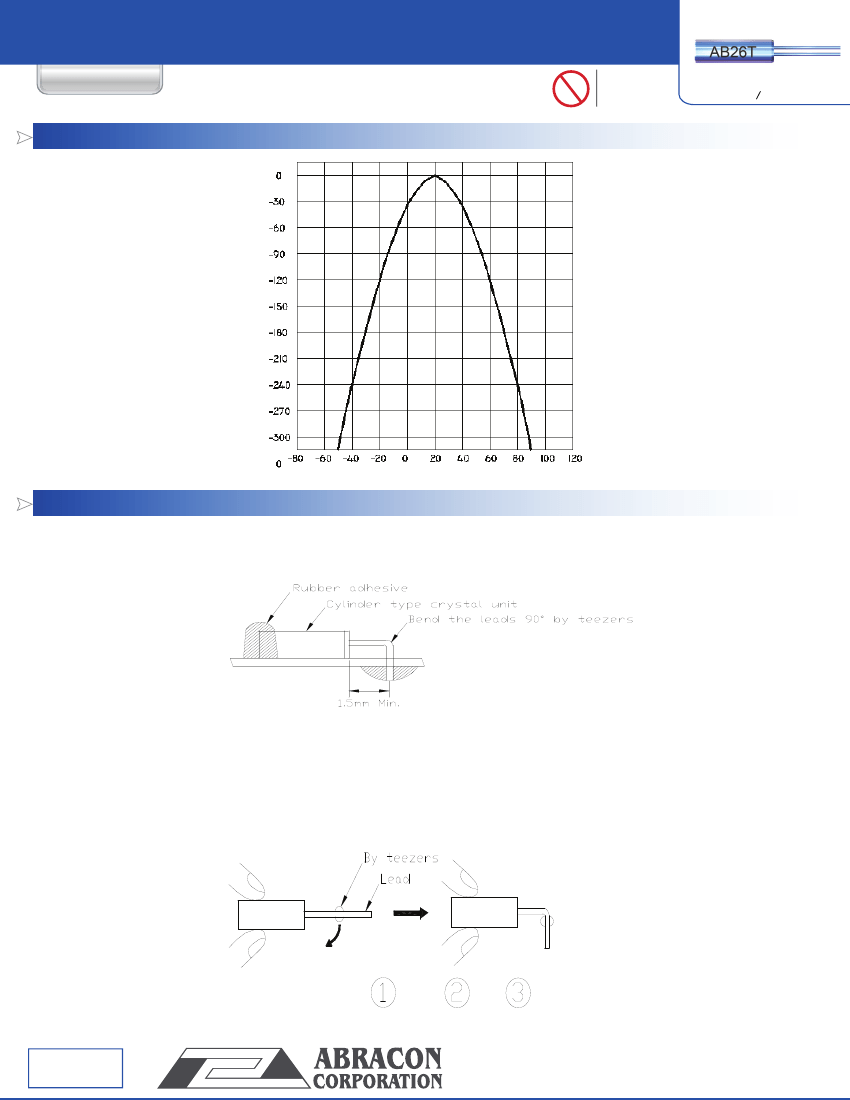

OUTLINE DRAWING:

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

AB26T- Frequency-

CL Option

Please specify load cap.

in pF (ex. 6pF)

Freq. Tol erance

± 10 ppm, max

± 15 ppm, max

* Please contact ABRACON

for availability

Temperature options

0°C to + 70°C

-20°C to + 70°C

Dimensions: Inch (mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 10.23.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
