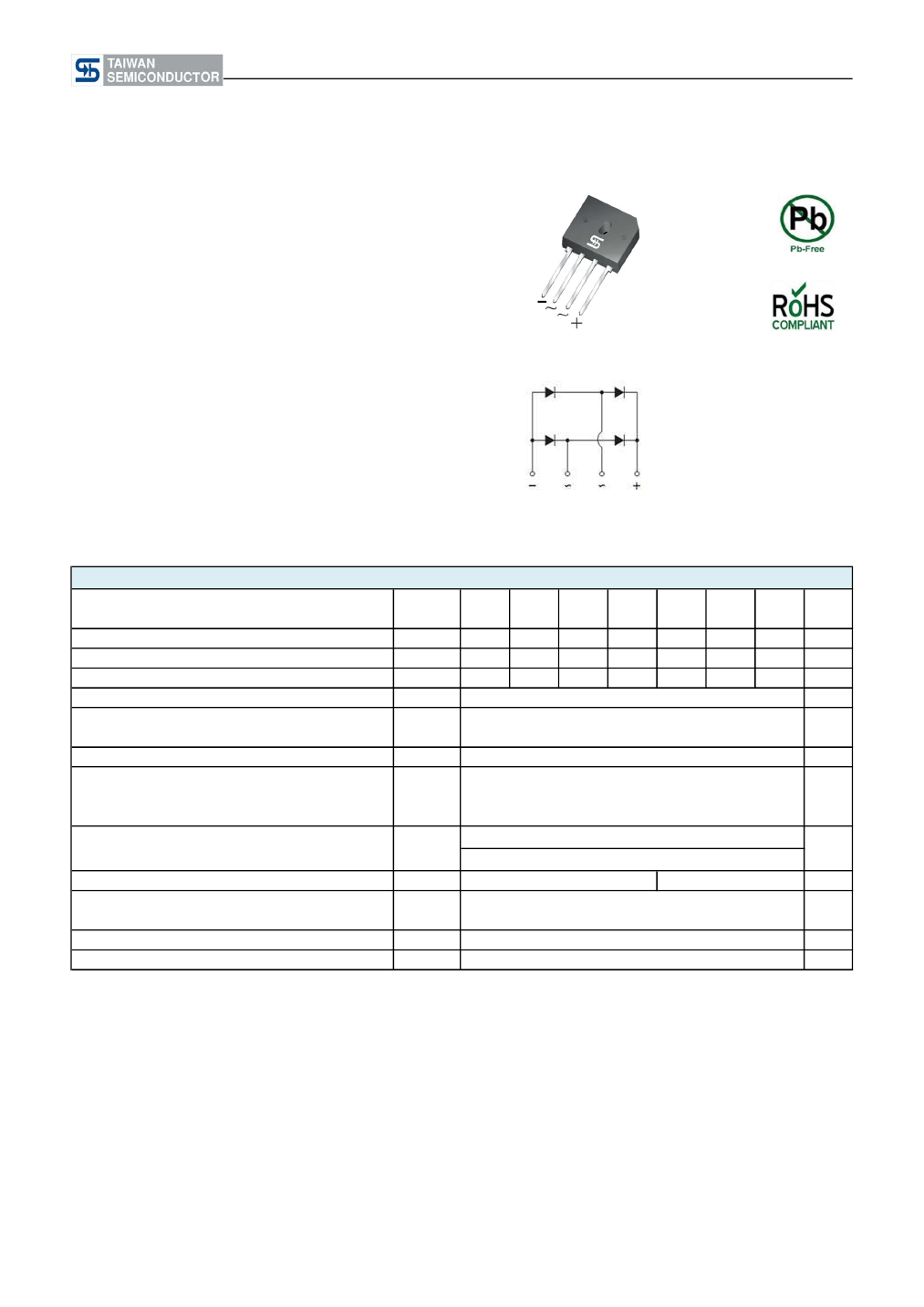

GBU1001 - GBU1007
Taiwan Semiconductor
CREAT BY ART
10A, 50V - 1000V Glass Passivated Single-Phase Bridge Rectifiers
FEATURES
- Ideal for printed circuit board
- High case dielectric strength of 1500 VRMS
- High surge current capability
- Typical I
R
less than 0.1μA
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
GBU
MECHANICAL DATA
Case:
GBU
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Polarity:
As marked
Weight:
4 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current,
8.3 ms single half sine-wave
Rating of fusing ( t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 5 A
I
F
= 10 A
Maximum reverse current @ rated V
R
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
GBU
1001
50
35
50
GBU
1002
100
70
100
GBU
1003
200
140
200
GBU
1004
400
280
400
10
220
200
1.0
1.1
5
500
211
2
21
- 55 to +150
- 55 to +150
94
GBU
1005
600
420
600
GBU
1006
800
560
800
GBU
1007
1000
700
1000
UNIT
V
V
V
A
A
A
2
s
V
I
R
C
J
R
θJC
R
θJA
T
J
T
STG
μA
pF
°C/W
°C
°C
Typical junction capacitance per leg (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1MHz and applied Reverse bias of 4.0V DC
Document Number: DS_D1409018
Version: J15
GBU1001 - GBU1007
Taiwan Semiconductor

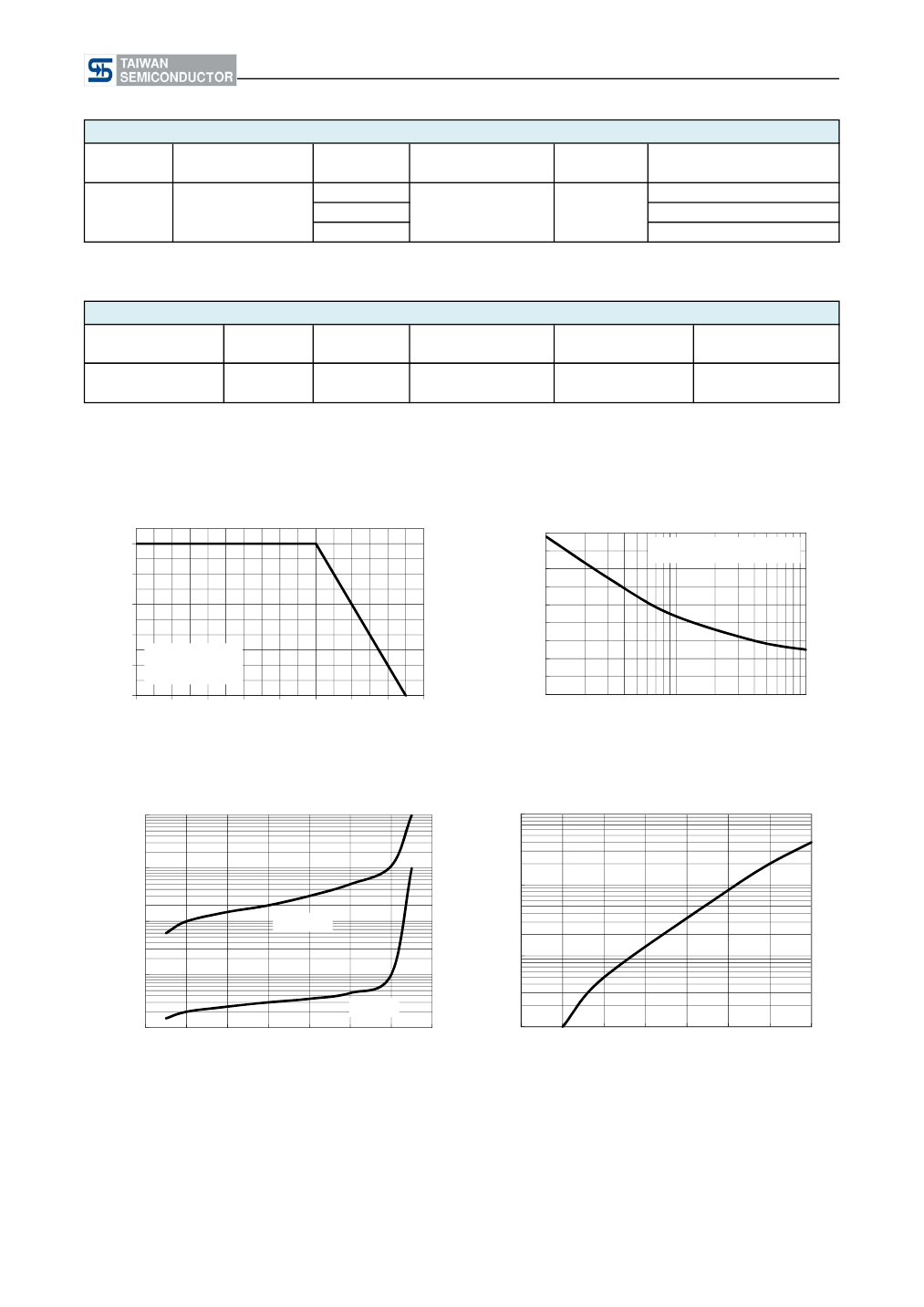

ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
GBU100x
(Note 1)
H
PACKING
CODE
C2
D2
X0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
PACKING
20 / Tube
GBU
20 / Tube
Forming
Note 1: "x" defines voltage from 50V (GBU1001) to 1000V (GBU1007)
*: Optional available
EXAMPLE
PREFERRED P/N
GBU1006HC2G
PART NO.
GBU1006
PART NO.
SUFFIX
H
PACKING CODE
C2
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM DERATING CURVE OUTPUT
CURRENT
PEAK FORWARD SURGE CURRENT (A)
10
AVERAGE FORWARD
A
CURRENT (A)
8
6
4
2
0
0
20
40
60
80
100
120
140
160
CASE TEMPERATURE (
°
C)
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
225
200
175
150
125
100
75
50
25
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
FIG. 2 MAXIMUM FORWARD SURGE CURRENT
PER LEG
INSTANTANEOUS REVERSE CURRENT (μA)
1000
FIG. 3 TYPICAL REVERSE CHARACTERISTICS
PER LEG
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
10
10
T
J
=125
°
C
1
1
T
J
=25
°
C
0.1
0
20
40
60
80
100
120
140
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
INSTANTANEOUS FORWARD VOLTAGE (V)
PERCENT OF RATED PEAK REVERSE VOLTAGE (V)
Document Number: DS_D1409018
Version: J15
GBU1001 - GBU1007
Taiwan Semiconductor

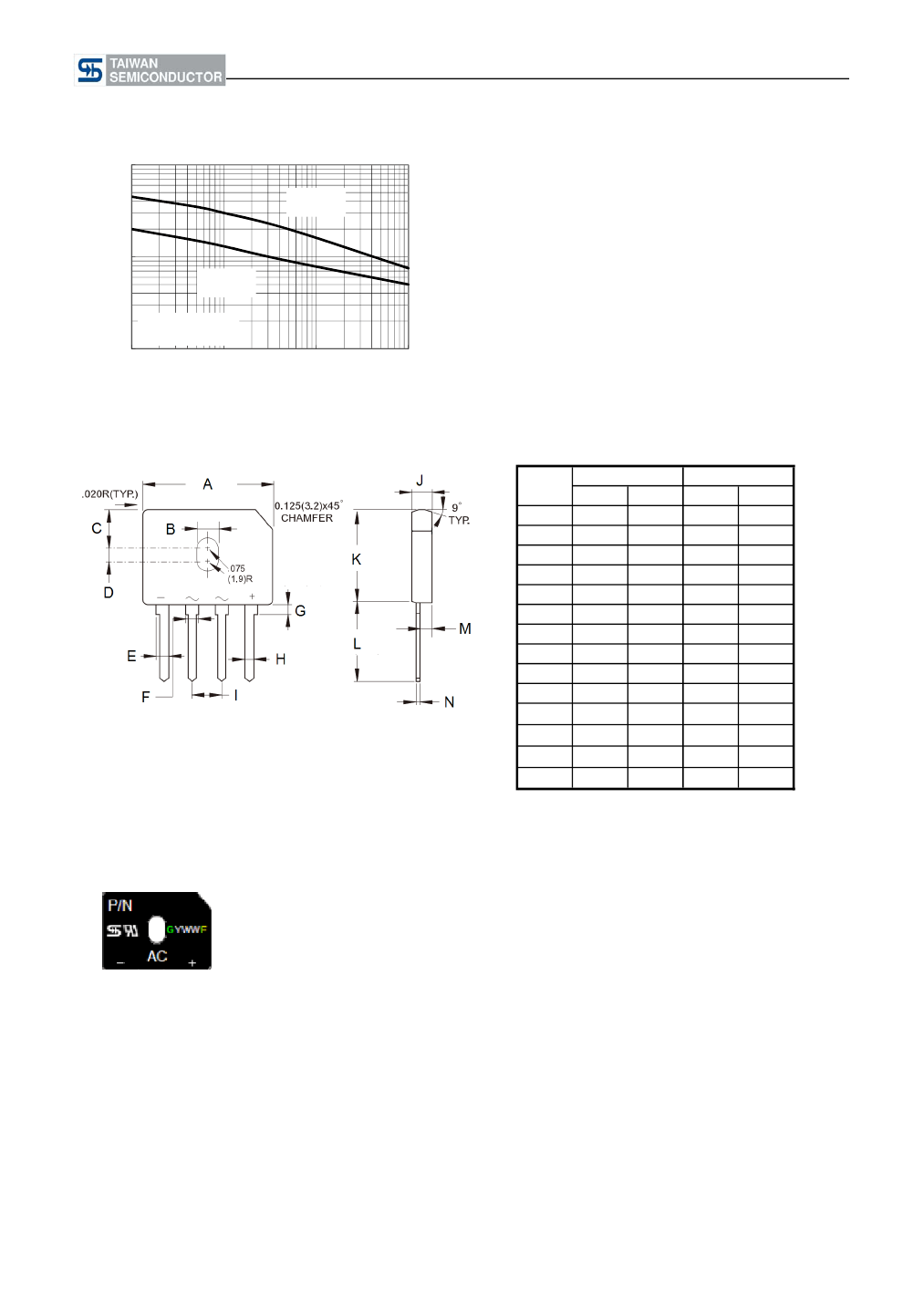

FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
1000
JUNCTION CAPACITANCE (pF)
A
GBU1001-
GBU1004
100
GBU1005-
GBU1007
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
GBU
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Unit (mm)
Min
21.80
3.50
7.40
1.65
2.16
1.65
1.52
1.02
4.83
3.30
18.30
17.50
1.90
0.46
Max
22.30
4.10
7.90
2.16
2.54
2.03
2.03
1.27
5.33
3.56
18.80
18.00
2.16
0.56
Unit (inch)
Min
0.858
0.138
0.291
0.065
0.085
0.065
0.060
0.040
0.190
0.130
0.720
0.689
0.075
0.018
Max
0.878
0.161
0.311
0.085
0.100
0.080
0.080
0.050
0.210
0.140
0.740
0.709
0.085
0.022
MARKING DIAGRAM
P/N
G
YW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1409018
Version: J15
GBU1001 - GBU1007
Taiwan Semiconductor
CREAT BY ART
Notice
