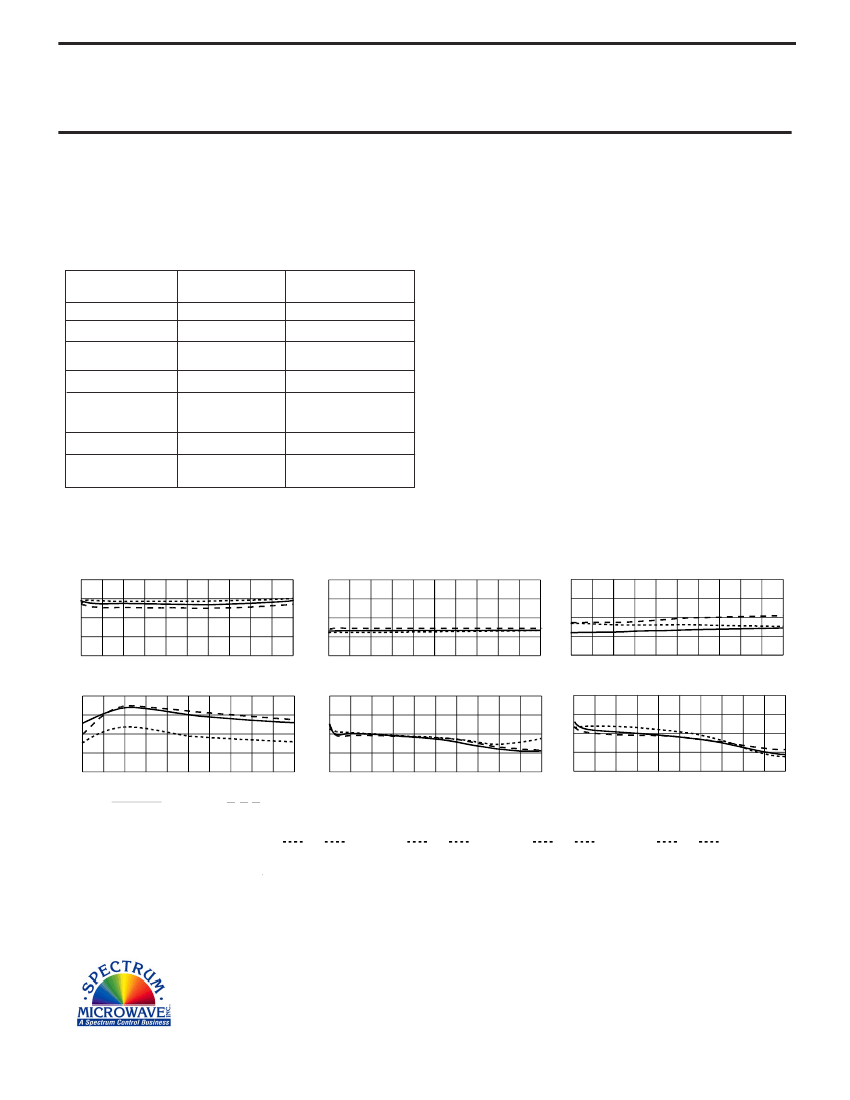

RF AMPLIFIER
MODEL
TM5137
Features
!
!
!
!
!
High Output Power: +22.5 dBm Typical
High Third Order Intercept: +39 dBm Typical
Operating Temp. - 55 ºC
to +85
ºC
Environmental Screening Available
Equivalent to QBH-137
Available as:
TM5137, 4 Pin TO-8 (T4)
TN5137, 4 Pin Surface Mount (SM3)
FP5137, 4 Pin Flatpack (FP4)
BX5137, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point........+58 dBm (Typ.)
Second Order Two Tone Intercept Point.........+53 dBm (Typ.)
Third Order Two Tone Intercept Point.............+39 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency (MHz)
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
10-200 MHz
12.7
+22.5
-18
<1.6:1
<1.75:1
<3.5
+15
75
MIN/MAX
Ta = -55 ºC to +85 ºC
10-200 MHz
12.2 Min.
+20.5 Min.
-17 Max.
2.0:1Max.
2.0:1 Max.
4.2 Max.
+15 Min.
80 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage .......................................................... + 18Volts
Continuous RF Input Power ................................. + 18 dBm
Short Term RF Input Power .... 100 Milliwatts (1 Minute Max.)
Maximum Peak Power.................... 0.2 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Gain (dB)
14
13
12
11
10
Reverse Isolation (dB)
0
- 10
- 20
- 30
- 40
6
5
4
3
Stop 200 MHz
Noise Figure (dB)
Start 10 MHz
Stop 200 MHz
Start 10 MHz
2
2.0
1.5
1.0
Start 10 MHz
Stop 200 MHz
1 dB Comp. (dBm)
+24
+23
+22
+21
+20
Start 10 MHz
Stop 200 MHz
Input VSWR
2.0
1.5
1.0
Start
Output VSWR
10 MHz
Stop 200 MHz
Start 10 MHz
Stop 200 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Linear S-Parameters
FREQ.
S11
S21
S12
S22
MHz
Mag.
Deg.
Mag.
Deg.
Mag.
Deg.
Mag.
Deg.
========================================================================================
10
40
50
100
150
200
.22
.19
.19
.17
.14
.14
-144
-167
-169
-169
-159
-127
4.38
4.33
4.33
4.32
4.37
4.43
-175
164
158
135
111
85
.12
.12
.12
.12
.12
.13
-179
162
157
133
110
86
.26
.23
.23
.21
.17
.12
- 12
- 31
- 38
- 68
- 89
- 85
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
6/17/04
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
