FP5155PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5155PM

FP5155PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5155PM Overview

RF AMPLIFIER MODEL

FP5155PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

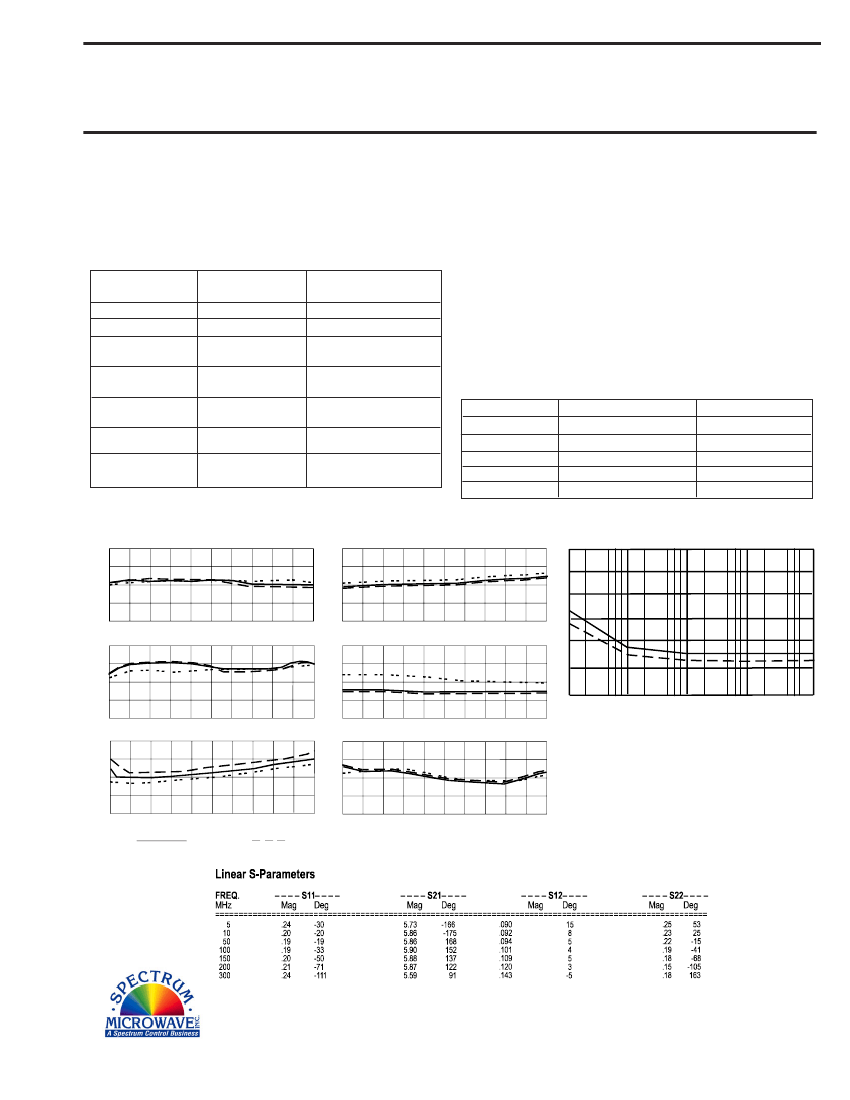

RF AMPLIFIER

MODEL

TM5155PM

Features

Superior Low Phase Noise Performance

High Output Power: +22 dBm Typical

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM5155PM, 4 Pin TO-8 (T4)

TN5155PM, 4 Pin Surface Mount (SM3)

FP5155PM, 4 Pin Flatpack (FP4)

BX5155PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +54 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +48 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +37 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +17 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power ............. 50 mW (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 300 MHz

15.0

>+22

-17

<1.75:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 300 MHz

15.0+/-1.0 Min.

+21 Min.

-16 Max.

2.0:1 Max.

6.0 Max.

+15

90 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

- 162

- 175

- 178

Guarantee (min.)

- 158

- 172

- 175

Note: Care should always be taken to effectively ground the case of each unit.

+24

+23

+22

+21

+20

Start

2.0

1.5

1.0

Start

5 MHz

Start 5 MHz

Gain (dB)

Typical Performance Data

-10

- 20

- 30

Stop 300 MHz

Reverse Isolation (dB)

-130

-140

-150

-160

Phase Noise (dBc/Hz)

- 40

Start 5 MHz

Stop 300 MHz

-170

-180

-190

1 dB Comp. (dBm)

Noise Figure (dB)

100

10k

100k

Input VSWR

Stop 300 MHz

2.0

1.5

Start 5 MHz

Output VSWR

Stop 300 MHz

_______Guarantee __ __ __ Typical

5 MHz

Stop 300 MHz

5 MHz

Stop 300 MHz

1.0

Start

Phase Noise Test Conditions:

Carrier Frequency: 160 MHz

Power Output: +22 dBm

Temperature: 25 ºC

Agilent ES5500 System

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

03/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
