RF AMPLIFIER
MODEL
TM5180
Features
!
!
!
!
Low Noise Figure: 3 dB Typical
High Gain: 29 dB Typical
Operating Temp. - 55 ºC to +85 ºC
Environmental Screening Available
Available as:
TM5180, 4 Pin TO-8 (T4)
TN5180, 4 Pin Surface Mount (SM3)
FP5180, 4 Pin Flatpack (FP4)
BX5180, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point.........+44 dBm (Typ)
Second Order Two Tone Intercept Point..........+42 dBm (Typ)
Third Order Two Tone Intercept Point..............+32 dBm (Typ)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise Figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25 ºC
5 - 150 MHz
29
+18.0
-35
1.6:1
1.6:1
3.0
+15
35
MIN/MAX
Ta = -55 ºC to +85 ºC
10 - 150 MHz
28
Min.
+17.0 Min.
-33 Max.
2.0:1 Max.
2.0:1 Max.
4.0 Max.
+15 Min.
40 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +125 ºC
Storage Temperature ................................. -62ºC to +150 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power.......50 Milliwatts (1 Minute Max.)
Maximum Peak Power.................. 0.5 Watts ( 3
µsecMax.)
Note: Care should always be taken to effectively ground the case of each unit.

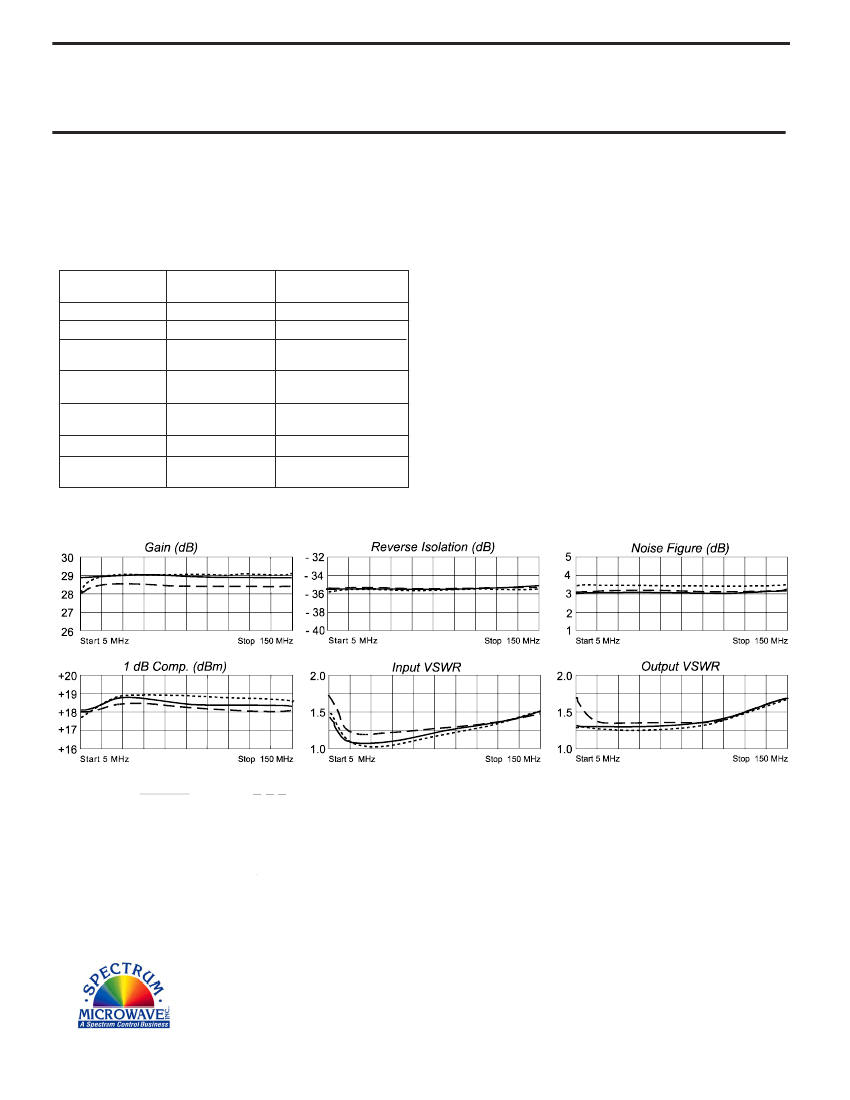

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
