FP5198 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5198

FP5198: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size33KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5198 Overview

RF AMPLIFIER MODEL

FP5198 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	27 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	450 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM5198

Features

Low Noise Figure: 3.0 dB Typical

Excellent Reverse Isolation

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5198, 4 Pin TO-8 (T4)

TN5198, 4 Pin Surface Mount (SM3)

FP5198, 4 Pin Flatpack (FP4)

BX5198, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +44 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +38 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +25 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 450 MHz

28.0

+13

-36

1.3:1

3.0

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 450 MHz

27 Min.

+12 Min.

-35 Max.

1.5:1 Max.

3.9 Max.

50 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 125 ºC

Storage Temperature ............................... -65ºC to + 150 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

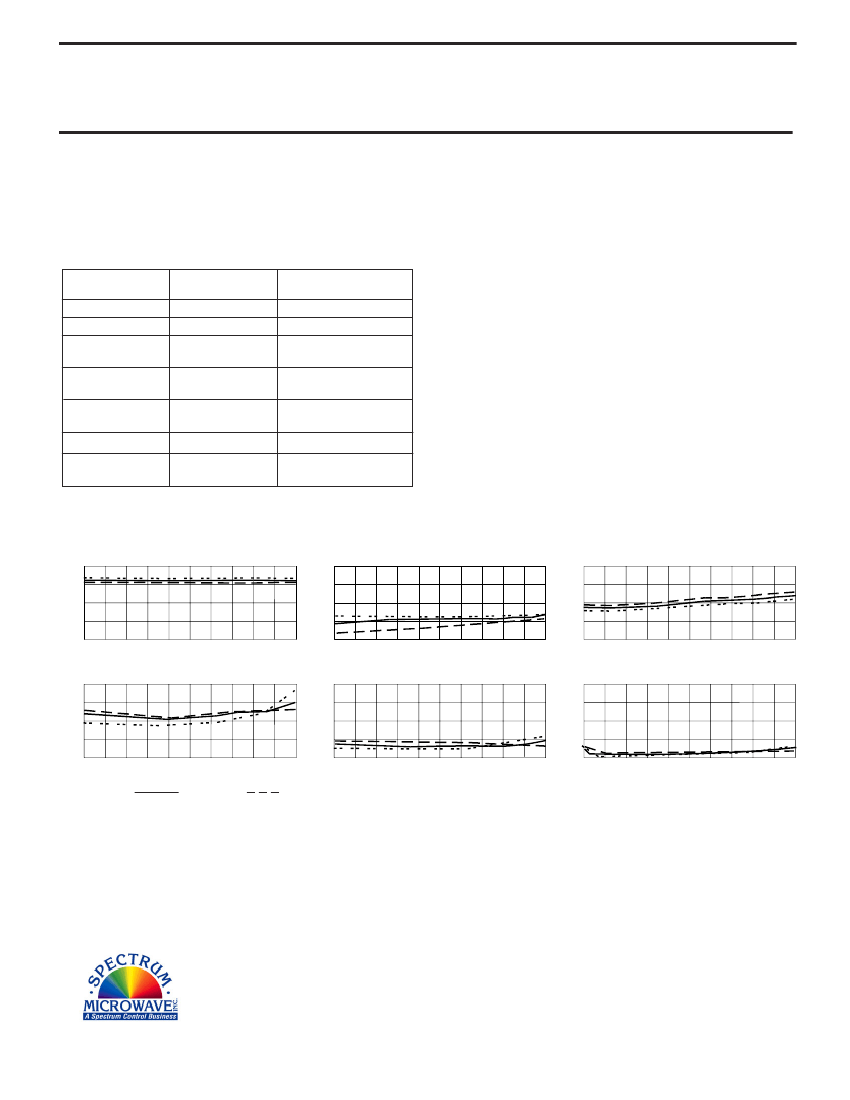

Typical Performance Data

Start 5 MHz

Stop 450 MHz

Gain (dB)

- 32

- 34

- 36

- 38

- 40

Reverse Isolation (dB)

4.0

3.5

3.0

2.5

2.0

Start 5 MHz

Stop 450 MHz

Start 10 MHz

Noise Figure (dB)

Stop 450 MHz

+15

+14

+13

+12

+11

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Stop 450 MHz

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 450 MHz

Start 5 MHz

Output VSWR

Stop 450 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/17/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5198 Related Products

	FP5198	BX5198	TM5198	TN5198
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	27 dB	27 dB	27 dB	27 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	450 MHz	450 MHz	450 MHz	450 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
Maker	API Technologies	API Technologies	API Technologies	-
