FP5352 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5352

FP5352: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5352 Overview

RF AMPLIFIER MODEL

FP5352 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	16 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

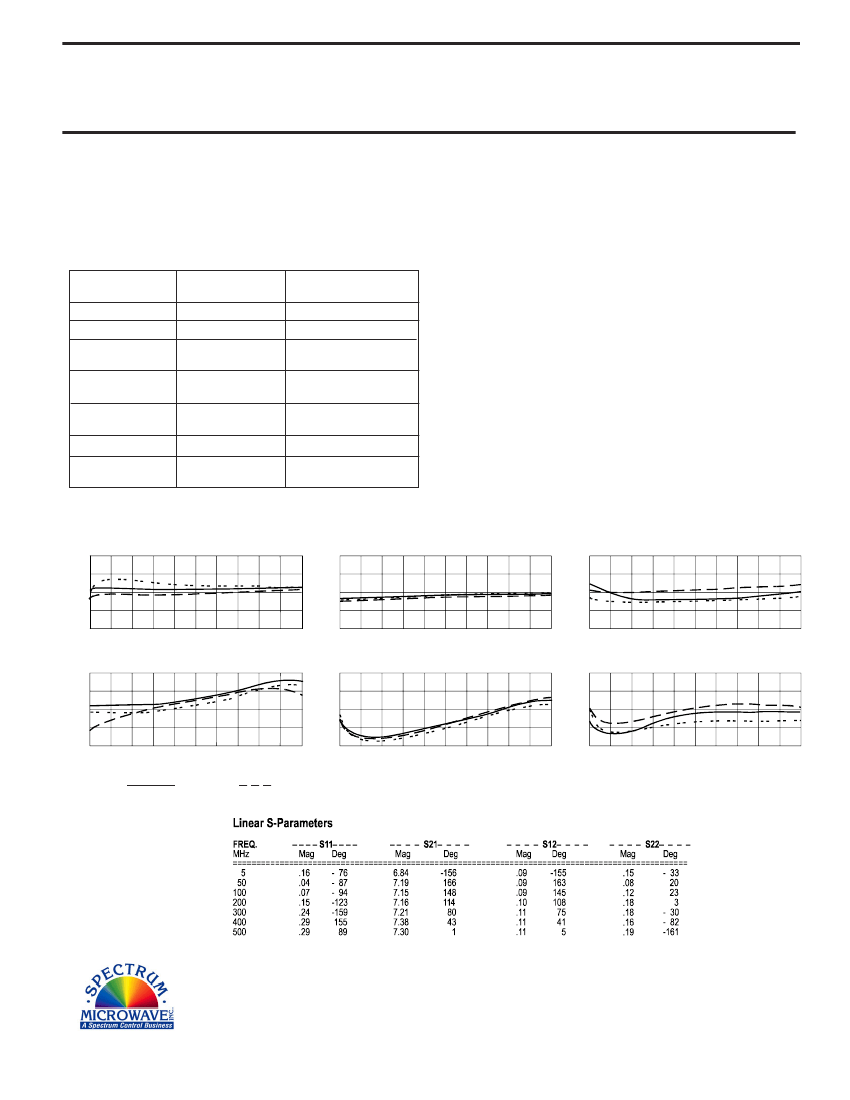

RF AMPLIFIER

MODEL

TM5352

Features

Gain: +17 dB Typical

Output Power: +18 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5352, 4 Pin TO-8 (T4)

TN5352, 4 Pin Surface Mount (SM3)

FP5352, 4 Pin Flatpack (FP4)

BX5352, Connectorized Housing (H1)

Typical Intermodulation Performance at 25

Second Order Harmonic Intercept Point ....... +53 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +47 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +33 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25

ºC

10 - 300 MHz

+18

-26

1.5:1

3.5

+12

MIN/MAX

Ta = -55

ºC

to +85

ºC

10 - 300 MHz

16 Min.

+17 Min.

-25 Max.

1.6:1 Max.

3.8 Max.

+12

75 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 15 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.2 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 300 MHz

Gain (dB)

- 15

- 20

- 25

- 30

- 35

Reverse Isolation (dB)

Noise Figure (dB)

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

+22

+21

+20

+19

+18

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

Start 10 MHz

Stop 300 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/05/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5352 Related Products

	FP5352	BX5352	TM5352	TN5352
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	-	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Gain	16 dB	16 dB	-	16 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm
Maximum operating frequency	300 MHz	300 MHz	-	300 MHz
Minimum operating frequency	10 MHz	10 MHz	-	10 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	-	2
