FP5441 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5441

FP5441: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5441 Overview

RF AMPLIFIER MODEL

FP5441 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	13 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

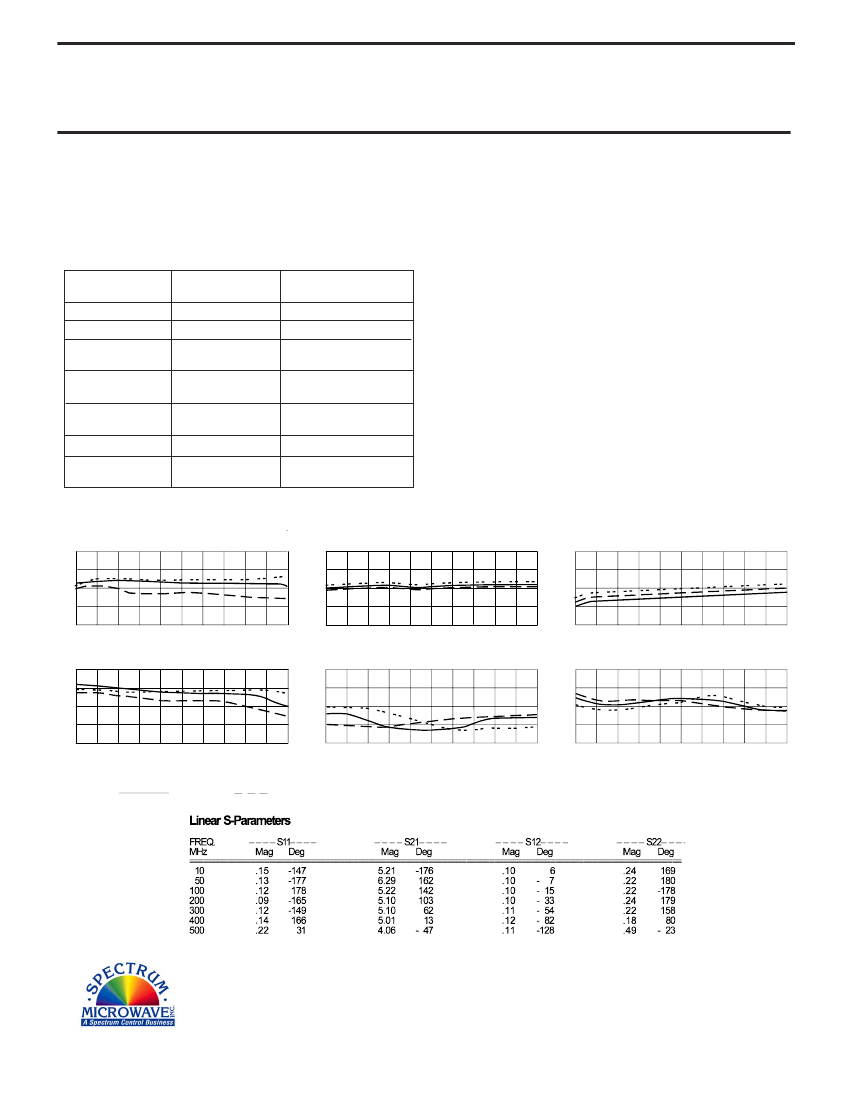

RF AMPLIFIER

MODEL

TM5441

Features

5 Volt Operation

Power Output: +15 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM5441, 4 Pin TO-8 (T4)

TN5441, 4 Pin Surface Mount (SM3)

FP5441, 4 Pin Flatpack (FP4)

BX5441, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +39 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +33 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +25 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10-400 MHz

14.5

+15

-20

1.25:1

1.6:1

3.8

MIN/MAX

Ta = -55 ºC to +85 ºC

10-400 MHz

13.0 Min.

+12.0 Min.

-17 Max.

2.0:1 Max.

4.5 Max.

+5 Min.

36 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ........................................................... + 8 Volts

Continuous RF Input Power ................................. + 18 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 400 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 400 MHz

Start 10 MHz

Noise Figure (dB)

Stop 400 MHz

+18

+16

+14

+12

+10

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 400 MHz

Start 10 MHz

Stop 400 MHz

Start 10 MHz

Stop 400 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/22/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5441 Related Products

	FP5441	BX5441	TM5441	TN5441
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	13 dB	13 dB	13 dB	13 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	1	1	1	1
