RF AMPLIFIER
MODEL
TM6012
Features
!
!
!
!
High Output Power: +23 dBm Typical
High IP3:+36 dBm Typical
Lower +12 Vdc Supply
Environmental Screening Available
Available as:
TM6012, 4 Pin TO-8 (T4)
TN6012, 4 Pin Surface Mount (SM3)
FP6012, 4 Pin Flatpack (FP4)
BX6012, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ...... +56 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +50 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
5 - 500 MHz
14.5
+23
-18
<1.4:1
<1.2:1
4.6
+12
88
MIN/MAX
Ta = -55 ºC to +85 ºC
5 - 500 MHz
13.0 Min.
+20 Min.
-15 Max.
2.0:1 Max.
2.0:1 Max.
6.0 Max.
+12
95 Max.
Maximum Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +15 Volts
Continuous RF Input Power .................................. +13 dBm
Short Term RF Input Power ............. 50 mW (1 Minute Max.)
Maximum Peak Power .................... 0.5 Watt (3
µsec
Max.)
MTBF Calculation for Ground Benign Environment
@
25 ºC
.................................................3,721,883.58 hrs
Note: Care should always be taken to effectively ground the case of each unit.

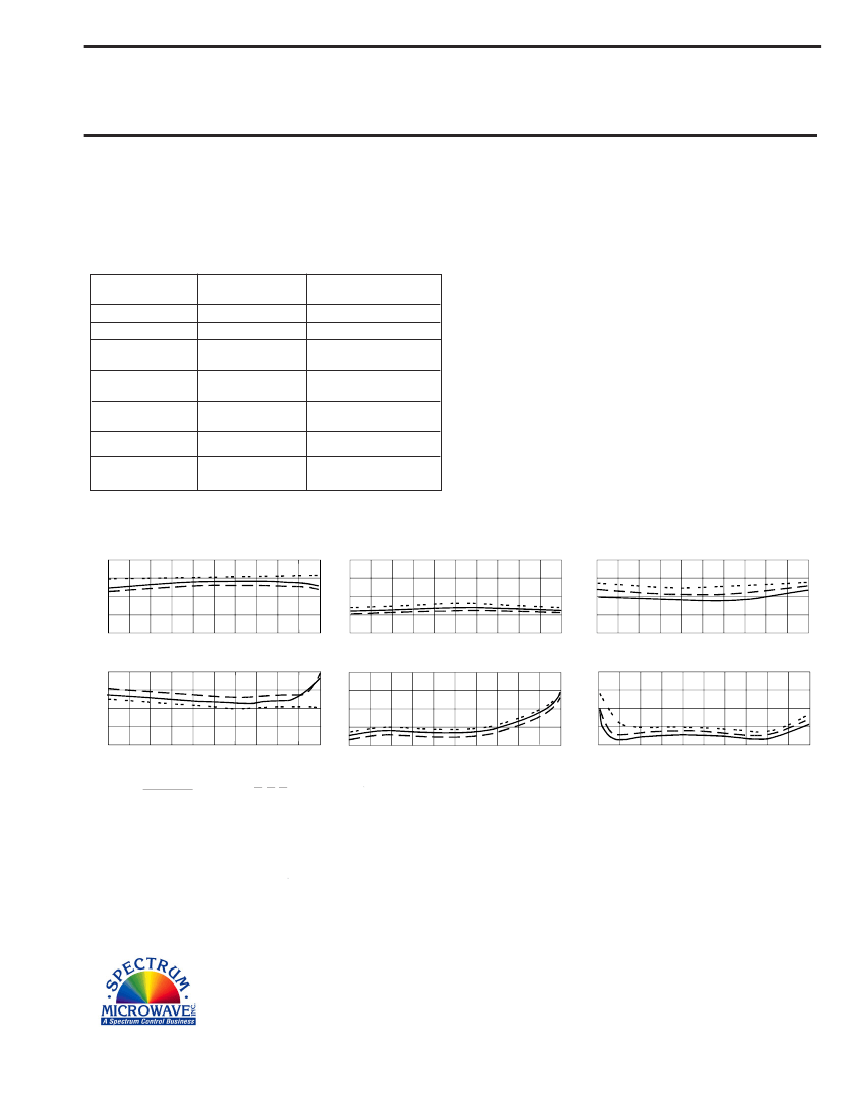

Typical Performance Data
16
15
14
13
12
Start 5 MHz
Stop 500 MHz
Gain (dB)
+ 10
0
- 10
- 20
- 30
Reverse Isolation (dB)
7
6
5
4
3
Noise Figure (dB)
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
+24
+23
+22
+21
+20
Start 5 MHz
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Legend
+25 ºC
+85 ºC - - - - - - -55 ºC
Linear S-Parameters
– – – – S12– – – –
FREQ.
– – – – S11– – – –
– – – – S21– – – –
– – – – S22– – –
Mag
MHz
Deg
Mag
Deg
Mag
Deg
Mag
Deg
======================================================================================
.23
-41
5.86
-163
.08
19
86
5
.27
.13
80
5.46
159
.11
3
23
100
.05
200
.40
24
5.51
137
.12
3
23
.04
.58
-31
5.50
114
.14
2
45
300
.04
400
.10
-91
5.53
90
.15
-1
71
.08
500
.20
-137
5.45
64
.17
-9
66
.17
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
3/12/09
www.SpectrumMicrowave.com
