FP6149: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size57KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6149 Overview

RF AMPLIFIER MODEL

FP6149 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, 4 PIN
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	14.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6149

Features

!

Medium Gain: 15.3 dB Typical

Medium Output Power: +16 dBm Typical

Operating Temp. - 55 ºC to + 85 ºC

Environmental Screening Available

Available as:

TM6149, 4 Pin TO-8B (T4)

TN6149, 4 Pin Surface Mount (SM3)

FP6149, 4 Pin Flatpack (FP4)

BX6149, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +47 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +41 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +30 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency (MHz)

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

5 - 500 MHz

15.3

+16

-19

<1.25:1

<5.0

+15

45

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

14.5 Min.

+14.5 Min.

-18 Max.

2:0:1 Max.

6.0 Max.

+15

48 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

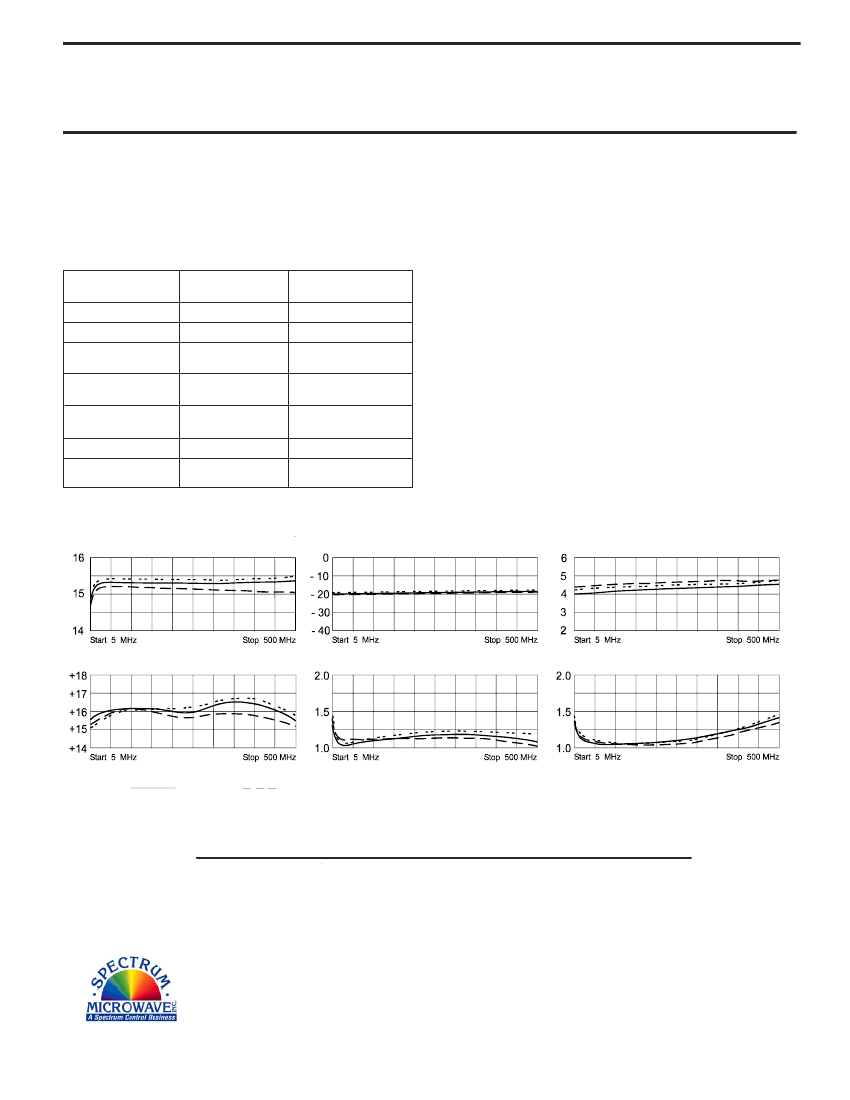

Typical Performance Data

Gain (dB)

Reverse Isolation (dB)

Noise Figure

1 dB Comp. (dBm)

Input VSWR

Output VSWR

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

MHZ

5

50

100

200

300

400

500

600

–––––S11–––––

Mag

Deg

.14

.02

.03

.07

.08

.05

.06

- 66

22

49

52

44

41

50

136

–––––S21–––––

Mag

Deg

5.58

5.85

5.81

5.78

5.75

5.71

5.67

-167

172

161

141

121

101

79

56

–––––S12–––––

Mag

Deg

.09

.10

.11

.12

.13

13

1

-2

-7

-12

-17

-25

-34

–––––S22–––––

Mag

Deg

.14

.01

.03

.05

.09

.14

.22

119

93

-171

-160

169

140

110

77

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

06/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6149 Related Products

	FP6149	BX6149	TM6149	TN6149
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	14.5 dB	14.5 dB	14.5 dB	14.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	-	API Technologies
package instruction	FP4, 4 PIN	H1	-	SM3, 4 PIN

Recommended Resources

Amplifier circuit diagram

Pulse monitoring signal generation circuit composed of monostable trigger

Rectifier circuit diagram for outputting two voltages Part 2

RS422 interface circuit

DT840D/CM3900A type 3 1/2 digital multimeter circuit
