FP6162 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6162

FP6162: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6162 Overview

RF AMPLIFIER MODEL

FP6162 Parametric

Parameter Name	Attribute value
package instruction	MODULE,4LEAD(UNSPEC)
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	11.5 dB
Maximum input power (CW)	10 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	100 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)
power supply	15 V
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum slew rate	16 mA
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

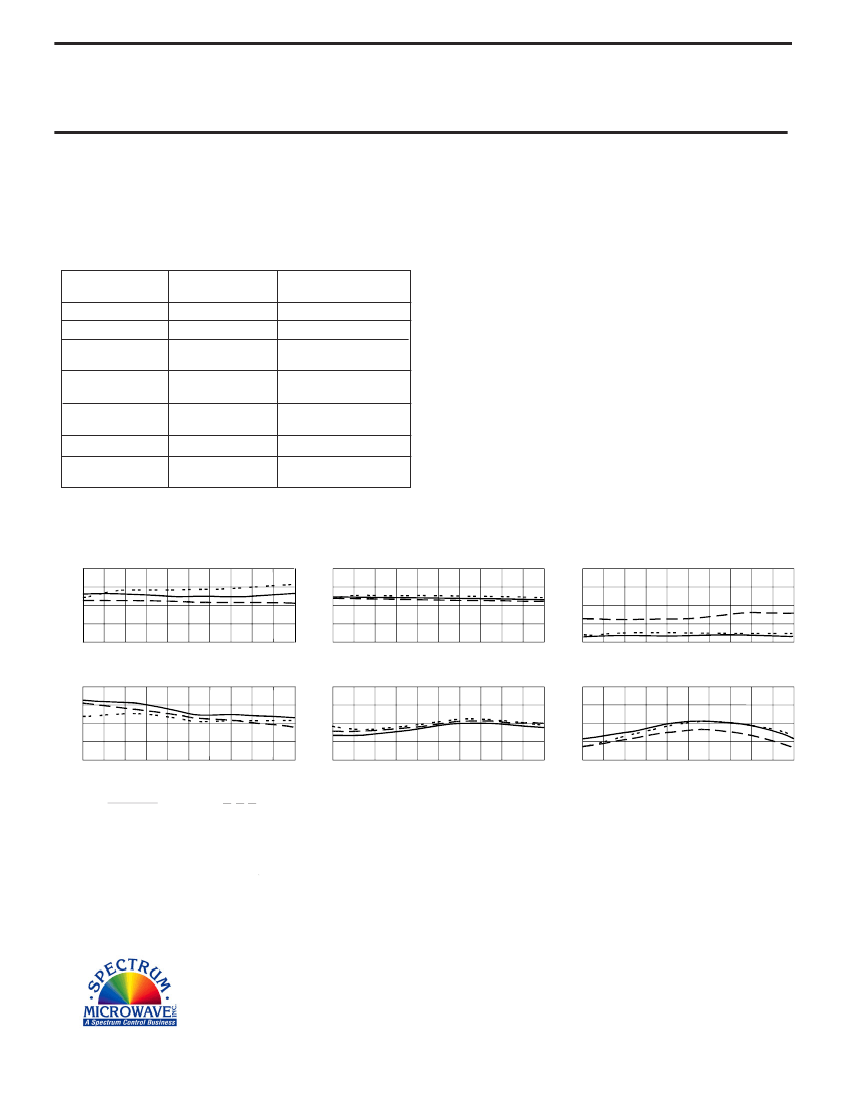

RF AMPLIFIER

MODEL

TM6162

Features

Low Noise Figure: <1.4 dB Typical

Medium Output Power: +16 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6162, 4 Pin TO-8 (T4)

TN6162, 4 Pin Surface Mount (SM3)

FP6162, 4 Pin Flatpack (FP4)

BX6162, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point .......+52 dBm (Typ.)

Second Order Two Tone Intercept Point ........+46 dBm (Typ.)

Third Order Two Tone Intercept Point ............+32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5 - 125 MHz

12.5

+16

-15.5

<1.5:1

<1.4

+15

13.5

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 100 MHz

11.5 Min.

+14 Min.

-15 Max.

2.0:1 Max.

2.0 Max.

+15

16 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 10 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ....................0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 5 MHz

Stop 125 MHz

Reverse Isolation (dB)

- 10

- 20

- 30

- 40

Start 5 MHz

Stop 125 MHz

Noise Figure (dB)

Start 5 MHz

Stop 125 MHz

1 dB Comp. (dBm)

+18

+17

+16

+15

+14

Start 5 MHz

Stop 125 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 125 MHz

2.0

1.5

1.0

Start 5 MHz

Output VSWR

Stop 125 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag Deg

Mag

Deg

Mag

Deg

Mag

Deg

======================================================================================

.15

-179

4.27

.17

.10

- 12

.15

-180

4.32

- 4

.17

- 4

.12

- 96

.19

179

4.29

- 43

.16

- 41

.20

-167

100

.19

162

4.31

- 92

.14

- 87

.12

- 29

150

.40

-175

3.46

-161

.08

-153

.47

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

11/16/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6162 Related Products

	FP6162	BX6162	TM6162	TN6162
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	11.5 dB	11.5 dB	11.5 dB	11.5 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
package instruction	MODULE,4LEAD(UNSPEC)	-	CAN4,.3	MODULE,4LEAD,.45SQ
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)	-	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	15 V	-	15 V	15 V
Maximum slew rate	16 mA	-	16 mA	16 mA
Maker	-	API Technologies	API Technologies	API Technologies
