LCCE-045X132 Overview

AC Input 90~305Vac SCP / OTP / OVP

Preview

Download Datasheet

View All

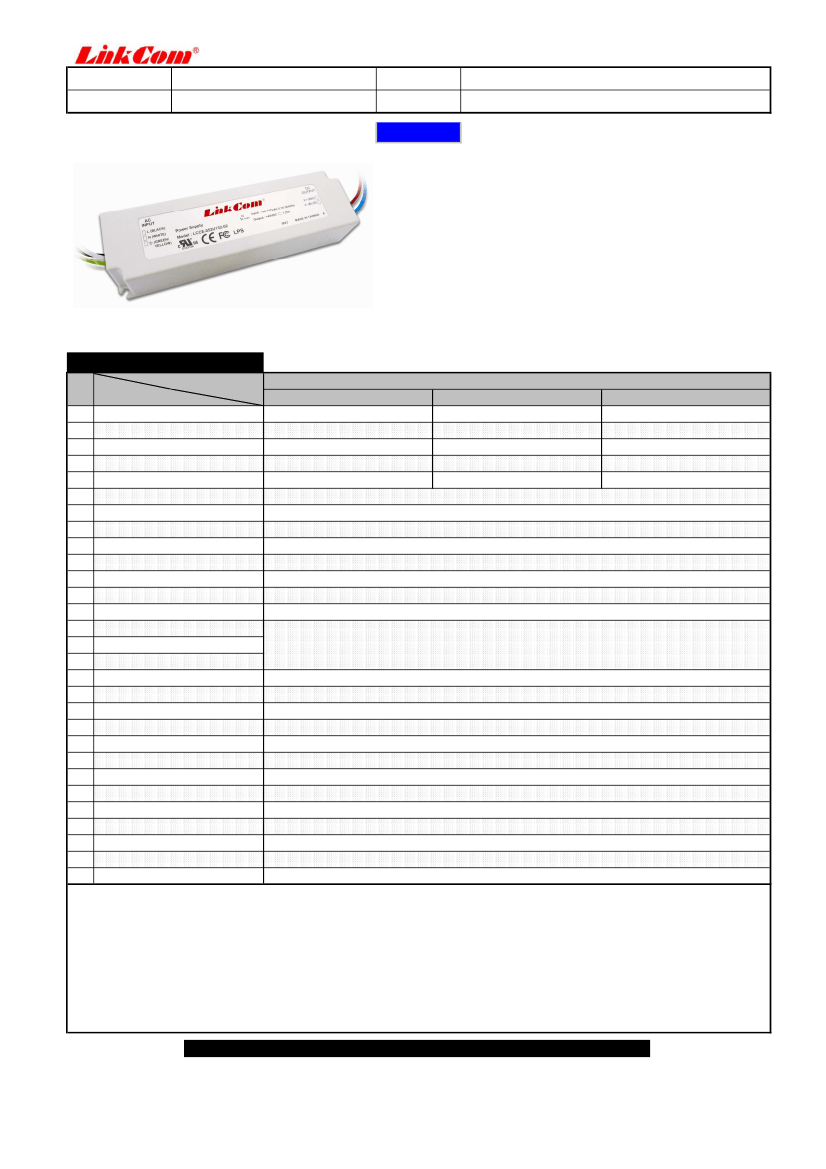

LinkCom Manufacturing Co., Ltd

Model NO.

Part NO.

LCCE-045 132

PLCCE0045 132

Model Name

SIZE

Constant Current Power Supply

163 * 47 * 31.6 mm

【6.42

* 1.85 * 1.24 inch】

FEATURES

◆

AC Input 90~305Vac

◆

Protection: SCP / OTP / OVP

◆

High Operating ambient Temp: -20℃ ~ +60℃

◆

Power Factor: >0.95@115VAC >0.9@230VAC

◆

Safety: UL

◆

EMC: CE / FCC

◆

Comply with Indoor/Outdoor Waterproof (IP 67)

◆

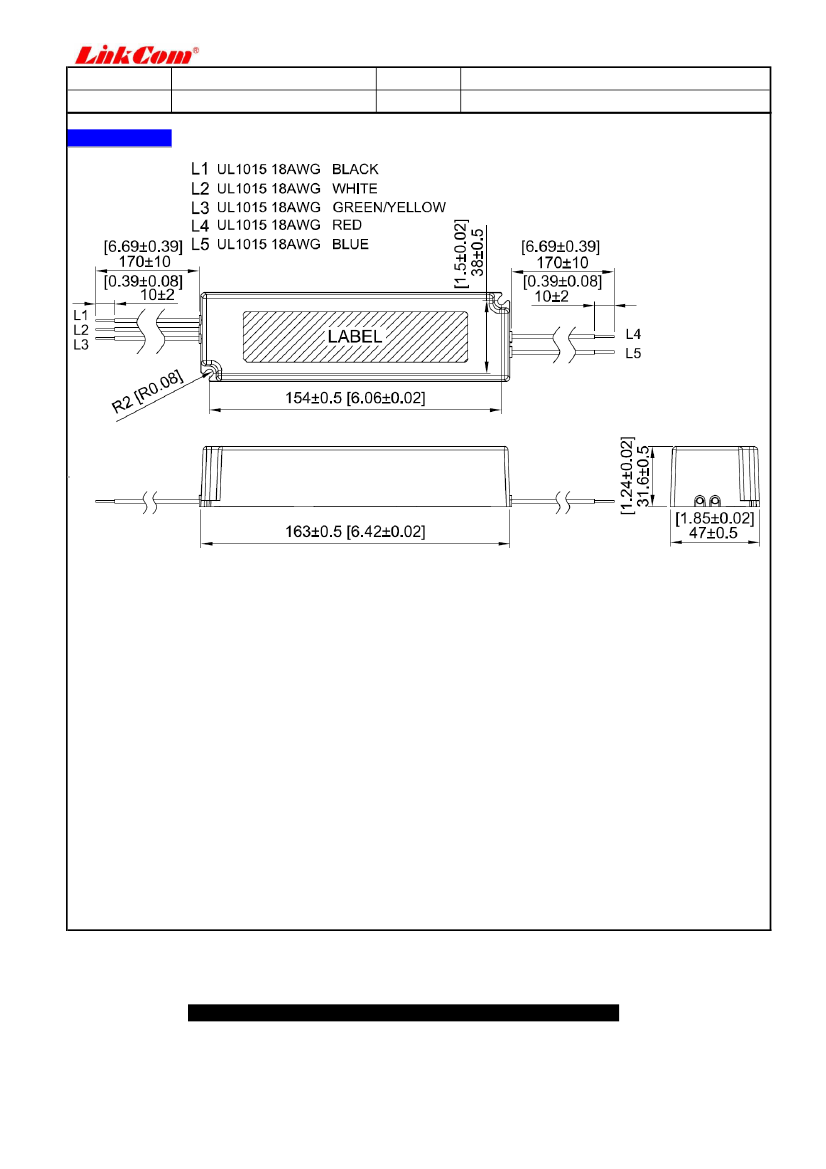

Dimension(L*W*H): 163 * 47 * 31.6 mm

◆

Dimension(L*W*H): 6.42 * 1.85 * 1.24 inch

◆

ROHS Compliant

Module : LCCE-045 132

*(8)

MODEL

SPECIFICATION

DC OUTPUT VOLTAGE (V)

PRESET ACCURACY (%) *(7)

OUTPUT CURRENT(A) *(5)

O/P NOISE (P-P, V) *(3)

LINE REGULATION (%) *(6)

DC OUTPUT POWER

EFFICIENCY(typ @Full Load)

TURN ON DELAY TIME

INPUT VOLTAGE RANGE

INPUT FREQUENCY

INRUSH CURRENT (typ)

AC CURRENT

LEAKAGE CURRENT

SHORT CIRCUIT PROTECTION

OVER TEMP. PROTECTION

OVER V, PROTECTION

The SCP, OTP and OVP will restart automaticalty after the fault condition is removed.

-20 to +60℃@full load

-40 to +80℃

10 to +90%

0.03% /

℃

(0-50℃, typ)

UL 60950-1

CE EN55015 / FCC Part15

163 * 47 * 31.6 mm

【6.42

* 1.85 * 1.24 inch】

46.8 W

87%

3000ms at full load 115VAC/230VAC

90-305VAC, 127-431VDC, Normal：100-277VAC

Range:47-63Hz, Normal：50-60Hz

COLD START 43A @ 230VAC

0.7A/100VAC

0.75mA/264VAC

min.

norm.

1.3

3.5

*,# =SEE NOTES BELOW

LCCE-045 132

max.

OPERATING TEMP.*(4)

STORAGE TEMPERATURE

RELATIVE HUMIDITY

TEMP. COEFFICIENT

SAFETY

EMI

DIMENSIONS(L*W*H)

NOTES：(1)All parameters not specially mentioned are measured 230VAC input.

(2)All specifications Typical @25℃, unless otherwise noted, at normal line and load.

(3)Ripple and Noise measured directly at pins/terminals at nom. load, @20MHz bandwidth.

(4)Specified for free-air convection cooling.

(5)Minimum load is NOT required for proper operation .

(6)Line regulation measured from 100VAC to 264VAC.

(7)Preset accuracy measured at normal load, 120VAC input.

(8)100% Production Tested.

※

Reference

www.linkcom.com.tw

For more information, please contact with: sales@linkcom.com.tw
