FP6191 Overview

RF AMPLIFIER MODEL

FP6191 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	22 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	600 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6191

Features

Low Noise Figure: 2.5 dB Typical

Output Power: + 21.5 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6191, 4 Pin TO-8 (T4)

TN6191, 4 Pin Surface Mount (SM3)

FP6191, 4 Pin Flatpack (FP4)

BX6191, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +57 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +52 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +36 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

100 - 600 MHz

23.5

+21.5

-35

<1.25:1

<1.50:1

2.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

100 - 600 MHz

22.0 Min.

+20 Min.

-33 Max.

2.0:1 Max.

4.0 Max.

+15

100 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power.... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

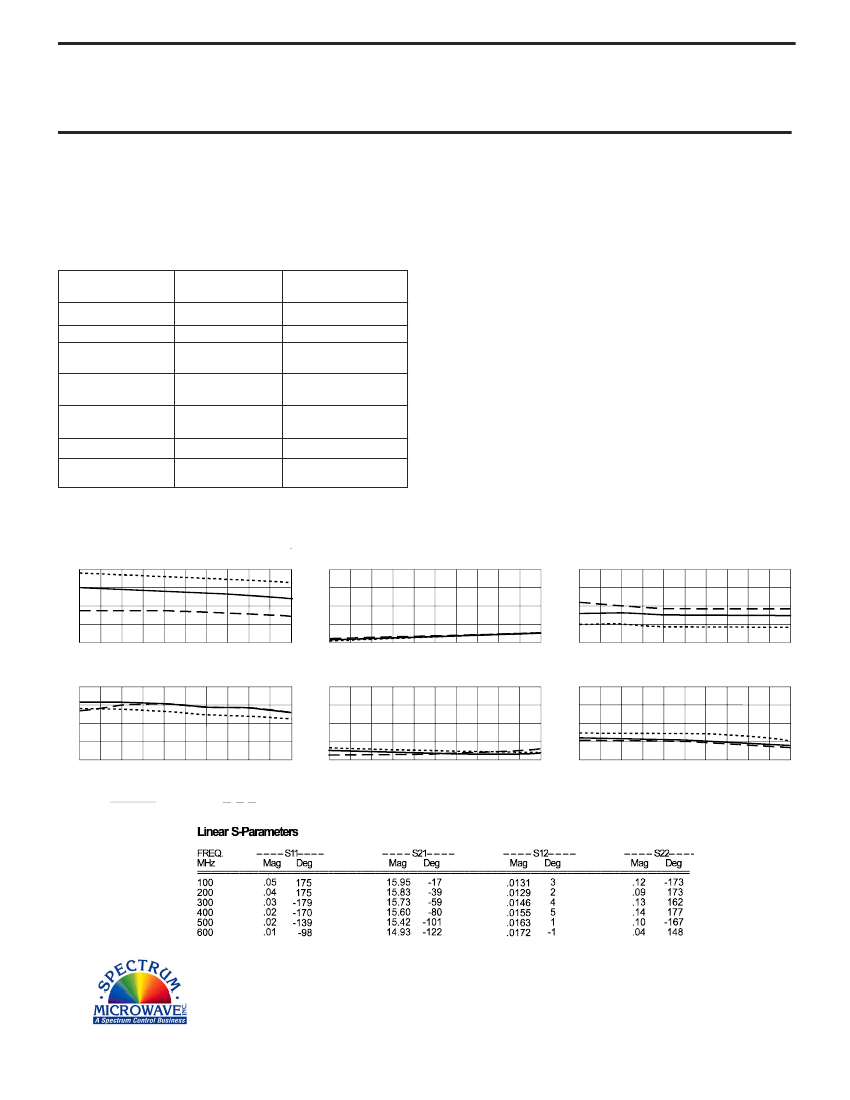

Typical Performance Data

tStart 100 MHz

+23

+22

+21

+20

Start 100 MHz

Stop 600 MHz

1.5

1.0

Start 100 MHz

Stop 600 MHz

1.5

1.0

Start 100 MHz

Stop 600 MHz

2.0

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 100 MHz

Stop 600 MHz

2.0

Start 100 MHz

Stop 600 MHz

1 dB Comp. (dBm)

Input VSWR

Output VSWR

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

02/27/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6191 Related Products

	FP6191	BX6191	TM6191	TN6191
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	22 dB	22 dB	22 dB	22 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	600 MHz	600 MHz	600 MHz	600 MHz
Minimum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Base Number Matches	1	1	1	1
