FP6238 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6238

FP6238: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size42KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6238 Overview

RF AMPLIFIER MODEL

FP6238 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	8 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6238

Features

High Output Power: +23 dBm Typical

High Third Order Intercept: +35 dBm Typical

Cross to Watkins-Johnson WJ-PA38 Amplifier

Environmental Screening Available

Available as:

TM6238, 4 Pin TO-8 (T4)

TN6238, 4 Pin Surface Mount (SM3)

FP6238, 4 Pin Flatpack (FP4)

BX6238, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point .......+60 dBm (Typ.)

Second Order Two Tone Intercept Point.........+56 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +35 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

200 - 2000 MHz

+23

-19

<1.7:1

<1.5:1

<4.0

+15

150

MIN/MAX

Ta = -55 ºC to +85 ºC

200 - 2000 MHz

8.0 Min.

+22 Min.

-17.0 Max.

2.0:1 Max.

5.2 Max.

+15

160 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power ... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

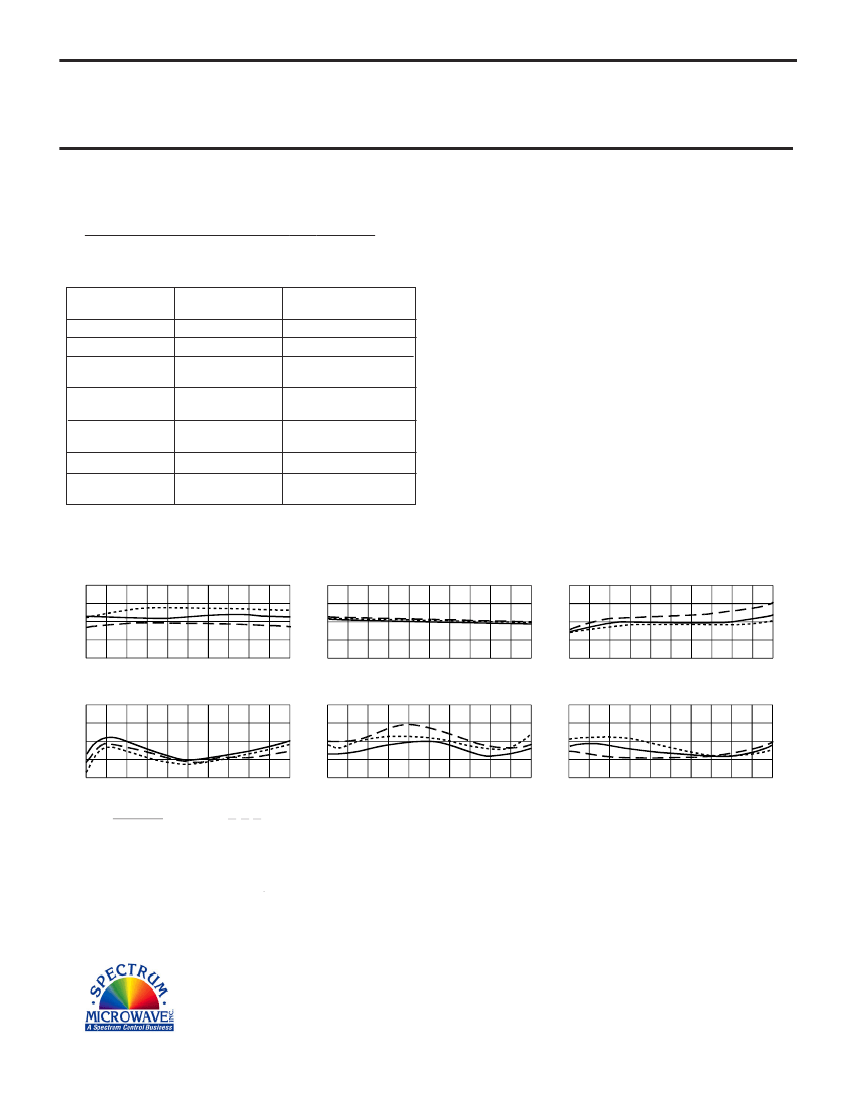

Typical Performance Data

Start 200 MHz

Stop 2000 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Noise Figure (dB)

Start 200 MHz

Stop 2000 MHz

Start 200 MHz

Stop 2000 MHz

+26

+25

+24

+23

+22

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 200 MHz

Stop 2000 MHz

Start 200 MHz

Stop 2000 MHz

Start 200 MHz

Stop 2000 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/27/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
