RF AMPLIFIER
MODEL
TM6416
Features
!
!
!
!
Medium Gain: 15 dB Typical
Medium Output Power: +13.5 dBm Typical
Operating Temp. - 55 ºC to +85 ºC
Environmental Screening Available
Available as:
TM6416, 4 Pin TO-8 (T4)
TN6416, 4 Pin Surface Mount (SM3)
FP6416, 4 Pin Flatpack (FP4)
BX6416, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point .......+41 dBm (Typ.)
Second Order Two Tone Intercept Point ....... +35 dBm (Typ.)
Third Order Two Tone Intercept Point ........... +27 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25
ºC
5 - 500 MHz
15
+13.5
-17.5
<1.25:1
<1.25:1
3.5
+15
35
MIN/MAX
Ta = -55
ºC
to +85
ºC
5 - 500 MHz
14.0 Min.
+12.0 Min.
-17.0 Max.
2.0:1 Max.
2.0:1 Max.
4.5 Max.
+15
38 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................. + 13 dBm
Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)
Maximum Peak Power ................... 0.5 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.

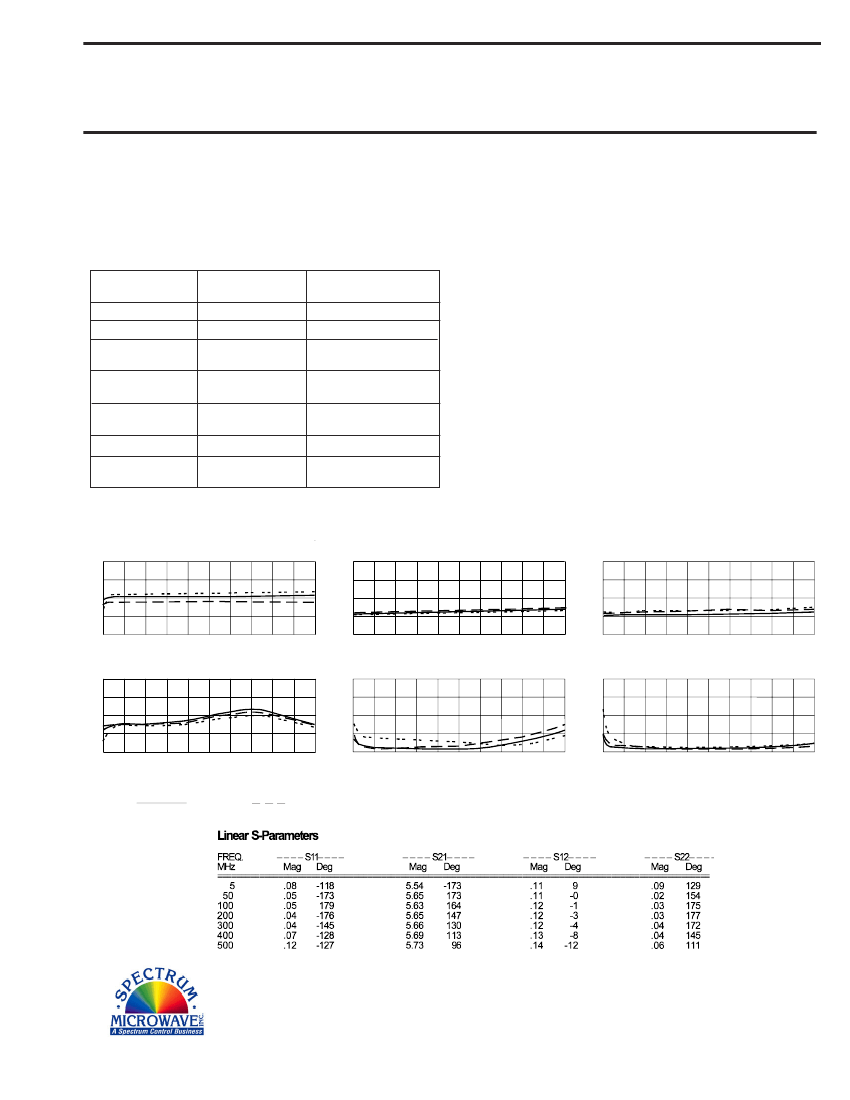

Typical Performance Data
17
16
15
14
13
Start 5 MHz
Stop 500 MHz
Gain (dB)
0
- 10
- 15
- 20
- 25
Reverse Isolation (dB)
Noise Figure (dB)
6
5
4
3
2
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
+16
+15
+14
+13
+12
Start 5 MHz
1 dB Comp. (dBm)
2.0
1.5
1.0
Input VSWR
2.0
1.5
1.0
Output VSWR
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Start 5 MHz
Stop 500 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
