FP6487 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6487

FP6487: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6487 Overview

RF AMPLIFIER MODEL

FP6487 Parametric

Parameter Name	Attribute value
package instruction	MODULE,4LEAD,.5SQ
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	37 mA
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

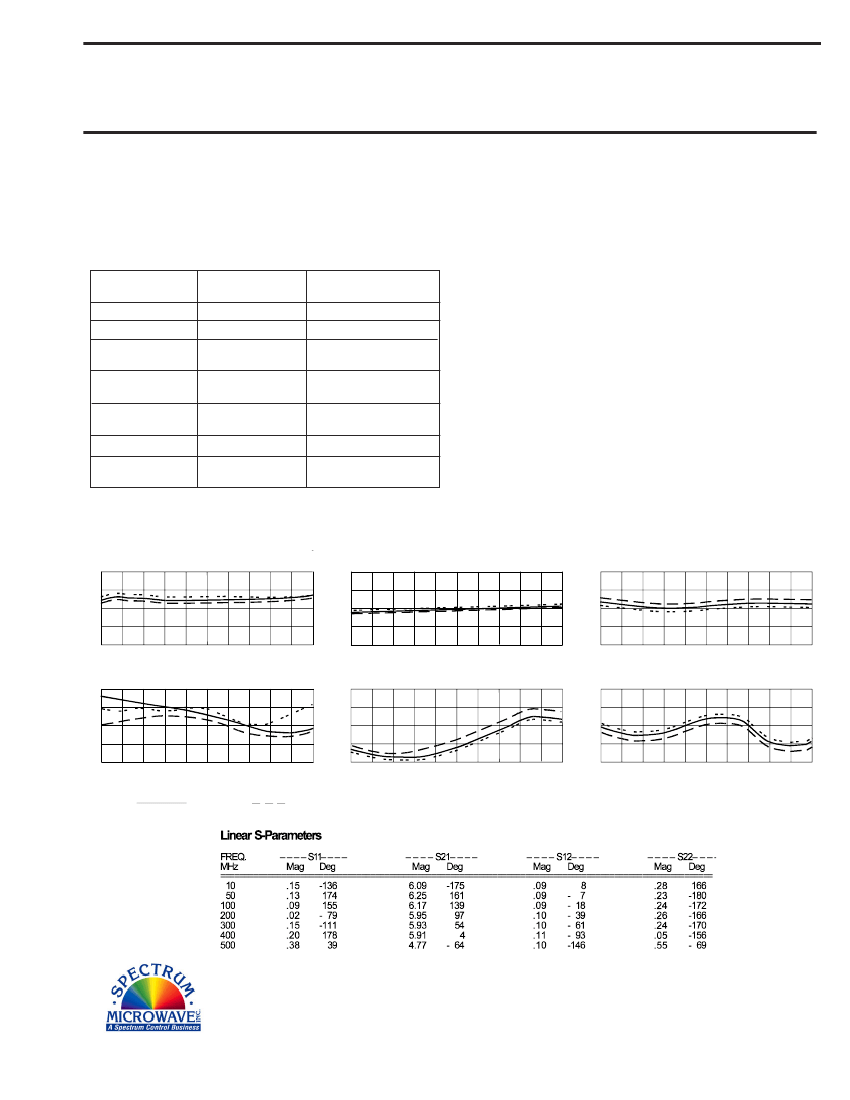

RF AMPLIFIER

MODEL

TM6487

Features

High Output at 1dB Compression: +17.5 dBm

High Efficiency: 33 mA at 15V

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6487, 4 Pin TO-8 (T4)

TN6487, 4 Pin Surface Mount (SM3)

FP6487, 4 Pin Flatpack (FP4)

BX6487, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +51dBm (Typ.)

Second Order Two Tone Intercept Point ....... +45 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10 - 400 MHz

15.5

+17.5

-20

1.50:1

1.70:1

3.2

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 400 MHz

14.0 Min.

+15.0 Min.

-18 Max.

2.0:1* Max.

2.0:1 Max.

5.0 Max.

+15

37 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power......5 0 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 400 MHz

Gain (dB)

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 400 MHz

Noise Figure (dB)

Start 10 MHz

Stop 400 MHz

+19

+18

+17

+16

+15

1 dB Comp. (dBm)

2.6

2.2

1.8

1.4

1.0

Input VSWR

2.6

2.2

1.8

1.4

1.0

Output VSWR

Start 10 MHz

Stop 400 MHz

Start 10 MHz

Stop 400 MHz

Start 10 MHz

Stop 400 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

11/10/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6487 Related Products

	FP6487	BX6487	TM6487	TN6487
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
package instruction	MODULE,4LEAD,.5SQ	H1	CAN4,.3	-
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	14 dB	14 dB	14 dB	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-
Maximum operating frequency	400 MHz	400 MHz	400 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
