FP6513PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6513PM Overview

RF AMPLIFIER MODEL

FP6513PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	15.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6513PM

Features

!

Superior Low Phase Noise Performance

24 Volt Operation

Operating Temp. -55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6513PM, 4 Pin TO-8 (T4)

TN6513PM, 4 Pin Surface Mount (SM3)

FP6513PM, 4 Pin Flatpack (FP4)

BX6513PM,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point........+47 dBm (Typ.)

Second Order Two Tone Intercept Point.........+41 dBm (Typ.)

Third Order Two Tone Intercept Point.............+29 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +26 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power.......50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise Figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

5 - 500 MHz

17

+16.5

-19

<1.5:1

<1.75:1

3.75

+24

50

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

15.5 Min.

+15.0 Min.

-18 Max.

2.0:1 Max.

5.0 Max.

+24

53 Max.

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-163

-170

Guaranteed

-159

-166

Note: Care should always be taken to effectively ground the case of each unit.

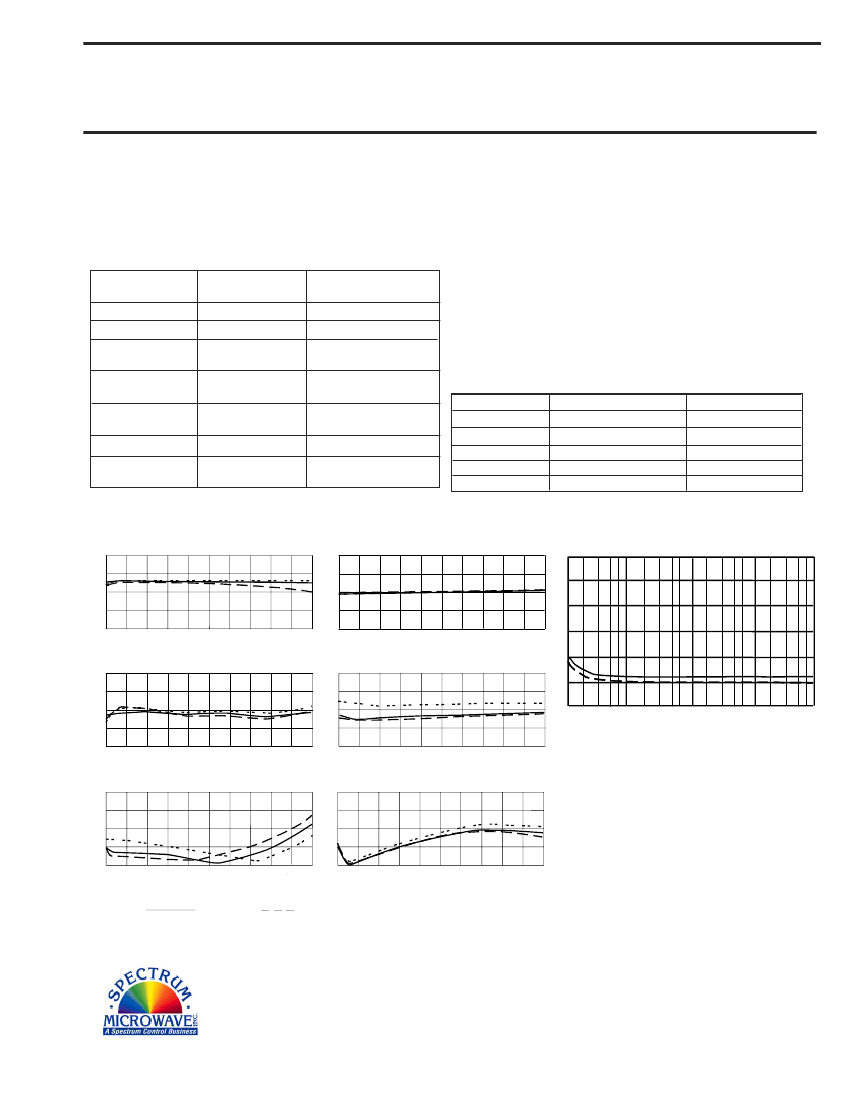

Typical Performance Data

19

18

17

16

15

Start 5 MHz

Stop 500 MHz

Gain (dB)

0

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

-120

-130

-140

-150

Start 5 MHz

Stop 500 MHz

-160

-170

-180

100

Phase Noise (dBc/Hz)

+19

+18

+17

+16

+15

Start 5 MHz

1 dB Comp. (dBm)

6

5

4

3

2

Noise Figure (dB)

1K

10K

100K

1M

_________Guarantee __ __ __ __Typical

Start 5 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 500 MHz

Start 5 MHz

Output VSWR

*

Stop 500 MHz

Residual Phase Noise Test Conditions

Carrier Frequency: 200 MHz

Power Output: +16.5 dBm

Temperature: 25 ºC

Agilent ES5500 System

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

09/14/05

www.SpectrumMicrowave.com
