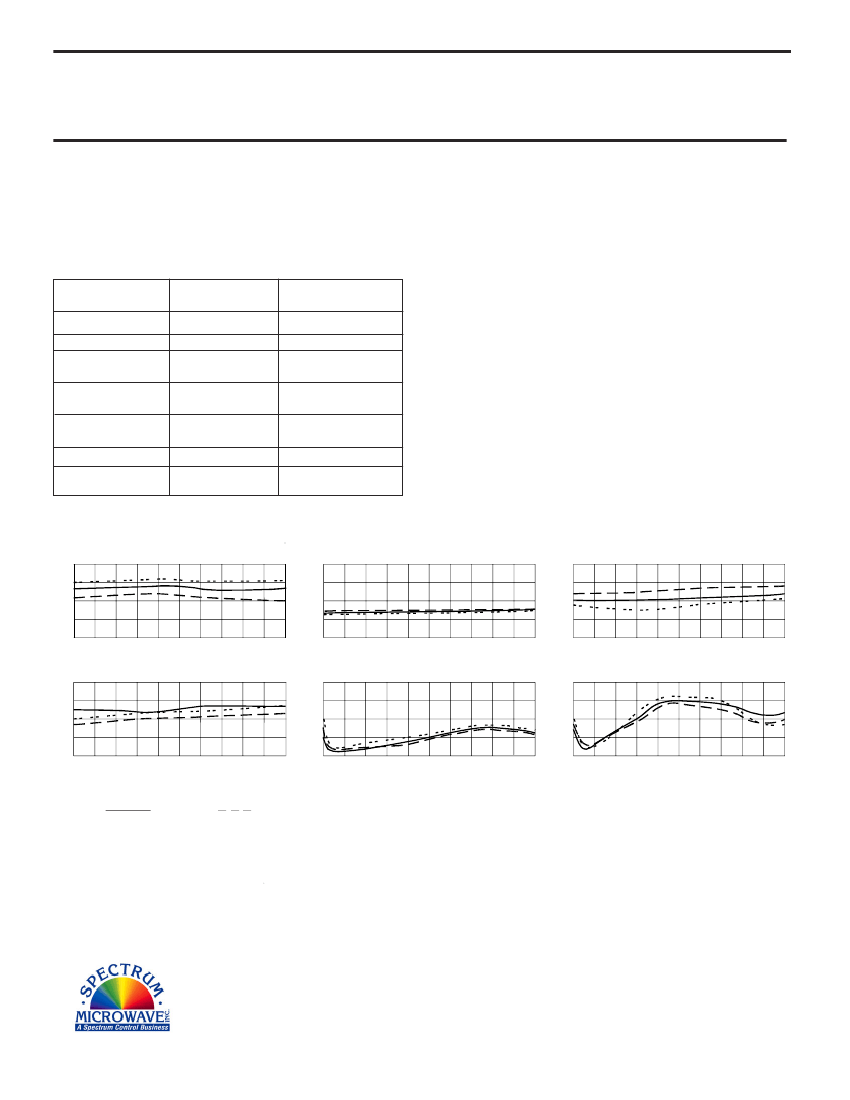

Preview

FP6526: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size37KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6526 Overview

RF AMPLIFIER MODEL

FP6526 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	26 dB
Maximum input power (CW)	20 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	96 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM6526

Features

n

High Output Power: +20.5 dBm Typical

High Gain: 28 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6526, 4 Pin TO-8 (T4)

TN6526, 4 Pin Surface Mount (SM3)

FP6526, 4 Pin Flatpack (FP4)

BX6526, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point .....

++56

dBm (Typ.)

Second Order Two Tone Intercept Point ......

++50

dBm (Typ.)

Third Order Two Tone Intercept Point ..........

++34

dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

10-500 MHz

28

20.5

-38

1.5:1

3.75

+15

93

MIN/MAX

Ta = -55 ºC to +85 ºC

10-500 MHz

26 Min

18.5 Min

-35 Max.

2.0:1 Max.

4.0 Max.

+15 Min

96 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

30

29

28

27

26

Start 10 MHz

Stop 500 MHz

Gain (dB)

0

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

4.5

3.5

2.5

Noise Figure (dB)

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

1 dB Comp. (dBm)

+22

+21

+20

+19

+18

Start 10 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 10 MHz

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

MHz

=========================================================================================================

10

.07

95

26.94

9

.01

18

128

.13

50

.03

90

27.31

- 18

.01

5

-155

.06

100

.04

90

27.35

- 41

.01

- 12

-142

.12

200

.09

84

27.23

- 84

.01

- 10

-161

.23

300

.15

55

26.84

-129

.01

- 28

165

.25

400

.16

27

26.60

-173

.01

- 60

128

.24

500

.12

- 3

27.36

139

.01

- 45

76

.24

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/11/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6526 Related Products

	FP6526	BX6526	TM6526	TN6526
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	API Technologies
package instruction	FP4, FLATPACK-4	H1	T4, TO-8, 4 PIN	MODULE,4LEAD,.45SQ
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	26 dB	26 dB	26 dB	26 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm	20 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ	-	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	15 V	-	15 V	15 V
Maximum slew rate	96 mA	-	96 mA	96 mA
