FP6544 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6544

FP6544: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size70KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6544 Overview

RF AMPLIFIER MODEL

FP6544 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	13 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	38 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

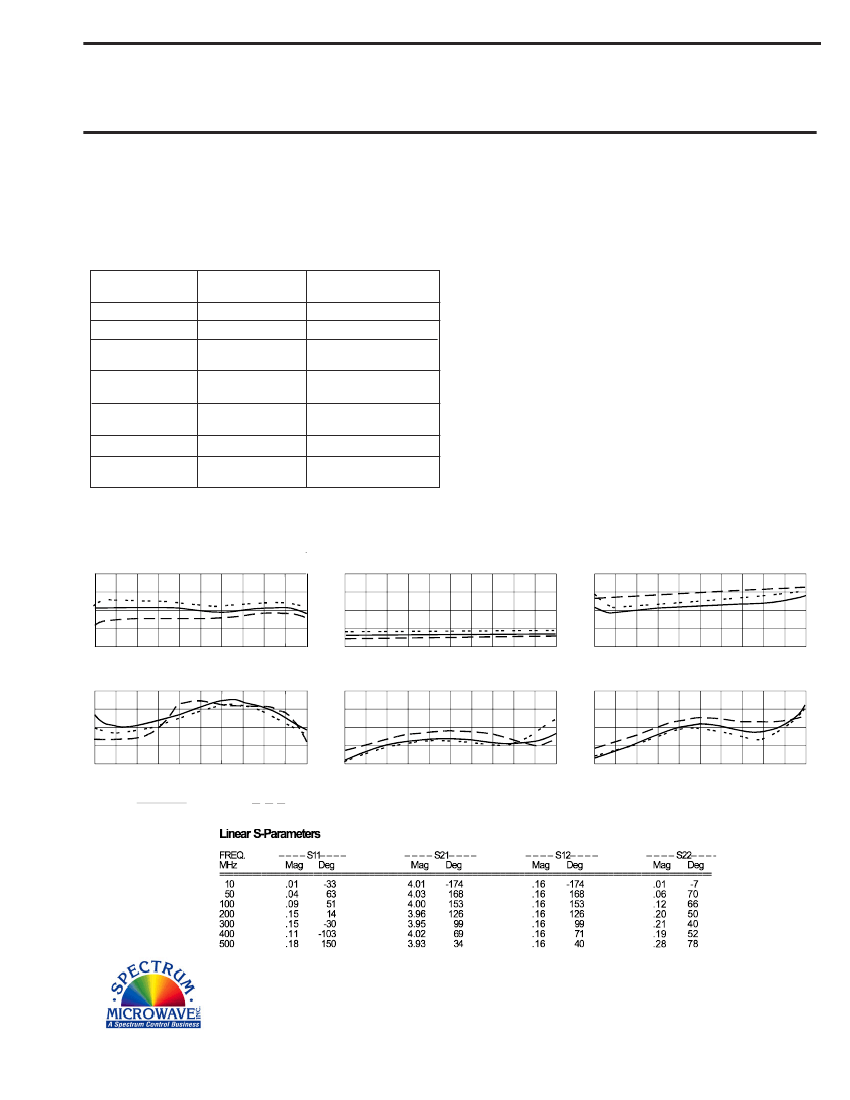

RF AMPLIFIER

MODEL

TM6544

Features

Low Noise: 2 dB Typical

High IP3 = +32 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM6544, 4 Pin TO-8 (T4)

TN6544, 4 Pin Surface Mount (SM3)

FP6544, 4 Pin Flatpack (FP4)

BX6544, Connectorized Housing (H1)

PN6544, 4 Pin Surface Mount (SM11)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ..... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +46 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +32 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

10 - 500 MHz

+15

-15.5

<1.35:1

<1.5:1

2.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 500 MHz

10.5 Min.

+13.0 Min.

-14.5 Max.

2.0:1 Max.

3.5 Max.

+15

Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power ................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 500 MHz

Gain (dB)

- 5

- 10

- 15

- 20

Reverse Isolation (dB)

Start 10 MHz

Stop 500 MHz

Noise Figure (dB)

Start 10 MHz

Stop 500 MHz

+17

+16

+15

+14

+13

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/11/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6544 Related Products

	FP6544	BX6544	PN6544	TM6544	TN6544
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	-	-	API Technologies	API Technologies
package instruction	FP4, FLATPACK-4	-	-	CAN4,.3	MODULE,4LEAD,.45SQ
Reach Compliance Code	compli	compli	-	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	-	COMPONENT	COMPONENT
Gain	10.5 dB	10.5 dB	-	10.5 dB	10.5 dB
Maximum input power (CW)	13 dBm	13 dBm	-	13 dBm	13 dBm
Number of functions	1	-	-	1	1
Number of terminals	4	-	-	4	4
Maximum operating frequency	500 MHz	500 MHz	-	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	-	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C
Package body material	METAL	-	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD(UNSPEC)	-	-	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	15 V	-	-	15 V	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum slew rate	38 mA	-	-	38 mA	38 mA
Maximum voltage standing wave ratio	2	2	-	2	2
