FP6547: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size38KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6547 Overview

RF AMPLIFIER MODEL

FP6547 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=23DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	11 dB
Maximum input power (CW)	13 dBm
Number of functions	1
Number of terminals	4
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	58 mA
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

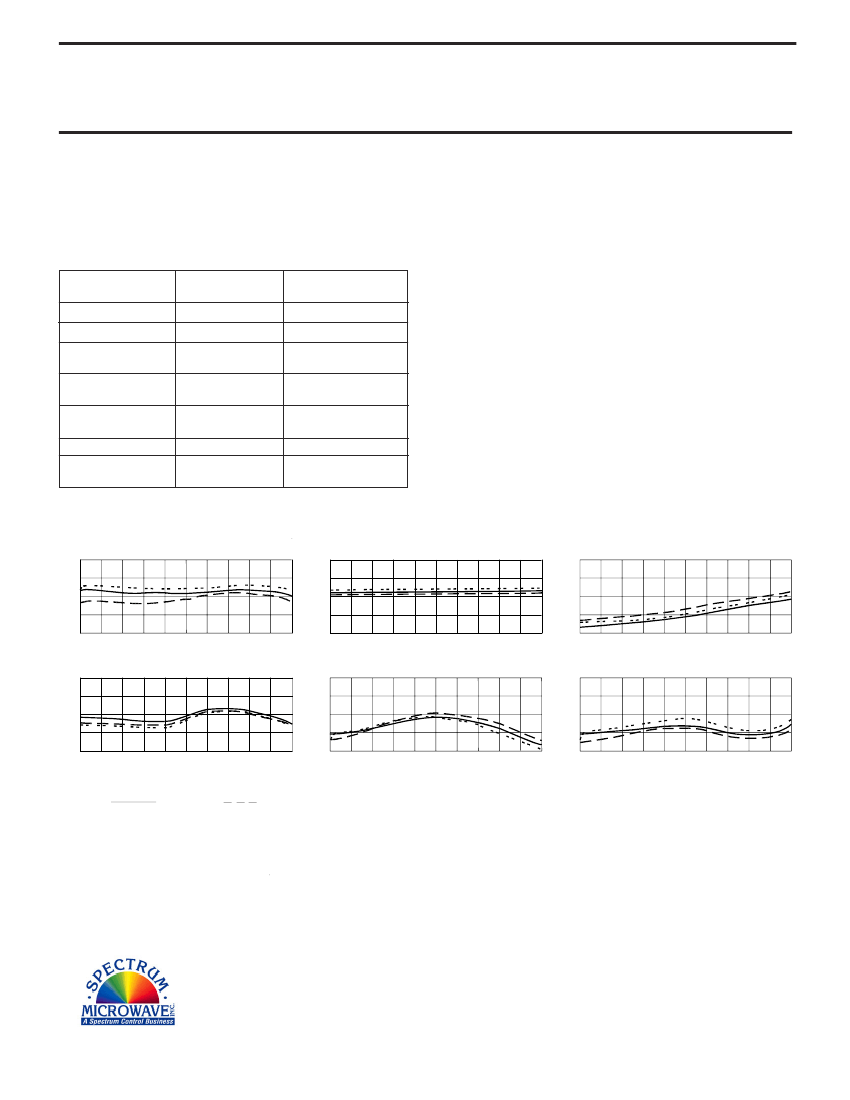

RF AMPLIFIER

MODEL

TM6547

Features

n

High IP

3

: +35 dBm Typical

High Output Power: + 19 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

Environmental Screening Available

Available as:

TM6547, 4 Pin TO-8 (T4)

TN6547, 4 Pin Surface Mount (SM3)

FP6547, 4 Pin Flatpack (FP4)

BX6547, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+54 dBm (Typ.)

Second Order Two Tone Intercept Point.........+48 dBm (Typ.)

Third Order Two Tone Intercept Point.............+35 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

Noise Figure (dB)

Power

Vdc

mA

TYPICAL

Ta= 25 ºC

10 - 500 MHz

12.5

+19

-17

1.75:1

1.5:1

<4.0

+15

55

MIN/MAX

Ta = -55 ºC to +85 ºC

10 - 500 MHz

11.0

+17.5

Min.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.2 Watt (3

µsec

Max.)

-15 Max.

2.0:1 Max.

4.5

Max.

+15

58

Max.

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

15

14

13

12

11

Start 10 MHz

Stop 500 MHz

Reverse Isolation (dB)

0

- 10

- 20

- 30

- 40

Start 10 MHz

Stop 500 MHz

Noise Figure (dB)

4

3

2

Start 10 MHz

Stop 500 MHz

1 dB Comp. (dBm)

+21

+20

+19

+18

+17

Start 10 MHz

Stop 500 MHz

Input VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 500 MHz

Output VSWR

2.0

1.5

1.0

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Linear S-Parameters

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag Deg

Mag

Deg

Mag

Deg

Mag

Deg

========================================================================================

10

.10

- 13

4.62

-173

.13

-174

-8

.10

50

.10

7

4.62

169

.13

169

3

.11

100

.12

14

4.57

155

.13

153

5

.12

200

.17

6

4.54

129

.13

127

-8

.15

300

.18

- 16

4.53

103

.13

102

-39

.14

400

.13

- 44

4.52

75

.14

76

- 94

.12

500

.04

- 89

4.43

43

.14

50

-170

.17

600

.09

92

4.05

10

.15

22

140

.31

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

05/11/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6547 Related Products

	FP6547	BX6547	TM6547	TN6547
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	11 dB	11 dB	11 dB	11 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	API Technologies	-
package instruction	FP4, FLATPACK-4	-	T4, TO-8, 4 PIN	MODULE,4LEAD,.45SQ
Number of functions	1	-	1	1
Number of terminals	4	-	4	4
Package body material	METAL	-	METAL	METAL
Encapsulate equivalent code	MODULE,4LEAD,.5SQ	-	CAN4,.3	MODULE,4LEAD,.45SQ
power supply	15 V	-	15 V	15 V
Maximum slew rate	58 mA	-	58 mA	58 mA
