FP6559PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP6559PM

FP6559PM: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size46KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP6559PM Overview

RF AMPLIFIER MODEL

FP6559PM Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10 dB
Maximum input power (CW)	18 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

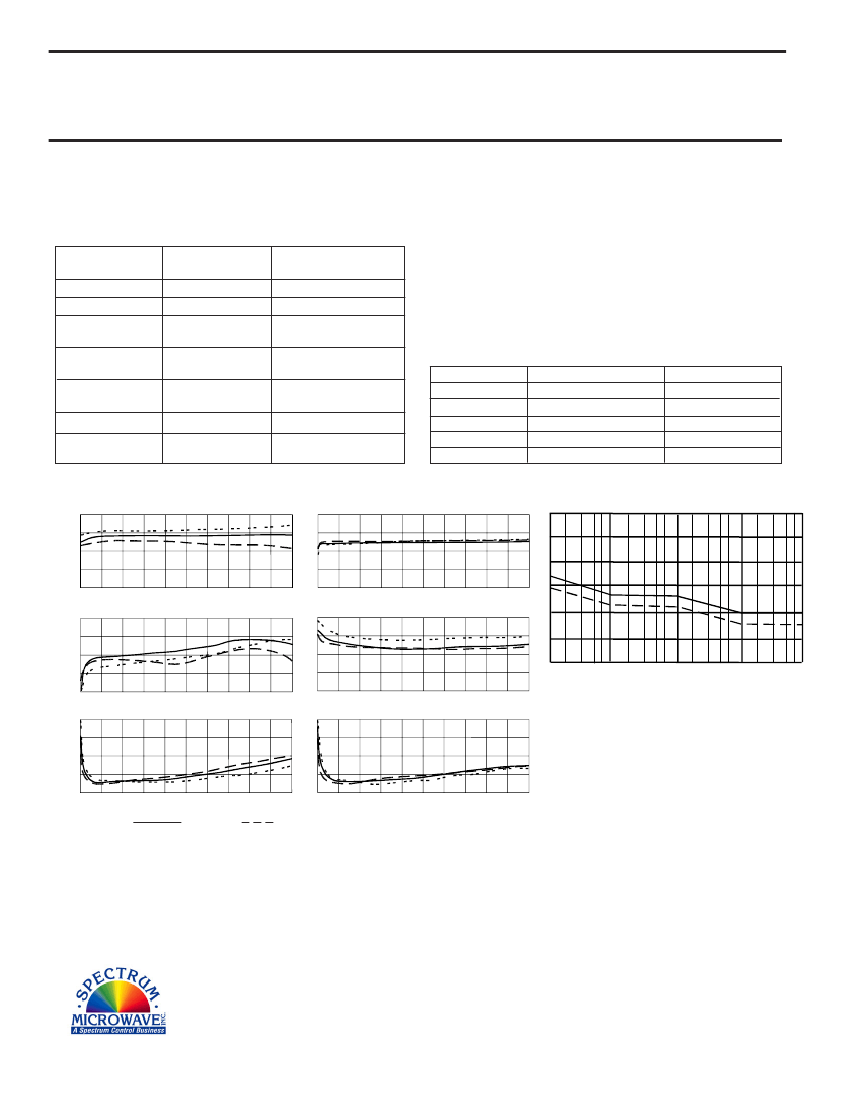

RF AMPLIFIER

MODEL

TM6559PM

Features

Superior Phase Noise Performance

Medium Gain: 11.5 dB Typical

High Output Power: +22 dBm Typical

Operating Temp. - 55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

5 - 500 MHz

11.5

+22

-15

1.5:1

5.5

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

10.0 Min.

+20 Min.

-14 Max.

2.0:1 Max.

7.0 Max.

+15

95 Max.

Available as:

TM6559PM, 4 Pin TO-8 (T4)

TN6559PM, 4 Pin Surface Mount (SM3)

FP6559PM, 4 Pin Flatpack (FP4)

BX6559PM,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +52 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +46 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +36 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +20 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-161

-167

-168

-174

Guarantee (Min.)

-157

-163

-164

-170

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

+24

+23

+22

+21

+20

Start

2.0

1.5

1.0

Start

5 MHz

Stop 500 MHz

Gain (dB)

-10

-20

-30

-40

2.0

1.5

1.0

Reverse Isolation (dB)

-130

-140

-150

-160

Phase Noise (dBc/Hz)

Start 5 MHz

Stop 500 MHz

Start 5 MHz

Stop 500 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

-170

-180

-190

100

10K

100K

_________Guarantee __ __ __ __Typical

Start 5 MHz

Stop 500 MHz

Input VSWR

Output VSWR

Phase Noise Test Conditions:

Carrier Frequency: 200 MHz

Power Output: +22 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 500 MHz

5 MHz

Stop 500 MHz

Start 5 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Linear S-Parameters

– – – – S21– – – –

FREQ.

– – – – S11– – – –

– – – – S12– – – –

– – – – S22– – – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

.31

- 51

3.70

-154

.12

113

.39

.05

-112

3.65

175

.16

110

.07

100

.06

-121

3.66

166

.16

-1

102

.07

200

.08

-121

3.66

149

.16

-2

.09

300

.11

-127

3.65

133

.17

-5

.11

400

.15

-134

3.67

117

.17

-8

.14

500

.19

-142

3.66

101

.17

-12

.16

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6559PM Related Products

	FP6559PM	BX6559PM	TM6559PM	TN6559PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	10 dB	10 dB	10 dB	10 dB
Maximum input power (CW)	18 dBm	18 dBm	18 dBm	18 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	API Technologies	API Technologies	API Technologies	-
