FP6576PM Overview

RF AMPLIFIER MODEL

FP6576PM Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	26 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

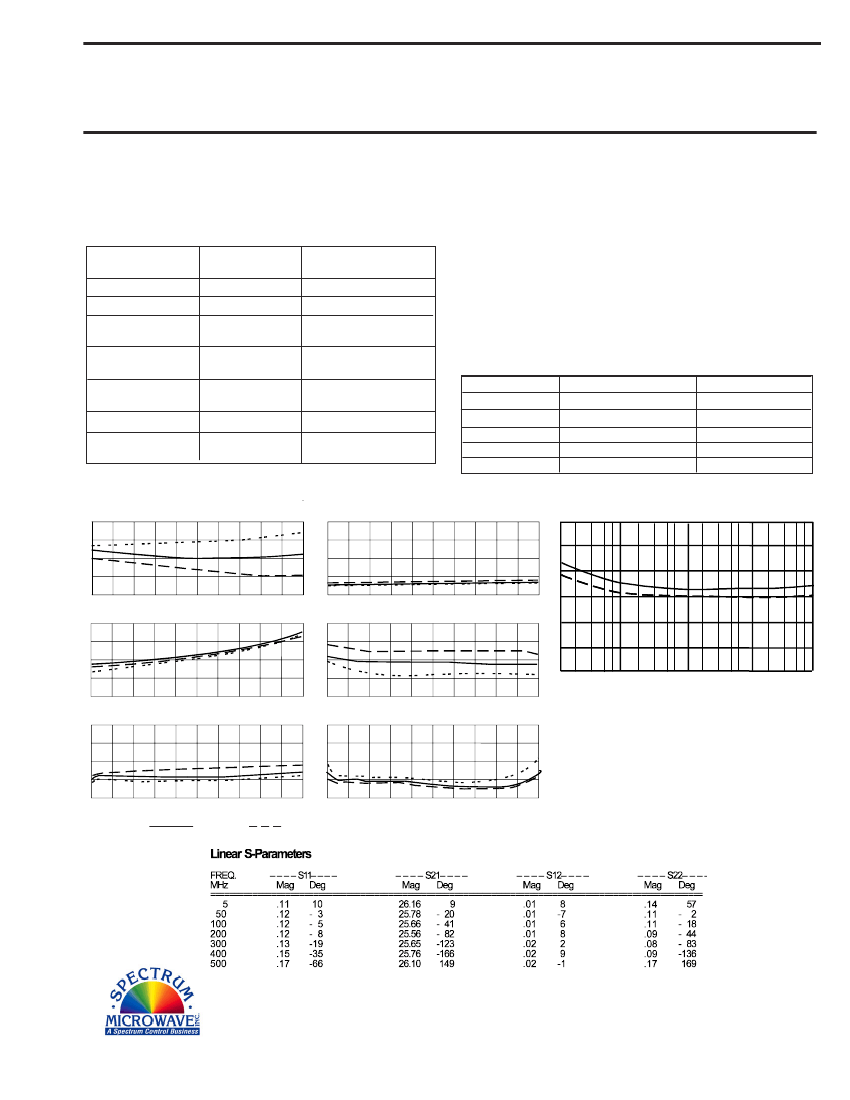

RF AMPLIFIER

MODEL

TM6576PM

Features

Superior Phase Noise Performance

High Gain: 28 dB Typical

Output Power: +16 dBm Typical

Operating Temp. -55 ºC to +85 ºC

TYPICAL

Ta= 25 ºC

5 - 500 MHz

+16

-34

<1.5:1

5.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 500 MHz

26.0 Min.

+14 Min.

-33 Max.

2.0:1 Max.

6.0 Max.

+15

68 Max.

Available as:

TM6576PM, 4 Pin TO-8 (T4)

TN6576PM, 4 Pin Surface Mount (SM3)

FP6576PM, 4 Pin Flatpack (FP4)

BX6576PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +56 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +52 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +10 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise Figure (dB)

Power

Vdc

VSWR

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-151

-158

-160

-159

Guarantee (Min.)

-147

-154

-156

-155

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 500 MHz

Gain (dB)

-10

-20

-30

-40

Start 5 MHz

Reverse Isolation (dB)

Phase Noise (dBc/Hz)

-130

-140

-150

-160

Stop 500 MHz

+20

+18

+16

+14

+12

Start 5 MHz

1 dB Comp. (dBm)

Noise Figure (dB)

-170

-180

-190

100

10K

100K

_________Guarantee __ __ __ __Typical

Start 5 MHz

Stop 500 MHz

2.0

1.5

1.0

Start 5 MHz

Input VSWR

2.0

1.5

1.0

Stop 500 MHz

Start 5 MHz

Output VSWR

Residual Phase Noise Test Conditions

Carrier Frequency: 200 MHz

Power Output: +17 dBm

Temperature: 25 ºC

Agilent ES5500 System

Stop 500 MHz

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

3/31/04

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP6576PM Related Products

	FP6576PM	BX6576PM	TM6576PM	TN6576PM
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	26 dB	26 dB	26 dB	26 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	-	API Technologies	API Technologies	API Technologies
