ABLS-11.0592MHZ-30-R050-B-4-Z-F-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABLS-11.0592MHZ-30-R050-B-4-Z-F-T

ABLS-11.0592MHZ-30-R050-B-4-Z-F-T: DescriptionParallel - Fundamental Quartz Crystal, 11.0592MHz Nom, ROHS COMPLIANT, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size858KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ABLS-11.0592MHZ-30-R050-B-4-Z-F-T Overview

Parallel - Fundamental Quartz Crystal, 11.0592MHz Nom, ROHS COMPLIANT, SMD, 2 PIN

ABLS-11.0592MHZ-30-R050-B-4-Z-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e3
load capacitance	30 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	11.0592 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

HC/49US (AT49) SMD LOW PROFILE CRYSTAL

ABLS

FEATURES:

• Suitable for RoHS reflow

• Available for tight stability & extended

temperature range

RoHS

Compliant

APPLICATIONS:

• Computers, Modems, Microprocessors

• Automotive and Industrial

• Wireless Applications

11.5 x 4.8 x 4.2 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency

Operation Mode

ABLS Series

3.579545 MHz to 75 MHz

AT cut (Fundamental or 3rd OT) or BT cut (See options)

3.579545MHz - 24.0MHz (Fundamental: Standard)

24.01MHz - 75.00MHz (3rd- Overtone: Standard)

24.01MHz - 50.00MHz (Fund. AT or BT: See options)

TABLE 1: STANDARD ESR

3.579 - 4.999 (Fund.)

5.000 - 5.999 (Fund.)

6.000 - 7.999 (Fund.)

8.000 - 8.999 (Fund.)

9.000 - 9.999 (Fund.)

10.000 - 15.999 (Fund.)

16.000 - 50.000 (Fund.)

24.01 - 31.999 (3rd O/T)

32.000 - 75.00 (3rd O/T)

FREQUENCY (MHz)

ESR (

Ω

) MAX

180

120

100

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Stability over the

Operating Temp. (Ref to +25°C)

Equivalent Series Resistance

Shunt Capacitance C

Load Capacitance C

Drive Level

Aging at 25°C (first year)

Insulation Resistance

Spurious Responses

Drive level dependency (DLD)

0°C to + 70°C (see options)

- 55°C to + 125°C

± 50 ppm max. (see options)

See Table 1

7pF max.

18pF (see options)

1 mW max., 100μW typical

± 5ppm max.

500 M

min at 100Vdc ± 15V

-3dB max.

from 1μW to 500μW

(

minimum 7 points tested)

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABLS -

MHz -

-R

Blank: Bulk

T: Tape & Reel (1k)

T2: Tape & Reel (250)

Frequency in MHz

e.g. 3.579545MHz

14.31818MHz

26.000MHz

Load Capacitance

Please specify CL (8 to 33pF)

in pF or S for Series

Please contact ABRACON for other

values

Packaging

F: Fund.AT for >24MHz

FB: Fund.BT for >24MHz

Mode

ESR if other than STD

Specify a value in

Ω

Operating Temp.

A: -10°C ~ +60°C

B: -20°C ~ +70°C

C: -30°C ~ +70°C

N: -30°C ~ +85°C

D: -40°C ~ +85°C

J(***): -40°C to +105°C

K(***): -40°C to +125°C

L(***): -55°C to +125°C

Freq. Tolerance

H5: ± 5 ppm

1: ± 10 ppm

7: ± 15 ppm

2: ± 20 ppm

3: ± 25 ppm

4: ± 30 ppm

* -10 to +60° C only.

** Option A, E, B, and 0 to +70° C only.

*** Frequency stability ±50ppm, ±100ppm, or ±150ppm only.

Contact ABRACON for tighter frequency stability.

**** For Fundamental BT, frequency stability

± 100ppm max. at -10° C to +60° C only.

Freq. Stability

U: ± 10 ppm (*)

G: ± 15 ppm (**)

X: ± 20 ppm

W: ± 25 ppm

Y: ± 30 ppm

H: ± 35 ppm

Q: ± 100 ppm (****)

R: ± 150 ppm

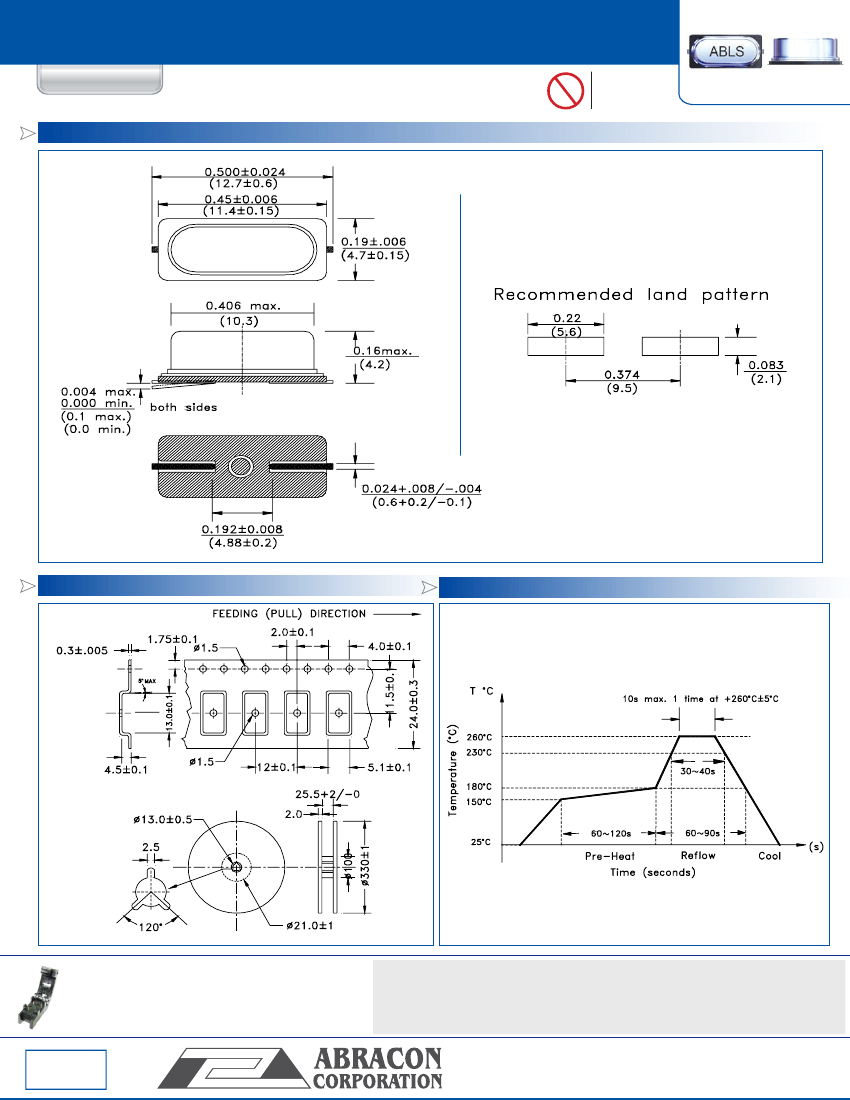

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 08.20.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

ABLS-11.0592MHZ-30-R050-B-4-Z-F-T Related Products

	ABLS-11.0592MHZ-30-R050-B-4-Z-F-T	ABLS-10.000MHZ-L-4-Q-T	ABLS-3.579545MHZ-R180-D-4-F-T	ABLS-3.6864MHZ-18-R180-A-F-T	ABLS-11.0592MHZ-30-R050-B-4-F-T	ABLS-22.1184MHZ-20-R040-B-4-F-T
Description	Parallel - Fundamental Quartz Crystal, 11.0592MHz Nom, ROHS COMPLIANT, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 3.579545MHz Nom, ROHS COMPLIANT, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom, ROHS COMPLIANT, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 11.0592MHz Nom, ROHS COMPLIANT, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 22.1184MHz Nom, ROHS COMPLIANT, SMD, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon
package instruction	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL	TAPE AND REEL	AT-CUT CRYSTAL; TAPE AND REEL	AT-CUT CRYSTAL; TAPE AND REEL	AT-CUT CRYSTAL; TAPE AND REEL	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW
frequency stability	0.005%	0.01%	0.005%	0.005%	0.005%	0.005%
frequency tolerance	30 ppm	30 ppm	30 ppm	50 ppm	30 ppm	30 ppm
JESD-609 code	e3	e3	e3	e3	e3	e3
load capacitance	30 pF	18 pF	18 pF	18 pF	30 pF	20 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	11.0592 MHz	10 MHz	3.579545 MHz	3.6864 MHz	11.0592 MHz	22.1184 MHz
Maximum operating temperature	70 °C	125 °C	85 °C	60 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-55 °C	-40 °C	-10 °C	-20 °C	-20 °C
physical size	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)
Series resistance	50 Ω	50 Ω	180 Ω	180 Ω	50 Ω	40 Ω
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
