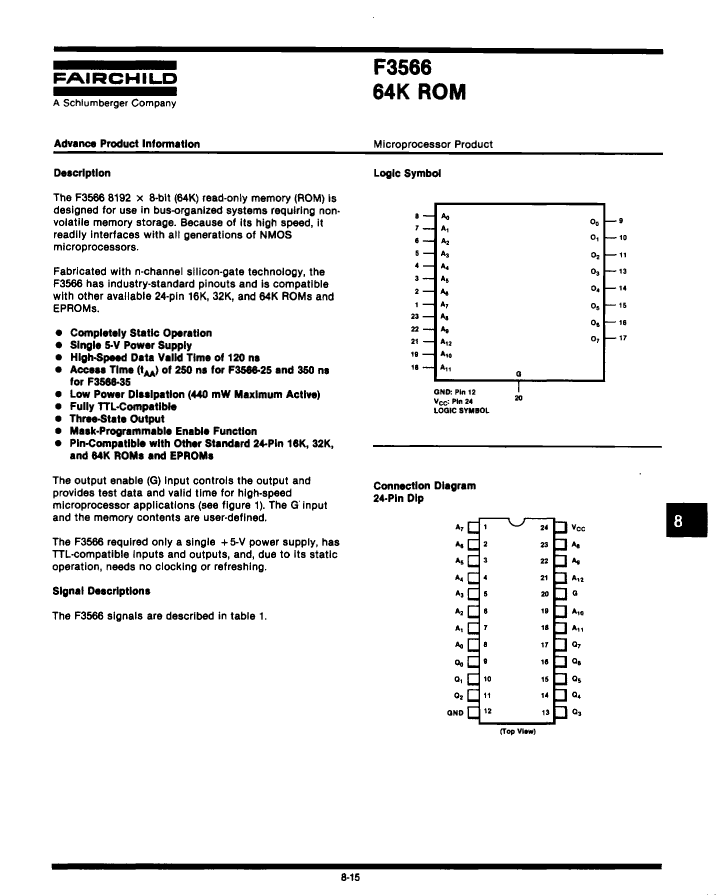

Preview

F356635S: DescriptionMASK ROM, 8KX8, 350ns, NMOS, CDIP24, CERAMIC, DIP-24; Categorystorage storage; File Size41KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F356635S Overview

MASK ROM, 8KX8, 350ns, NMOS, CDIP24, CERAMIC, DIP-24

F356635S Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	350 ns
JESD-30 code	R-GDIP-T24
length	32.0675 mm
memory density	65536 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	24
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
organize	8KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	6.37 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

Preview

Download Datasheet

View All

F356635S Related Products

	F356635S	F356635P	F356625S	F356625P
Description	MASK ROM, 8KX8, 350ns, NMOS, CDIP24, CERAMIC, DIP-24	MASK ROM, 8KX8, 350ns, NMOS, PDIP24, PLASTIC, DIP-24	MASK ROM, 8KX8, 250ns, NMOS, CDIP24, CERAMIC, DIP-24	MASK ROM, 8KX8, 250ns, NMOS, PDIP24, PLASTIC, DIP-24
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,	DIP,
Contacts	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	350 ns	350 ns	250 ns	250 ns
JESD-30 code	R-GDIP-T24	R-PDIP-T24	R-GDIP-T24	R-PDIP-T24
length	32.0675 mm	31.75 mm	32.0675 mm	31.75 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	24	24	24	24
word count	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	8KX8	8KX8	8KX8	8KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	6.37 mm	4.698 mm	6.37 mm	4.698 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	NMOS	NMOS	NMOS	NMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
