PARS314.00K02R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> PARS314.00K02R

PARS314.00K02R: Description1-Port Saw Resonator, 314MHz Nom; CategoryPassive components Crystal/resonator; File Size69KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

PARS314.00K02R Overview

1-Port Saw Resonator, 314MHz Nom

PARS314.00K02R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1534255453
Reach Compliance Code	compliant
YTEOL	0
Crystal/Resonator Type	1-PORT
Frequency tolerance(MHz)	0.15
Insertion loss	2.5 dB
Installation features	SURFACE MOUNT
Nominal operating frequency	314 MHz
Parallel capacitor	3.2 pF
physical size	L5.5XB3.8 (mm)/L0.22XB0.15 (inch)
surface mount	YES

Preview

Download Datasheet

View All

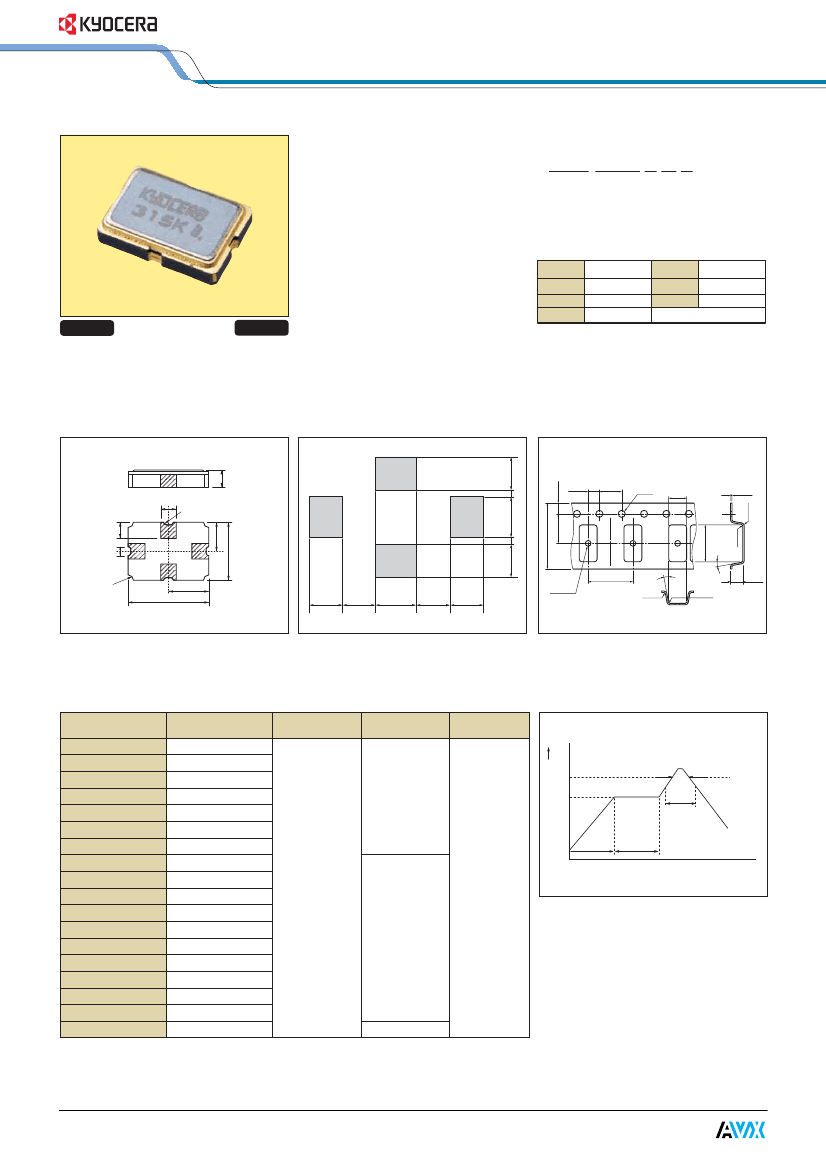

SAW Resonators (SMD)

PARS Series

Features

• Frequency Range 300 to 480MHz

• 1 Port Type SMD Resonator

• Small Size (5.5×3.8mm)

• Low Profile (1.5mm max)

• SMT Ceramic Package

• High Reliability Sealing

• Excellent Temperature Characteristics

•

+100ppm

−250ppm

(−40 to 85°C)

How to Order

PARS 315.00 K 00 R

ert

qSeries

wResonant

Frequency(MHz)

eMarking

Code

rFreg.tolerance

or Custom Spec

11≤

±250kHz

±200kHz

±150kHz

Custom Spec.

10≥

±100kHz

±75kHz

Tolerance

Applications

Pb Free

RoHS Conforming

• Keyless Entry Systems

• Garage Openers

• Security Systems

tPackageing

R : Tape & Reel(2000pcs/Reel)

Dimensions

1.5 max

(Unit : mm)

Recommended Land Pattern

(Unit : mm)

Packaging

(Unit : mm)

1.5

1.75±0.1

0.15

2.0±0.1

4.0±0.1

φ1.5

+0.1

−0

3.9±0.1

0.3±0.05

0.2 max

4-1.0±0.2

1.5

4-1.0±0.2

4-R0.15

12.0±0.3

0.15

4-0.6±0.2

3.8±0.2

4-R0.15

2.75±0.2

5.5±0.2

: Hot

: GND

: Hot

: GND

8.0±0.1

φ1.55±0.05

5° max

1.5

5.9±0.1

0.2 max

1.6±0.1

1.9±0.2

3.5±0.1

0.2 max

1.5

1.0

1.5

1.0

1.5

Specifications

Part Number

PARS303.00N00R

PARS303.33L00R

PARS303.82M00R

PARS303.87K00R

PARS304.30K00R

PARS304.45L00R

PARS310.00K00R

PARS314.00K00R

PARS314.50L00R

PARS315.00K00R

PARS320.65K00R

PARS345.00K00R

PARS418.00K00R

PARS423.22K00R

PARS432.92K00R

PARS433.42L00R

PARS433.92K00R

PARS479.50K00R

Resonant

Frequency(MHz)

303.000±0.250

303.330±0.250

303.825±0.250

303.875±0.250

304.300±0.250

304.450±0.250

310.000±0.250

314.000±0.250

314.500±0.250

315.000±0.250

320.650±0.250

345.000±0.250

418.000±0.250

423.220±0.250

432.920±0.250

433.420±0.250

433.920±0.250

479.500±0.250

Resonant

Loss(dB)

Recommended Temperature IR Reflow

Parallel

Capacitance(pF)

Temperature

Characteristics

(ppm/°C)

Temp.(˚C)

250

200

200˚C min.

15sec max.

Peak Temp.

230˚C±5˚C

4.0max

150

100

0 to 60sec

60 to 120sec

Time

180˚C min.

40 sec max.

2.5max

±8max

3.2max

2.3max

∗Please

contact your local sales office for custom frequency.
