5962-01-324-2475: DescriptionIC,LOGIC GATE,HEX INVERTER,HCT-CMOS,DIP,14PIN,CERAMIC; Categorylogic logic; File Size235KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962-01-324-2475 Overview

IC,LOGIC GATE,HEX INVERTER,HCT-CMOS,DIP,14PIN,CERAMIC

5962-01-324-2475 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	_compli
JESD-30 code	R-XDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Su	57 ns
Certification status	Not Qualified
Schmitt trigger	YES
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

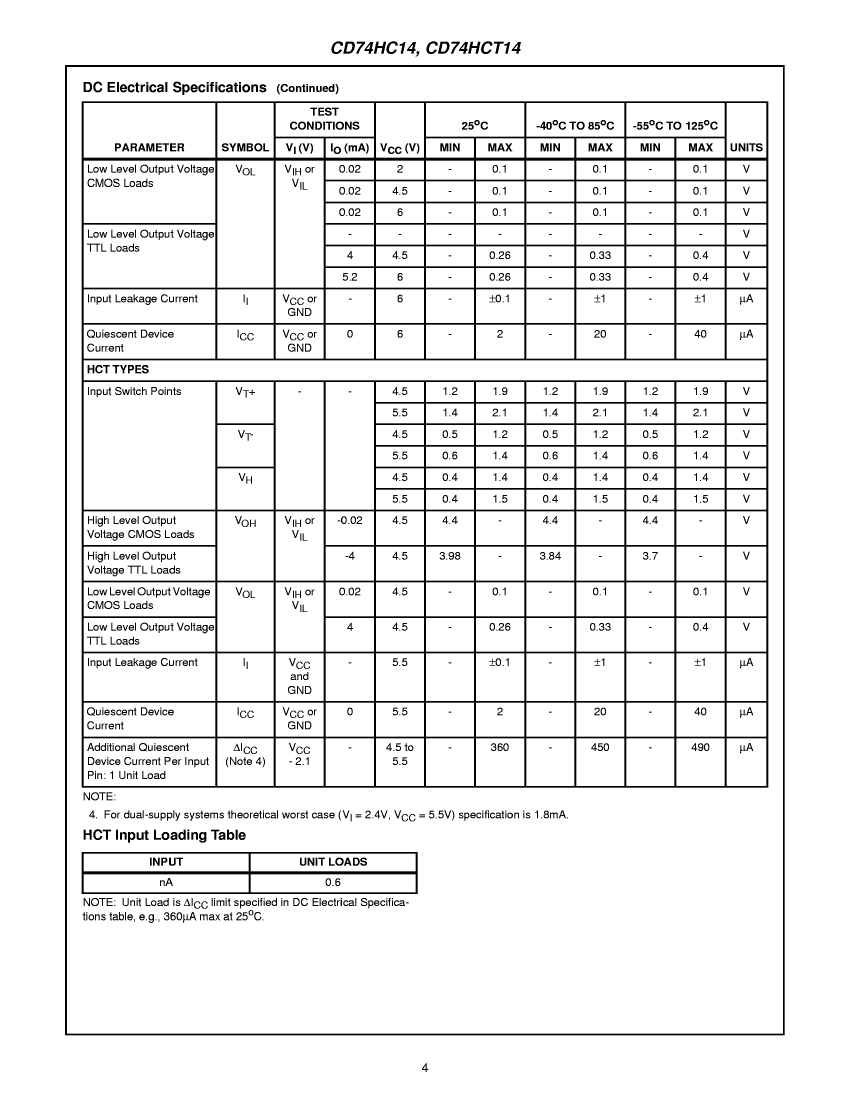

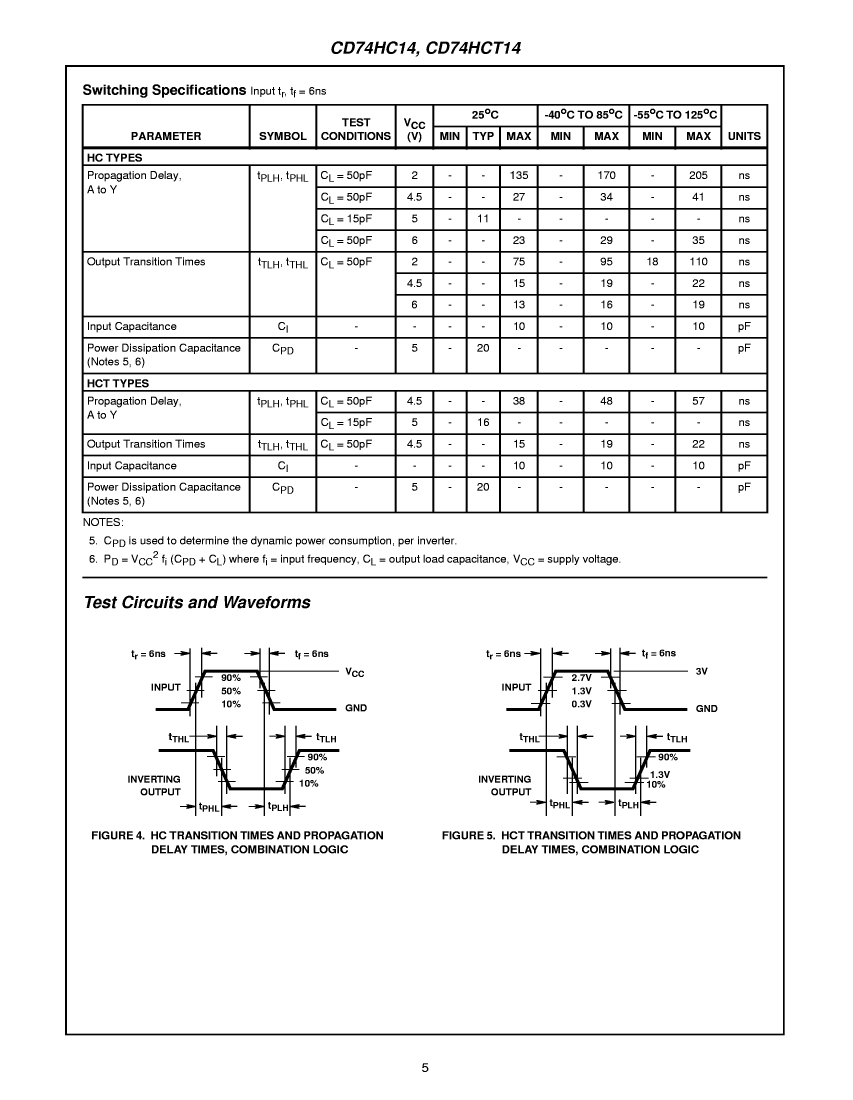

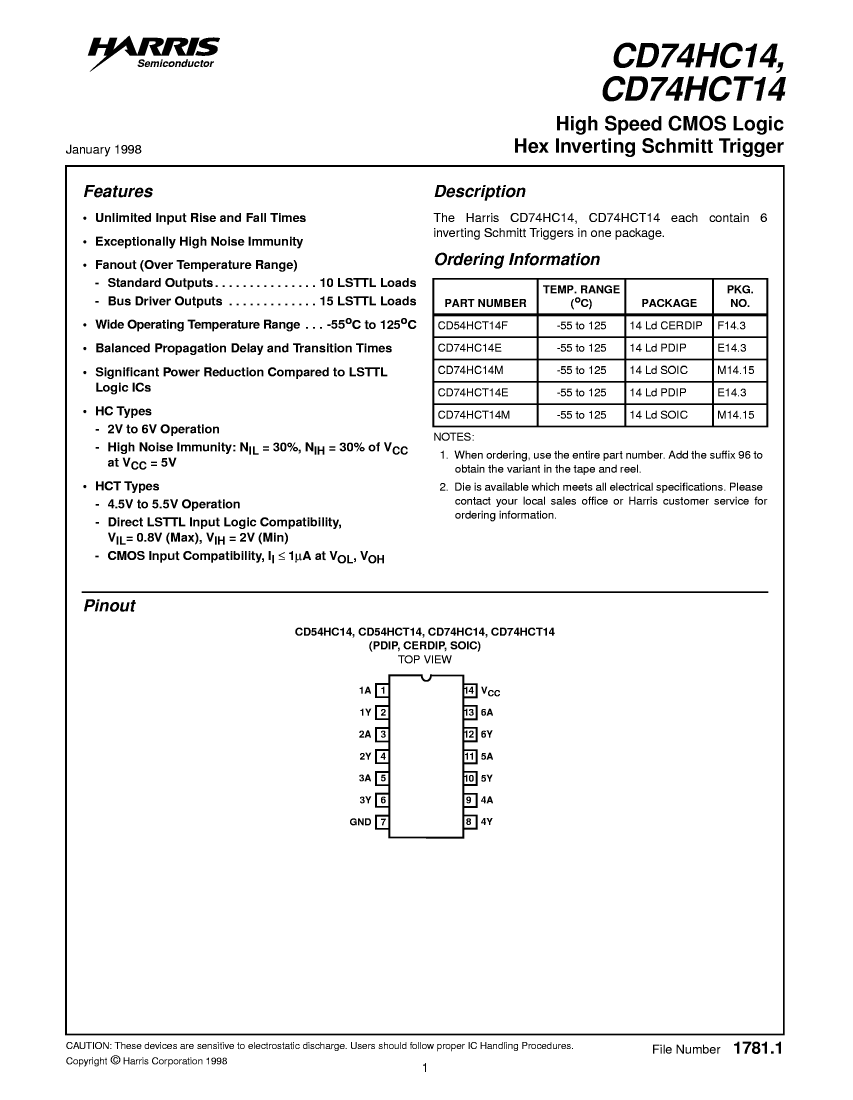

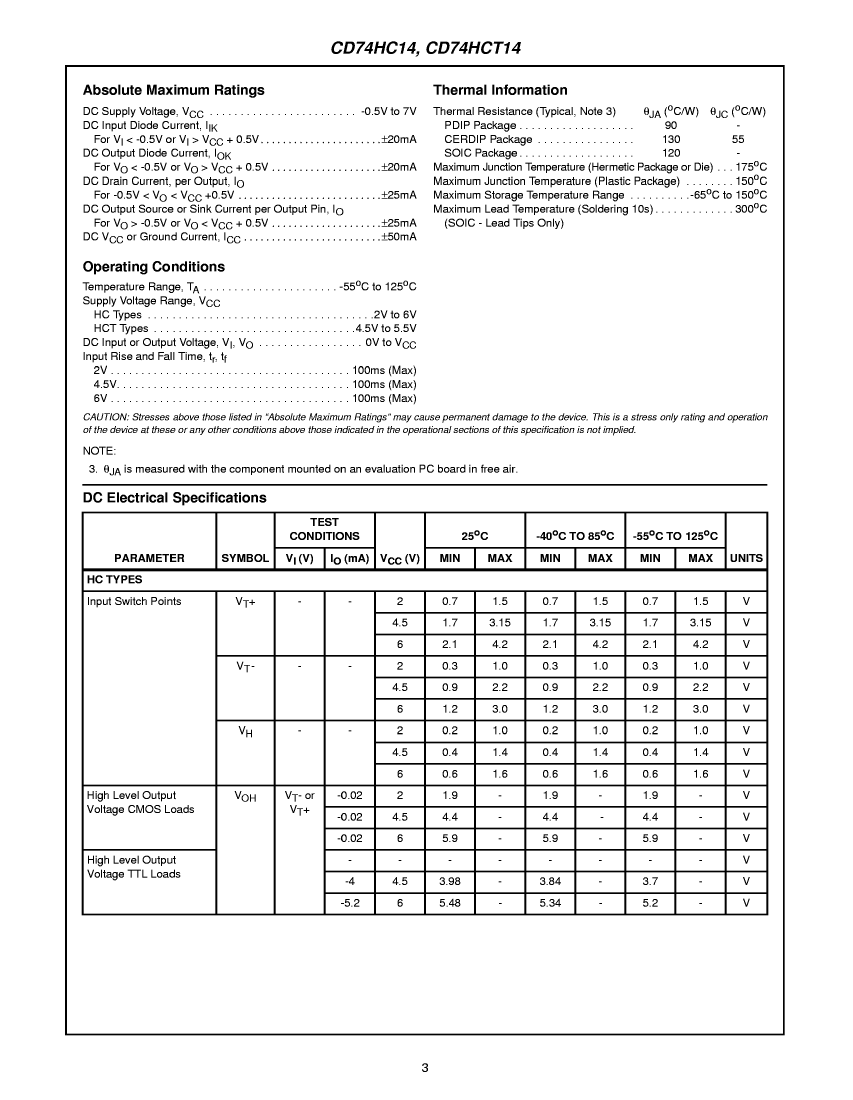

Preview

Download Datasheet

View All

5962-01-324-2475 Related Products

	5962-01-324-2475	IXFQ60N60X	CD74HCT14M96	CD74HC14M96	CD74HC14E	CD74HC14M	CD74HCT14E	CD74HCT14M
Description	IC,LOGIC GATE,HEX INVERTER,HCT-CMOS,DIP,14PIN,CERAMIC	isc N-Channel MOSFET Transistor	IC,LOGIC GATE,HEX INVERTER,HCT-CMOS,SOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,SOP,14PIN,PLASTIC	HC/UH SERIES, HEX 1-INPUT INVERT GATE, PDIP14	HC/UH SERIES, HEX 1-INPUT PDSO14, SOIC-14	IC,LOGIC GATE,HEX INVERTER,HCT-CMOS,DIP,14PIN,PLASTIC	HCT SERIES, HEX 1-INPUT PDSO14, SOIC-14
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	-	SOP, SOP14,.25	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	_compli	-	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
JESD-30 code	R-XDIP-T14	-	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
Load capacitance (CL)	50 pF	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	-	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.004 A	-	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of terminals	14	-	14	14	14	14	14	14
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	SOP	SOP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	DIP14,.3	-	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	-	5 V	2/6 V	2/6 V	2/6 V	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	YES	-	YES	YES	YES	YES	YES	YES
Nominal supply voltage (Vsup)	5 V	-	5 V	-	-	5 V	5 V	5 V
surface mount	NO	-	YES	YES	NO	YES	NO	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	-	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	-	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
JESD-609 code	-	-	e0	e0	e0	e0	e0	e0
Prop。Delay @ Nom-Sup	-	-	57 ns	41 ns	41 ns	41 ns	57 ns	-
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
